Model Number: AOT600
Wavelength: A: 1310nm, B: 1550nm
Operation Style: Full Duplex Communication
Output Power: >-5dBm
Dynamic Range: SM fiber: >120km
Connector Type: FC/PC
Power Supply: 2 * AA batteries or AC/DC adapter
Dimensions: 170mm * 97mm * 38mm
Weight: About 380g

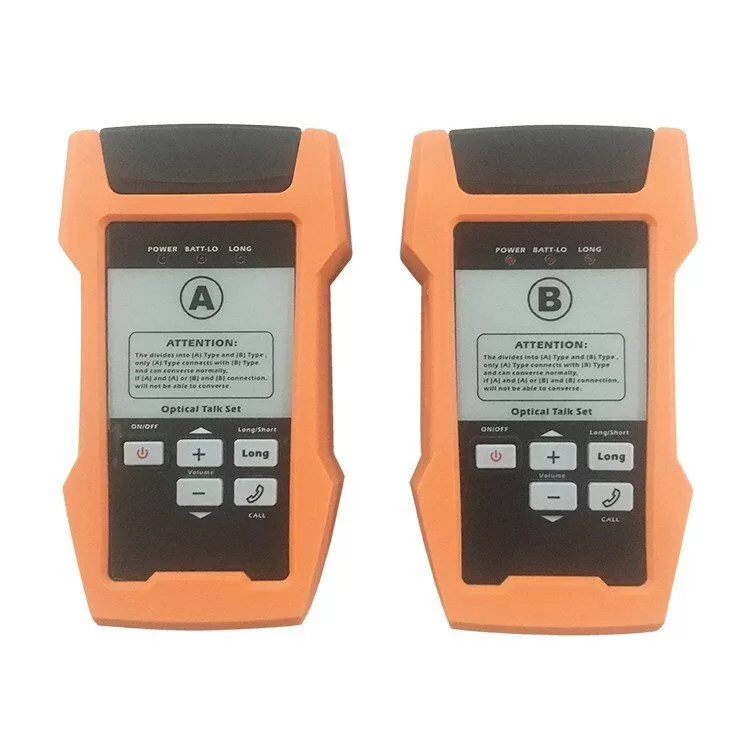

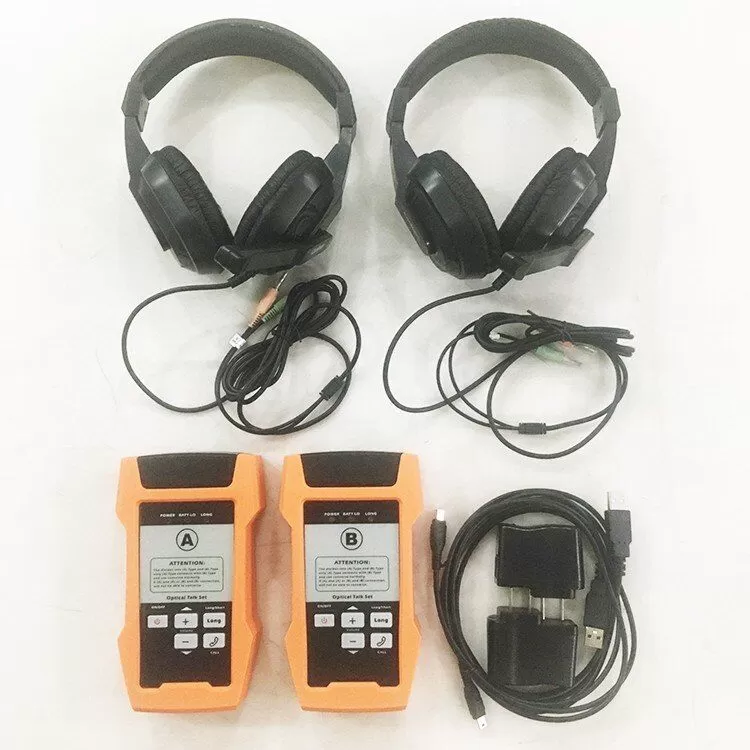

AOT600 Handheld Optical Fiber Talk Set Full Duplex Communication for FTTH Network Cable Test
Features:
* Talk by connecting with fiber
* Full-duplex communication with high quality conversation and very low background noise
* Light source capabilities
* Wide dynamicrange: 45dB;Large dynamicdistance: >120km
* Long/short mode for different distance
* Power autonomyof 70 hours
| Model | AOT600 |
| Wavelength | A: 1310nm, B: 1550nm |
| Operating Style | Full duplex communication |
| Output Power | >-5dBm |
| Fiber Type | SM |
| Dynamic Range* | SM fiber: 45dB |
| Dynamic Distance* | SM fiber: > 120 km |
| Connecting Adapter | FC / PC |
| Battery Charge | Optional |
| Operate Time | Above 12 hours |
| Power Supply | 2 * AA batteries or AC/DC adapter |
| Size(H*W*D) | 170mm * 97mm * 38mm |
| Weight | About 380g |
| Storage Temperature | -20 -- +60 ℃, < 90%RH |
| Operating Temperature | -10 -- +50 ℃, < 90%RH |
