Model Number: H-Connector assemblies
Insertion Loss: ≤0.35dB typical
Return Loss: ≤-65dB
Cable Diameter Range: 4.8mm to 7mm
Operating Temperature: -40 to 85℃
Axial Cable Retention: 445N(100lbs)
share:

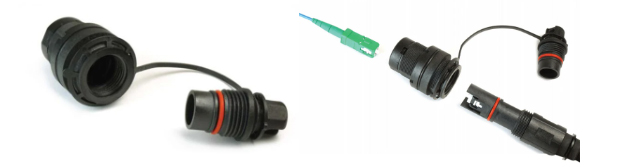

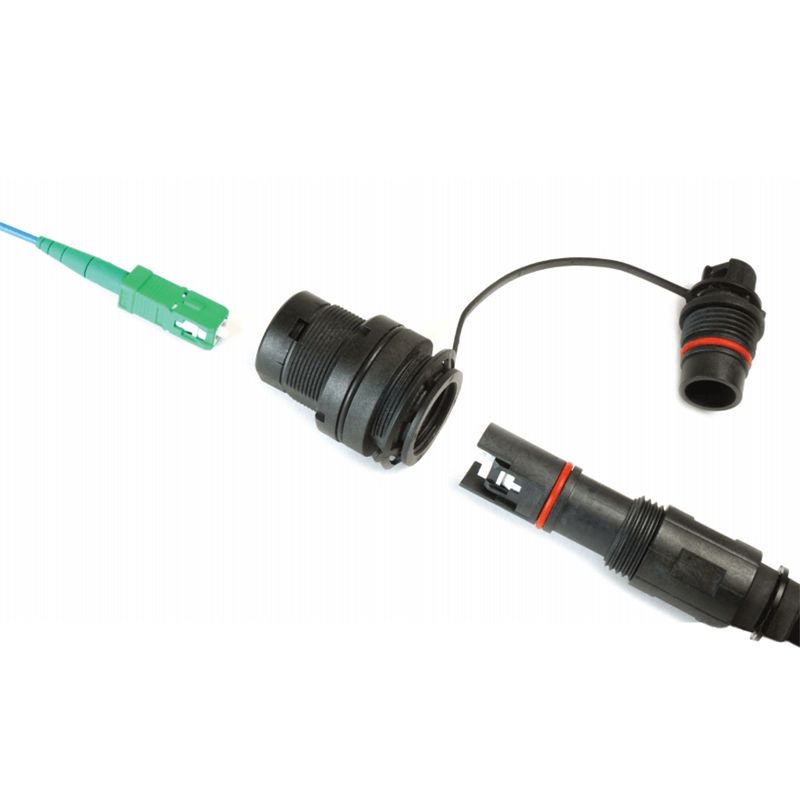

This is a robust andsealed connection solution for fiber to the home (FTTH)connectivity.SC/APC type connec-tion within a slim, sealed, threaded polymer housing allowingeasy connection to either a multi port terminal or in-lineextension receptecal.The SC/APC connectors mate to a standard adapter provid-ing a common interface for FTTx applications. Available with flat drop or traditional round style OSP cables,the H-Connector provides an ideal solution for direct burial,conduit or aerial installations.
Features:
IP-68 water and dust protection
Factory teminated for high perfomance
-40*C to +85C operating temperature
445 N (100 lbs) cable retention
Accepts 4.8mm to 7.0mm cable diameters

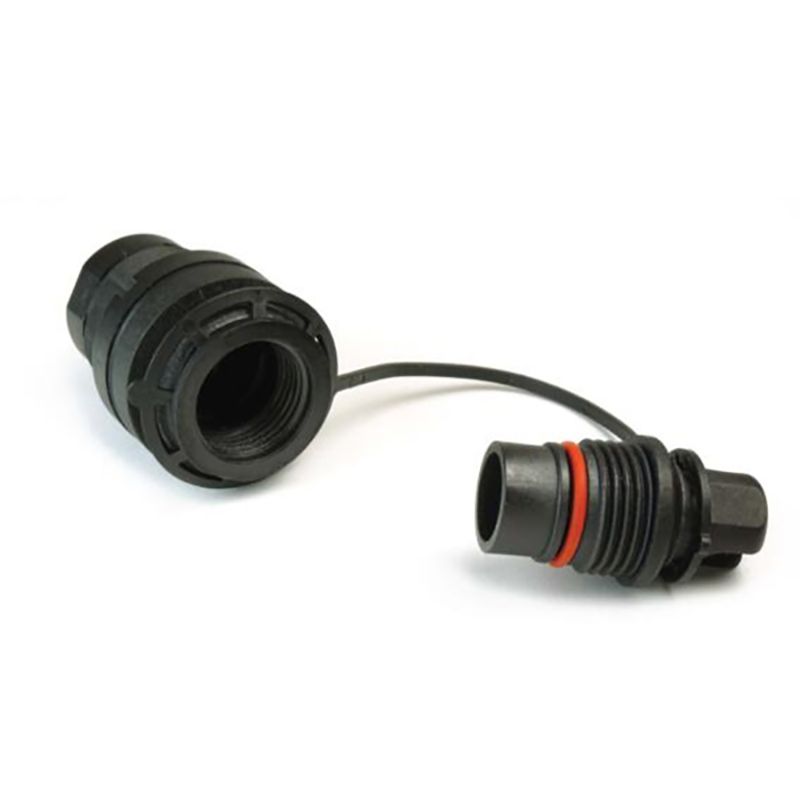

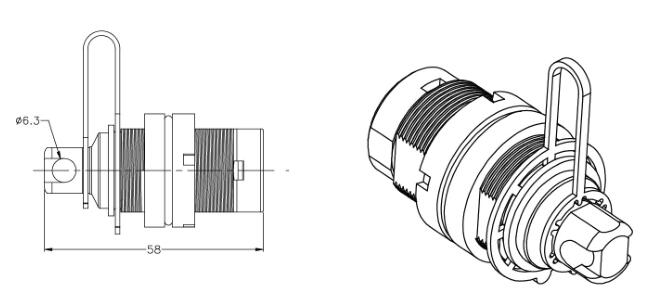

Low profle in-line receptade available
No insalltion tools required
100 minimum mating cycdles
Advantage:
Provides superior weather resistance for FTTA and otheroutdoor applications
Allows fexiblity to use factory terminated assemblies orpre-teminated or field installed assemblies.
Suitable for FTTA and other outdoor temperature extremes
Ensures functionality in harsh weather environments
Can be used with industry standard cable designs
Easily intall without special tooing
Threaded style coupling
Provides bend protection for inslal and long term use
nsertion Loss | ≤0.35dB typical |
Return Loss | ≤-65dB |
Cable Diameter Range | 4.8mm to 7mm |
Operating Temperature | -40 to 85℃ |
Axial Cable Retention | 445N(100lbs) |
