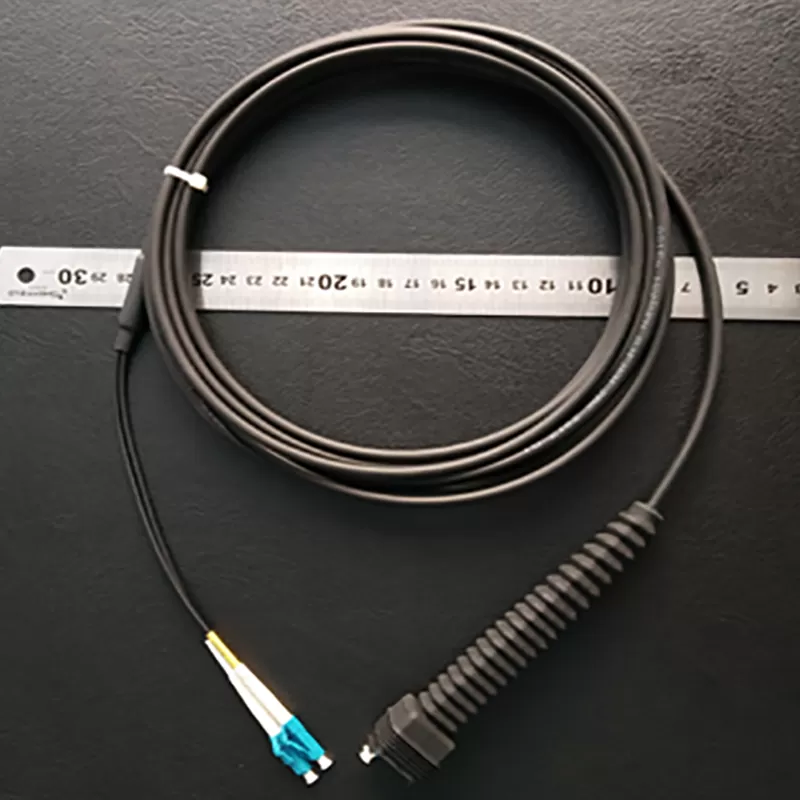

5.0 Outdoor Pull Far Flexible Steel Tube Armored Cable

5.0 Outdoor Pull Far Flexible Steel Tube Armored Cable

Armored fiber optic cable, armored fiber optic cable price, fiber optic armored cable, armored fiber optic patch cable, armored fiber optic cable single mode, fiber optic cable armored, Single Fiber Armored Indoor Fiber Optic Cable, 12 core armored cable, 4 core fiber optic cable armored, armored 6 core fiber optic cable, armored fiber cable, armored fiber optic cable, armored optical fiber cable, flexible armored cable, waterproof armored cable.

share:

Description Contact Us

Application:

1. 5G pull far micro station application
2. The optical fiber as
3. Common optical cable data center/switching center room


Characteristics:

1. Completely solved the optical fiber in the process of fiber optic cable processing and the use of the process of micro-bending loss.
2. The basic solution to the cable protection of rodents,  termites,  insects and other environmental requirements.
3. Basically solved the quality problem caused by improper operation during product placement. It can be said that the optical fiber in the product cannot be harmed by the force of hands.
4. Basically solved the maintenance problem in the operation process and achieved maintenance-free.
5. Basically solve the bottleneck of pipeline resources for laying optical cable products. When the armored optical cable and connector products of each meter flexible steel tube are laid,  the metal armor covered by the optical fiber is equivalent to laying a pipe at the same time,  which greatly reduces the construction difficulty and cost.
6. Maximized the development demand of fiber dense distribution.


Product Standard:

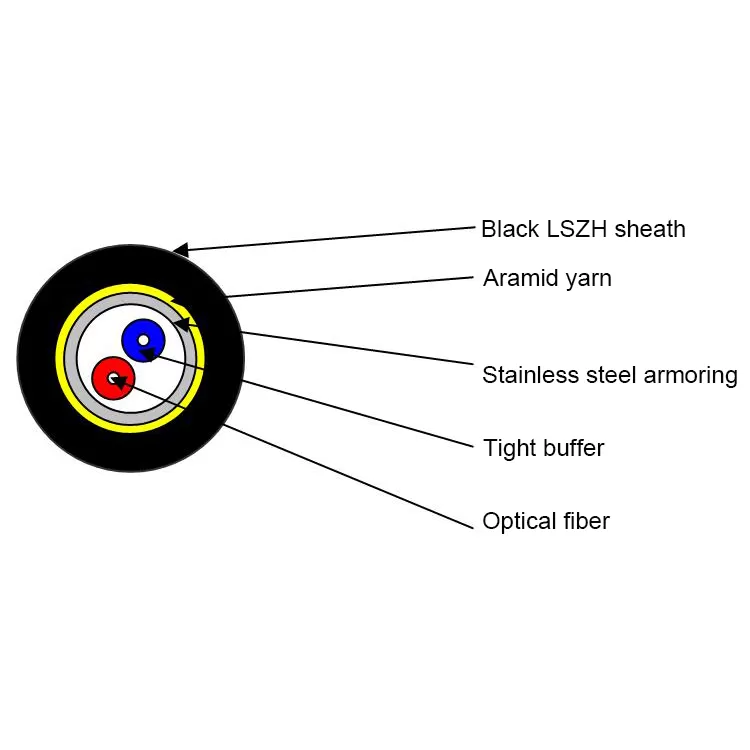

Cable typeCable diameter(mm)Armor diameter(mm)Tight sleeve fiber outside diameter(mm)
4.8GJFJKVΦ4.8±0.2Φ2.8±0.05Φ0.9



Product Feature:


Cable typeCable diameter(mm) Cable WeightKG/KM Minimum allowableTensile Strength(N) Minimum Bending Radius* Minimum allowable Crush LoadN/100mm
Short termLong termShort termLong term
4.8GJFJKVΦ4.8±0.227.0800400100503000
