Model Number: ftth flat drop cable
Fiber Count: 1 fiber(simplex)
Fiber Mode: Single mode: G657A1 9/125um
Strength: 1.6mm FRP
Cable Jacket ratings: LSZH
Cable Type: Flat Drop cable tonable
Diameter: 4.5*9.8mm
Temperature: -40°C to +85°C

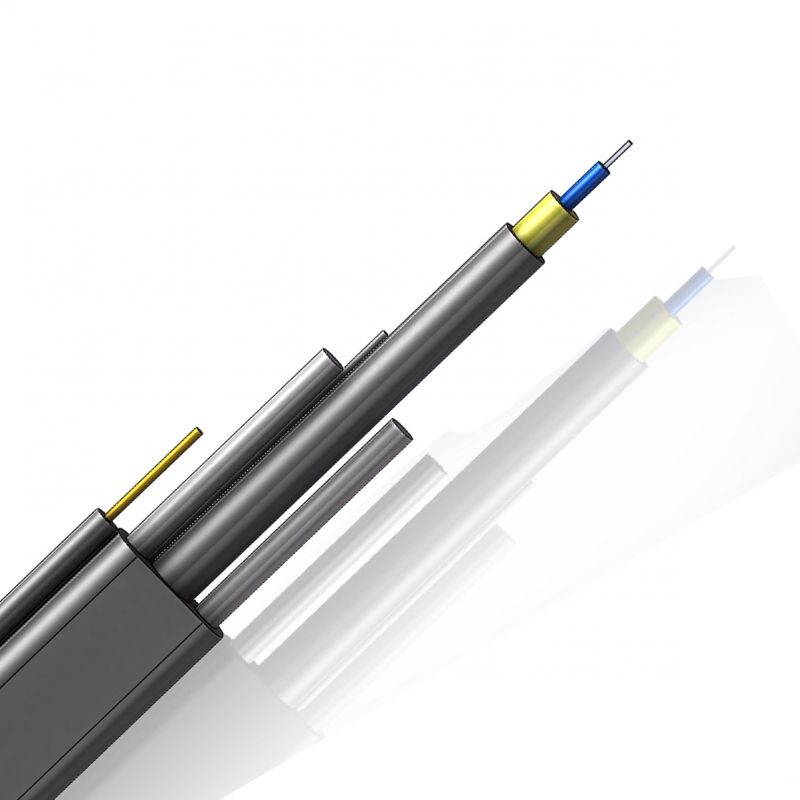

Corning Flat Drop Cable Toneable Cables provide the simple installation of standard ALTOS® Cable with an easy access, single-tube design. The toneable version can be clearly detected in underground installations with a toning conductor that can be easily separated. The small, lightweight cables offer exceptional crush resistance and handle a wide range of temperatures. Compatible with industry-standard hardware and available in preconnectorized assemblies, Flat Drop Cables are the perfect solution for drop applications. A drop cable access tool is also available, making installations faster, safer and easier.
Product Specifications：
Construction | |
Fiber Count（1） | 1fibers（simplex） |
Fiber Mode | Single mode: G.657A1 9/125µm |
Cable Jacket ratings | LSZH |
Cable Type | Flat Drop cable tonable |
Cable Jackets color | Black |
Cable Diameter | 4.5*9.8mm |
Temperature | -40°C to +85°C |
Fiber Parameters
No. | Items | unit | Performance Specification | |
G.657A1 | ||||
1 | Cladding Diameter | μm | 125.0±0.7 | |
2 | Core-cladding concentricity | μm | ≤0.5 | |
3 | Cladding non-circularity | % | ≤0.7 | |
4 | Coating Diameter | μm | 242±5 | |
5 | Cladding -coating concentricity | μm | <12.0 | |
6 | Mode field Diameter | 1310nm | μm | 8.6±0.4 |
1550nm | μm | 9.8±0.5 | ||
7 | Fiber Cutoff Wavelength | nm | λcc≤1260 | |
