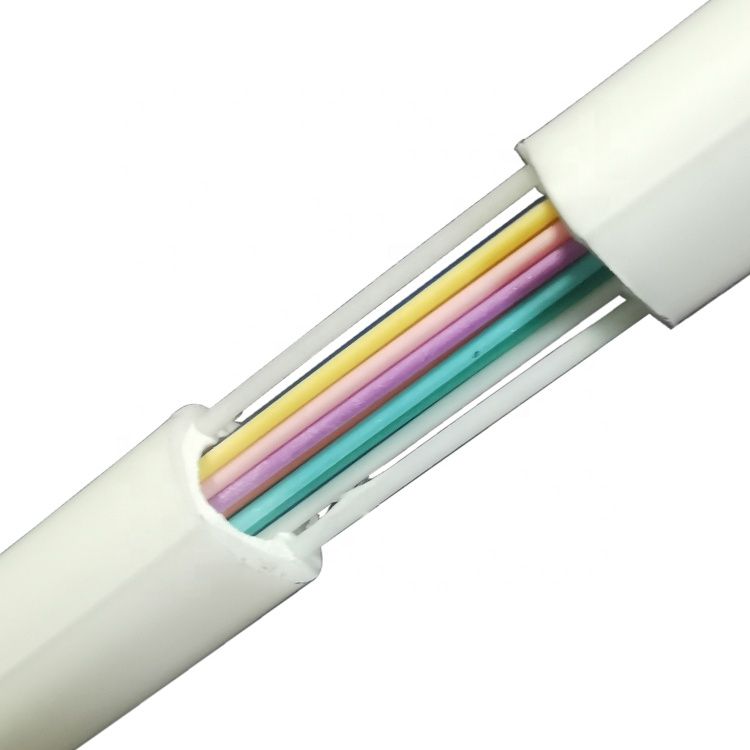

Model Number: Microtube elliptic distribution cable
Fiber count: 48 Core
Fiber Type: G652D/G657A1/G657A2
Strength member: FIberglass Reinforced Plastic (FRP)
Jacket Material: PE PVC LSZH
share:
Features:
1. Weight, low cost, and practicability;
2. Suitable for limited space field of the branch, indoor series;
3. Laid to facilitate construction operations;part and the cable;
4. Jacket use low smoke, halogen-free flame-retardant materials;
5. Prevent lightning and strong electric environment;
6. STEEL WIRE and FRP or KFRP strengthen the component materials.
Fiber Count | 48 | |
Optical fiber | Dimension | 250μm±15μm |
Color | Blue,Orange,Green,Brown | |
Micromodules | Dimension | 1.1±0.1mm |
Material | LSZH | |
Color | Blue,Orange,Green,Brown,Grey,White,Red,Black,Yellow,Purple,Pink,Aqua | |
Fiberglass bars | Dimension | 1.0mm |
Material | FRP | |
Out sheath | Dimension | 10.5mm±0.5mm |
Material | LSZH | |
Color | Ivory |
Application
1. Adopted to indoor distribution;
2. As pigtail of communication equipment;
3. Suitable for communication equipment;
4. Can be installed conveniently.
