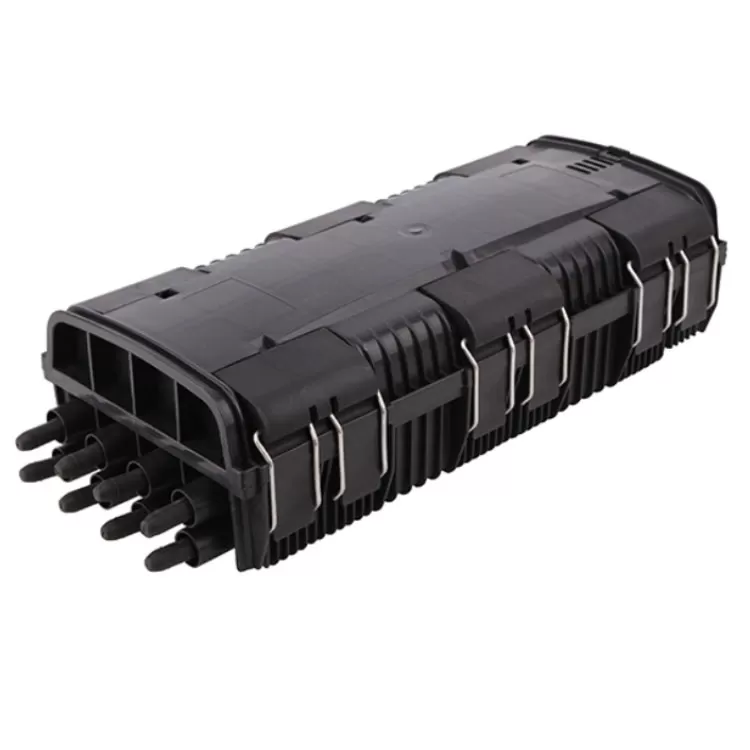

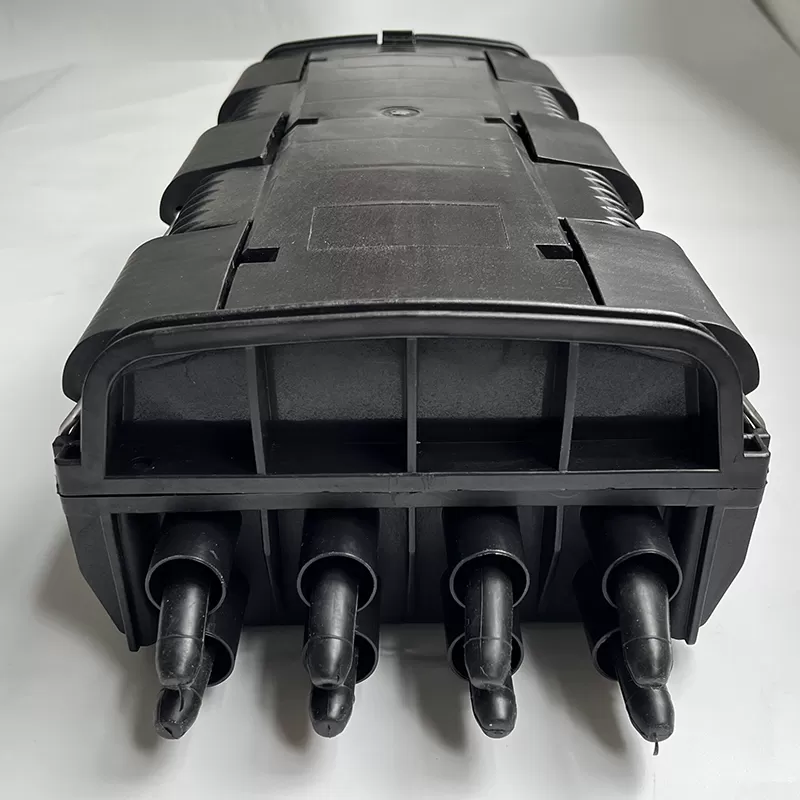

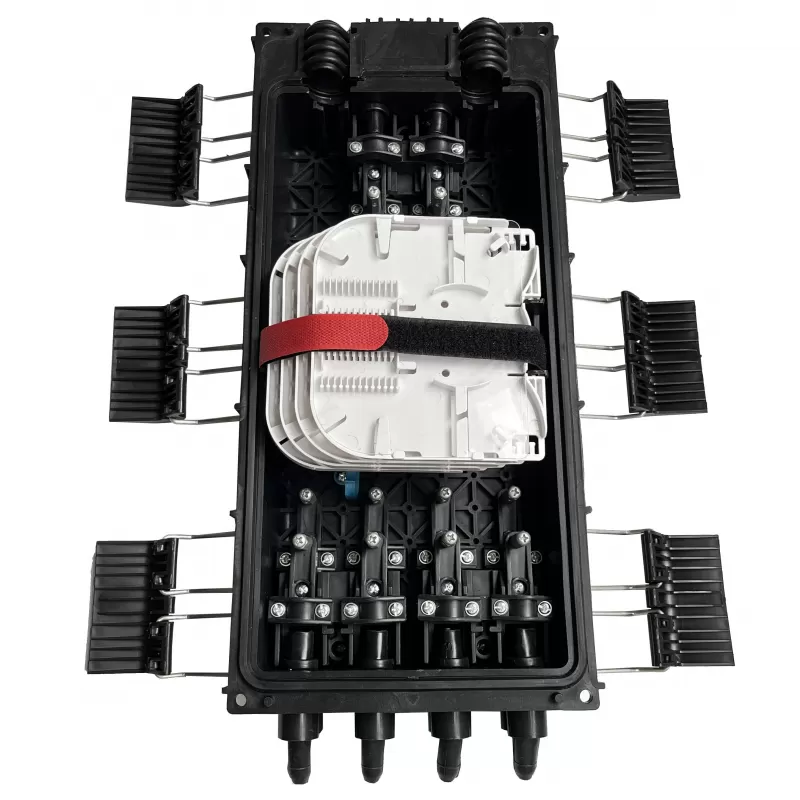

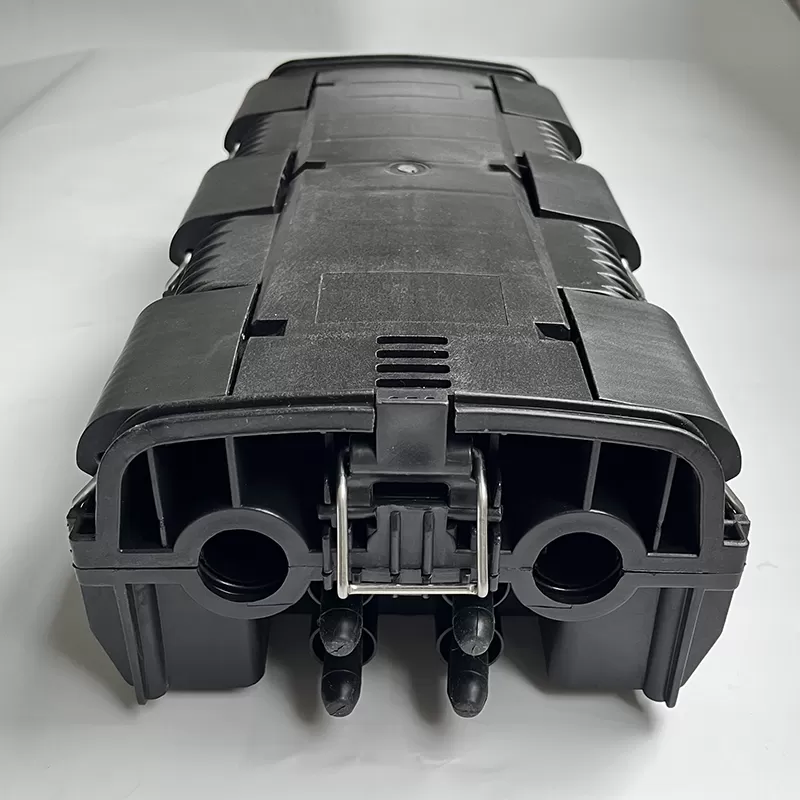

6 in 8 out 96 Core Horizontal Type Fiber Optic Splice Closure

6 in 8 out 96 Core Horizontal Type Fiber Optic Splice Closure

Model Number: WT-GDJ011-96C

Dimensions: 500*110*230mm

Material: PP+GF/PC

Number of Cable Entrance/Exit: 2/12

Capacity: 96cores

Ports: 2 inlet port φ25 + 4 inlet port 18mm 8 out port φ18mm

Tray: 24F/tray, max capacity 96F(4 trays)

Weight: 3kg

IP standard: IP65

Inquire Now Next Product

Description Contact Us

Horizontal type fiber optic splice closures are made of excellent engineering plastics, they are with different ports types, fitting different fiber counts.

Fiber optic splice closure is used in CATV, telecommunications and fiber optic networks. Our fiber splice closures feature the high mechanical performance, great aging resistant ability, excellent sealing performance.

Features
High quality engineering ABS plastics
The closure can be used in duct, buried, overhead..etc
Designed for ftth with adapter if need.
Fiber storage with big basket
Modular fiber management system
Cable diameter range: 8~20 mm
Sealing way of cables: Mechanical sealing by silicon rubber
Quality warranty:1 years
IP rating is IP68

Product name	Fiber Optic Splice Closure	Protection grade	IP67
Operating Temperature	-10ºC~70ºC	Product Size	460200120 mm
Working environment	Outdoor aerial & directly buried	Packing quantity	8 box per carton
Features	wet-proof,water-proof	Gross proudct	3 kg

Operation Conditions
Temperature	-40℃ -- 70℃
Humidity	≤85% at 30℃
Air Pressure	70kPa – 110kPa

Accessories:
