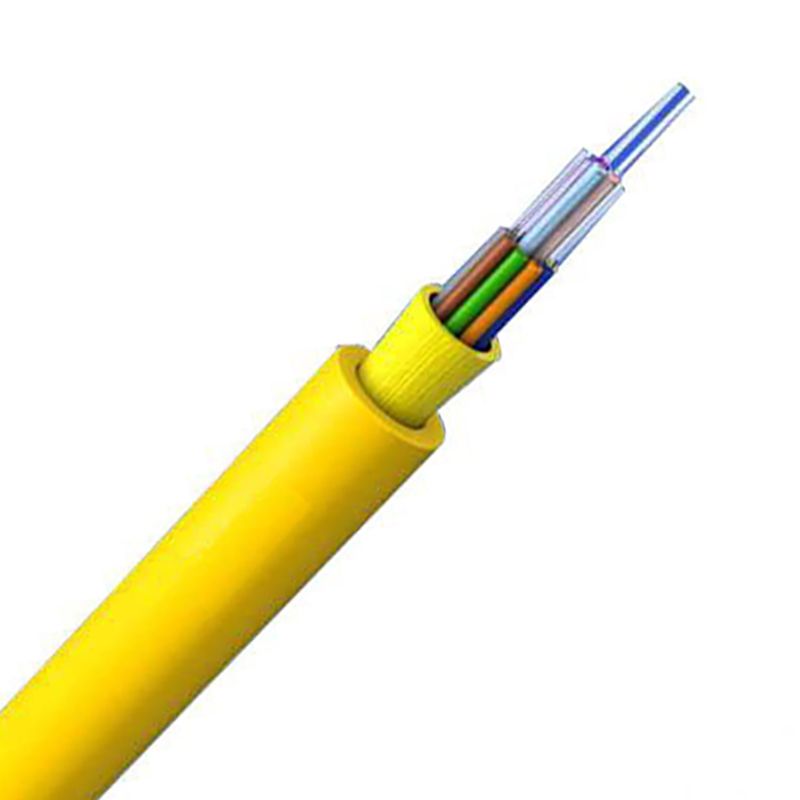

Indoor Fiber Optical Cable is 0.9mm buffer or 250um fiber, with YOFC, corning or customized fiber, widely used in fiber optic patchcord production and FTTH system. Distribution Riser Cable with 0.9mm buffer Indoor Fiber Optic
Application:
1. Used in indoor cabling, especially used as distribution cable;
2. Used as interconnect lines of equipments, and used in optical connections in optical communication equipment rooms and distribution frames;
3. Used in pigtails and patch cords.
Characteristics:
1. Good mechanical and environmental characteristics;
2. Flame retardant characteristics meet the requirements of relevant standards;
3. The mechanical characteristics meet the requirements of relevant standards;
4. Soft, flexible, easy to splice, and with big capacity data transmission;
5. Meet various requirements of market and clients.
For the Distribution Riser Cable with 0.9mm buffer, there are 2 structure
1~24C, use structure of type-I,
24C~144C,use structure of type-II
Parameter
| Cable Count | Out sheath Diameter | Weight | Minimum allowable Tensile Strength(N) | Minimum allowable Crush Load(N/100mm) | Minimum Bending Radius(MM) | Storage temperature | |||
| (MM) | (KG) | Short term | Long term | Short term | Long term | Short term | Long term | ℃ | |
| 4 | 5.0 | 19.0 | 130 | 440 | 200 | 1000 | 20D | 10D | -20 to +60 |
| 6 | 5.2 | 23.0 | 130 | 440 | 200 | 1000 | 20D | 10D | |
| 8 | 5.5 | 26.0 | 130 | 440 | 200 | 1000 | 20D | 10D | |
| 12 | 6.5 | 36.5 | 200 | 660 | 200 | 1000 | 20D | 10D | |
| 16 | 7.5 | 44.5 | 200 | 660 | 200 | 1000 | 20D | 10D | |
| 24 | 8.2 | 54.5 | 200 | 660 | 200 | 1000 | 20D | 10D | |
| 36 | 9.0 | 72.0 | 200 | 660 | 200 | 1000 | 20D | 10D | |
| 48 | 10.5 | 90.0 | 200 | 660 | 200 | 1000 | 20D | 10D | |
Order Information
● Fiber type: SM 9/125, MM 50/125, 62.5/125, OM3, OM4
● Sheath Material: PVC,LSZH
● Sheath Color: Yellow, Orange, Aqua or Customized
