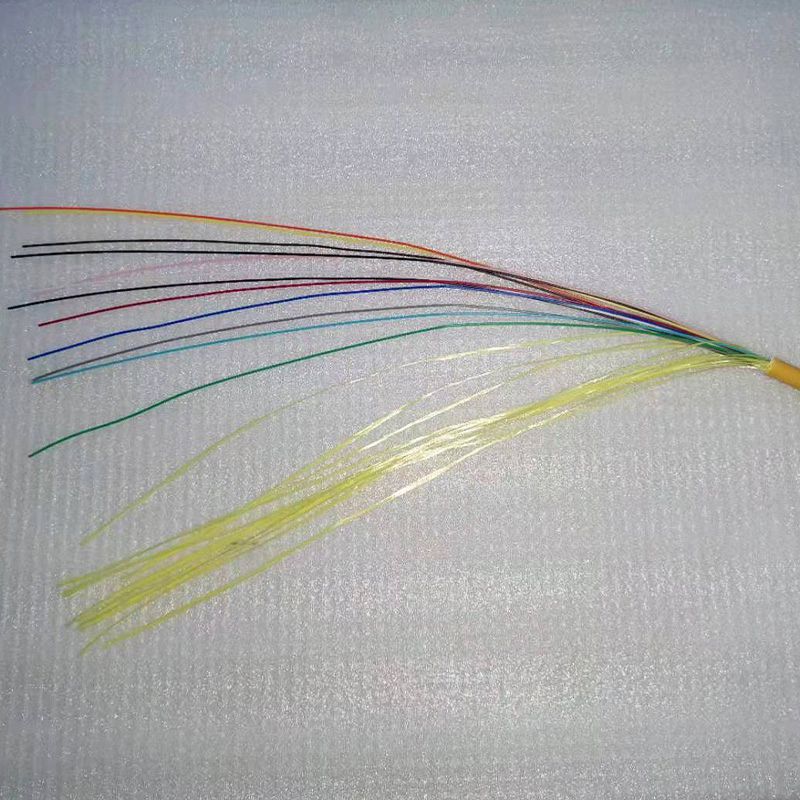

Model Number: indoor fiber optic cable
Number of Conductors: 1
Storage temperature: -20 to +60
Certificate: RoHS
Characteristics:
1. High strength kevlar yarn member
2. High quality tight buffered or loose tube
3. Soft and easy to strip
4. Round construction
| Cable Count | Out sheath Diameter | Weight | Minimum allowable Tensile Strength (N) | Minimum allowable Crush Load(N/100mm) | Minimum Bending Radius(MM) | Storage temperature | |||
| (MM) | (KG) | Short term | Long term | Short term | Long term | Short term | Long term | °C | |
| 2 | 1.6*3.3 | 4.4 | 60 | 120 | 200 | 1000 | 20D | 10D | -20 to +60 |
| 2 | 1.8*3.7 | 6.0 | 60 | 120 | 200 | 1000 | 20D | 10D | |
| 2 | 2.0*4.1 | 7.2 | 90 | 150 | 200 | 1000 | 20D | 10D | |
| 2 | 2.4*4.9 | 10.0 | 90 | 150 | 200 | 1000 | 20D | 10D | |
| 2 | 2.8*5.7 | 13.5 | 160 | 300 | 200 | 1000 | 20D | 10D | |
| 2 | 3.0*6.1 | 14.5 | 160 | 300 | 200 | 1000 | 20D | 10D | |
Application
1. Adopted to indoor distribution.
2. As pigtail of communication equipment
3. Suitable for communication equipment servrd
4. Can be installed conveniently and perated simply
