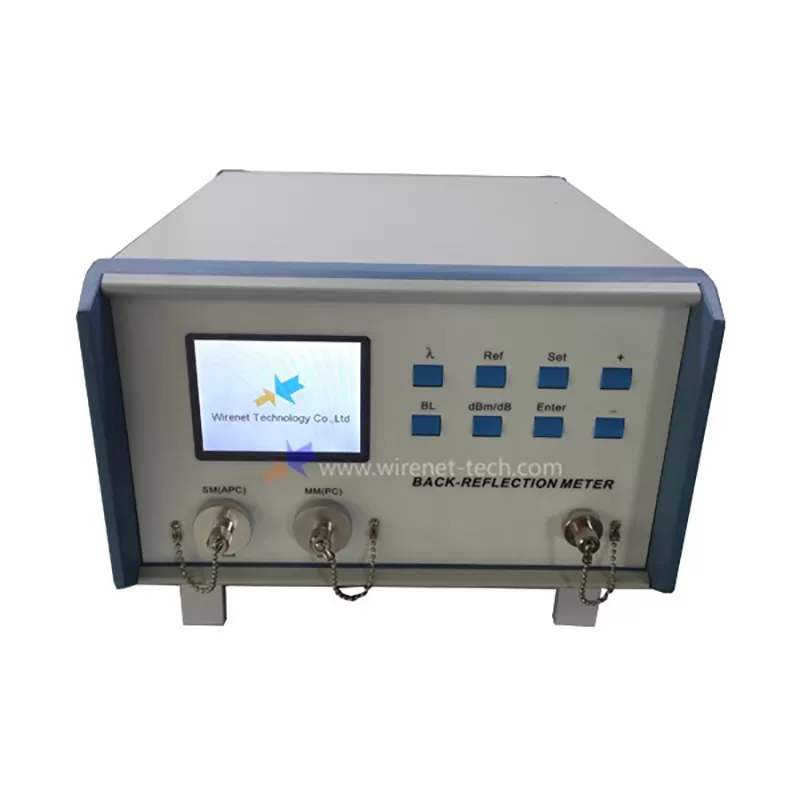

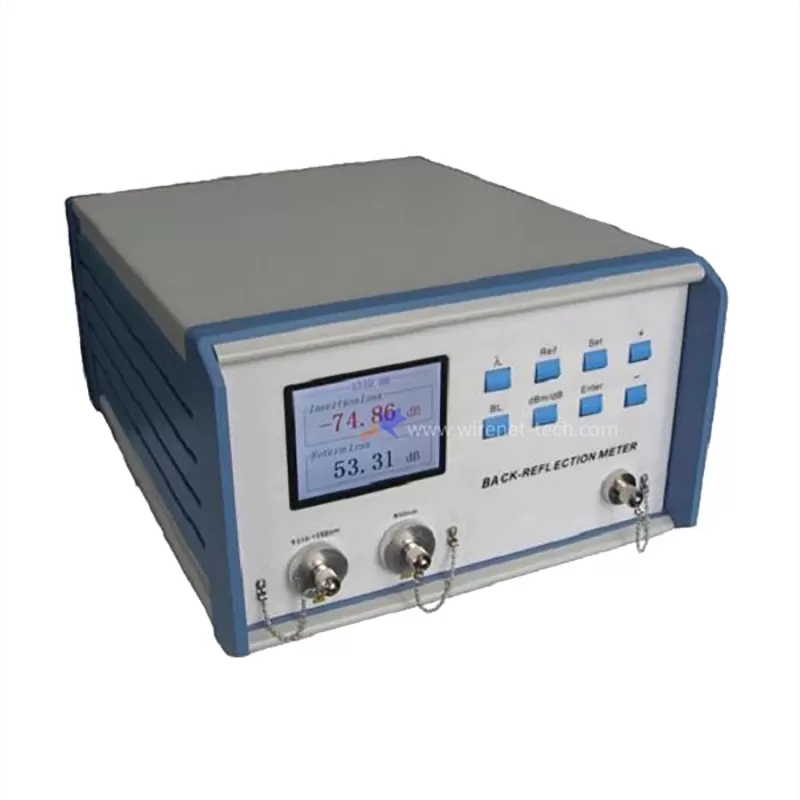

Insertion Return Loss Tester with Singlemode Light Source For fiber optic patch cord testing

            insertion/return loss tester is widely applied in the test of Insertion loss and return Loss in fiber optic cable, optical passive components and fiber optic communications system. With built-in optical isolators

in the lasers, with the most advanced microelectronics technology and high quality optical devices, and incorporated well-designed built-in software, to ensure the test station has a high stable output power, quick

testing speed and wide measurement range.Active interface be used in both laser source and power meter, easy to remove to clean Optical interface adaptors and photo detector or replace other types adaptors,

such as FC/SC/ST/2.5mm universal/1.25mm universal/MT-RJ etc. so that to be used in various types patch cords.

Characteristics:

1. "Outstanding measurement accuracy and repeatability

2. "Automatic wavelength setting with synchronization

3. "Dustproof and active Optical Interfaces, easy removal for clean and replacement

Application:

1. It is a high performance loss test station that is designed specially for Optical Passive Components production Test and Lab Test.

2. It combines three different working modes as a return loss meter, optical power and loss meter and a stable laser source in one test station.

Specification
