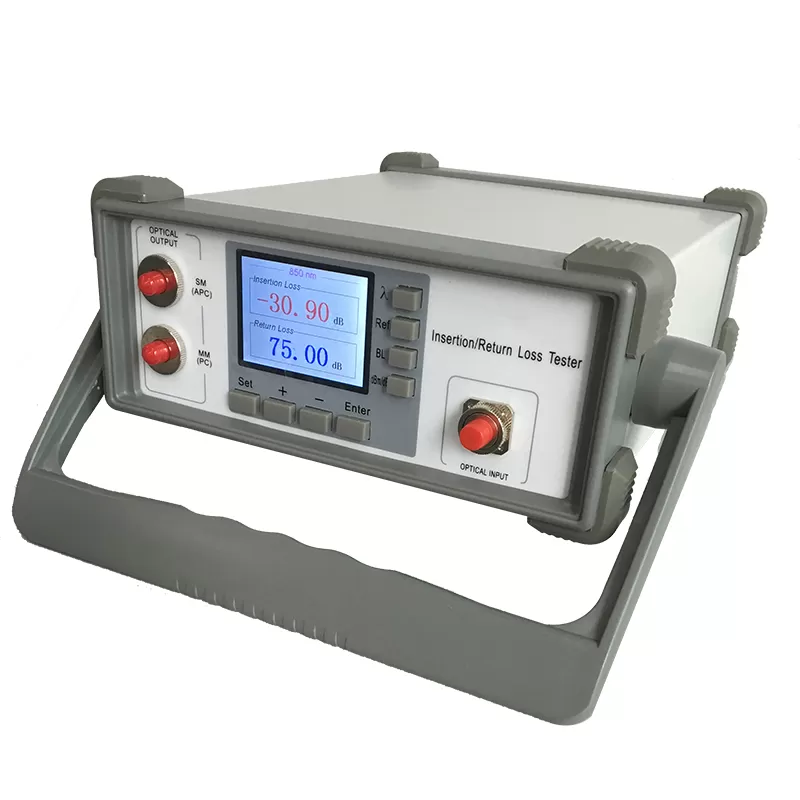

Table Top Insertion Loss and Return Loss Tester fiber optic patch cord testing machine

Table Top Insertion Loss and Return Loss Tester fiber optic patch cord testing machine

Model Number: WTY-B330

wave length: 1310/1550 nm

Calibrated Wavelength: 850/1310/1550 nm

Measurement Range: 0 ~ 75 dB

Test Accuracy: 0.25dB

Output Stability: 0.05dB/hour ( @ 25°C)

Optical Interface: FC/APC

Display Resolution: Non-linear:0.001dB;linear:0.001nw/μW/mW

Power Supply: AC 100-240V

Operating Temperature: -5~+55°C

Connector type: FC/SC/ST/ 2.5mm/universal /1.25mm adapter

Inquire Now

Description Contact Us

WTY-B330i insertion/return loss tester is widely applied in the test of Insertion loss and return Loss in fiber optic cable, optical passive components and fiber optic communications system.

Features:

* The unique insertion loss warning setting

* Different display colors to increase testing efficiency

* Linkage of the wavelength of the modes of optical light source and

* Optical power meter, reducing operation procedure

* Easy to clean with dismountable design adaptors Various types of test connector

Table Top Insertion Loss and Return Loss Test fiber optic patch cord testing machine

Optical Return Loss Test	Operating Wavelength	1310/1550nm
	Measurement Range	0 ~ 75 dB
	Calibrated Wavelength	1310/1550nm
	Test Accuracy	0.25dB
	Output Stability	0.05dB/hour ( @ 25°C)
	Optical Interface	FC/APC
Optical Insertion Loss Test	Calibrated Wavelength	850/1310/1550nm
	Measurement Range	+3 ~ -80 dBm
	Test Accuracy	0.25dB
	Display Resolution	Non-linear:0.001dB;linear:0.001nw/μW/mW
	Measurement mode	Linear and non-linear
	Connector type	Interchangeable, FC/SC/ST/ φ2.5mm/universal /φ1.25mm adapter
Overall specification	Power Supply	AC 100-240V
	Operating Temperature	-5°C~+55°C
	Dimension	260×265×140mm
Weight		3kg
