Model Number：Pre-terminal fast connector
Insertion loss：Less than 0.2dB
Return loss：more than 50dB
Diameter： 0.9mm
Application:
1,Patch panels
2,Distribution frames
3,Maintenance or emergency restoration of fiber networks
4,FTTH Outlets
5,Connection at the desk for LAN environments
Characteristics:
1, Factory-installed fiber
2, No epoxy or polishing required
3, Quick and easy fiber termination in the field
4, Eliminates cable excess length and pigtail splice storage
5, Cost effective
Description

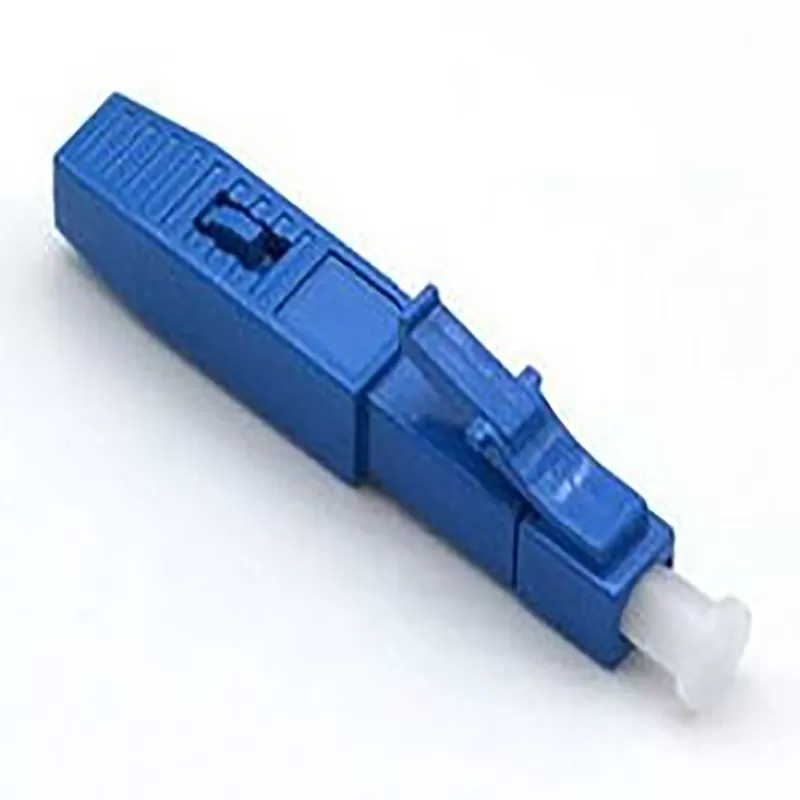

Field Assembly LC fast connector Pre-terminal type can provide a quick and easy termination of fibers in the field. Options are available for 900 micron allowing the installer to terminate and make connection in minutes at equipment and fiber patch panels. This connector system removes any requirement for epoxy, adhesives or costly curing ovens and polishing and fiber enderface inspection.
Parameter
Applicable for | 0.9mm indoor cable |
Optical fiber diameter | φ125um (657A&657B) |
Tight buffer diameter | φ250um |
Fiber mode | Single mode/Multimode |
Operation time | About 100s (exclude fiber cut) |
Insert loss | ≤0.3dB (1310nm & 1550nm) |
Return loss | ≥-45dB |
Fastening strength of naked fiber | ≥ 4N |
Tight clamping force cladding | ≥ 8N |
Tensile strength | ≥ 10N |
anti-pressing standing velvet (20N) | IL<=0.5db RL<=5B |
Mechanical durability (500 times) | IL<=0.5db RL<=5B |
Using temperature | -40°C~+75°C |
