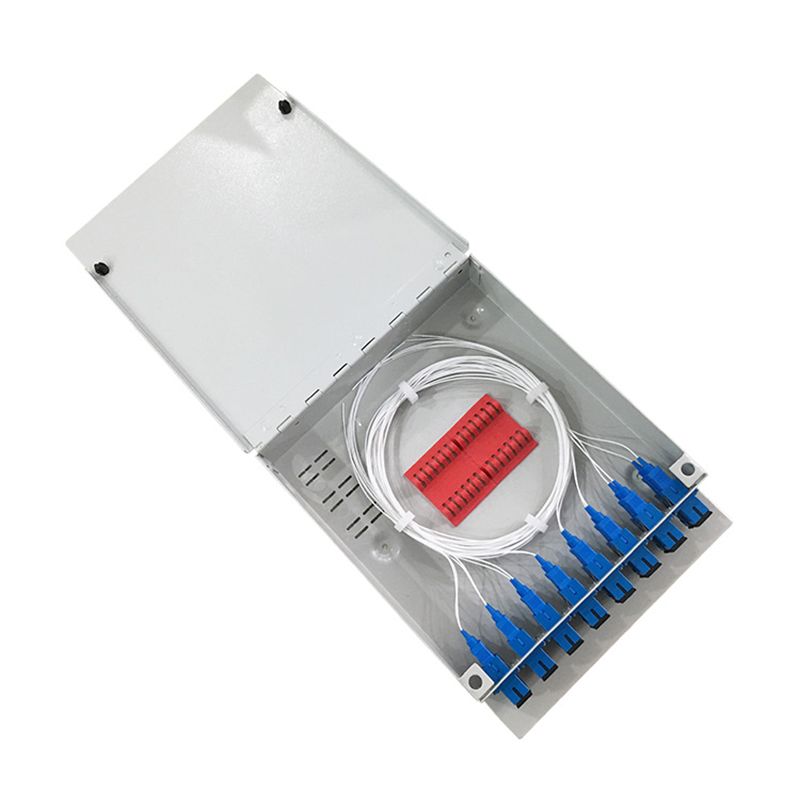

ODM. 16 Core SC Adapter fiber Optical Distribution termination Box

Fiber optic terminal box can be used for a variety of fiber optic cable distribution systems and terminal connections, especially for small network terminal distribution, to achieve terminal connection of cable, patch cords and pigtails.There are four type options, WT-OTB-K04, WT-OTB-K08, WT-OTB-K12, , WT-OTB-K16. Door buckle design is easy to switch, easy to install and manage cables,suitable for indoor wall used.

Features

 * Cold rolled sheet steel, electrostatic spraying
 * For all adapters installed: FC, SC, ST, LC, etc.
 * Containing 4 to 16 core fiber splcing module
 * 4 to 16 adapter can be installed
 * Clinching hinge and tighten design
 * Indoor use

Application

 * Applicable for pigtails, ribbon cable connection and bundle cable distribution
 * Used for wall hung installation
 * Suitable for fiber to the home, communications, cable TV systems

Model	Fiber counter	Dimension	Cable entry
WT-OTB-K04	4C	140x130x36 mm	1
WT-OTB-K08	8C	200x165x40 mm	2
WT-OTB-K12	12C	245x200x60 mm	3
WT-OTB-K16	16C	245x200x60 mm	3
