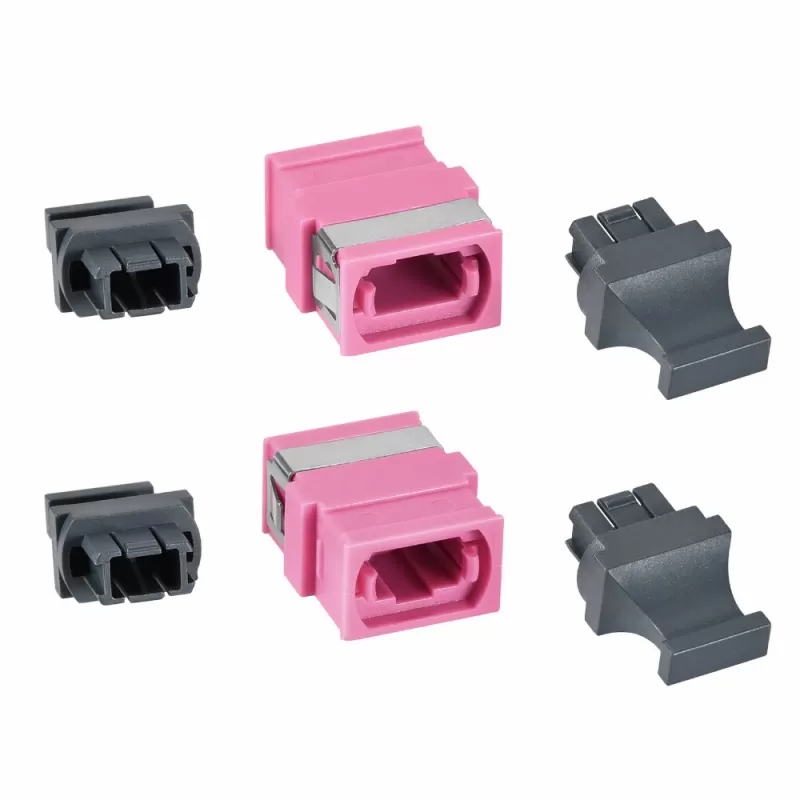

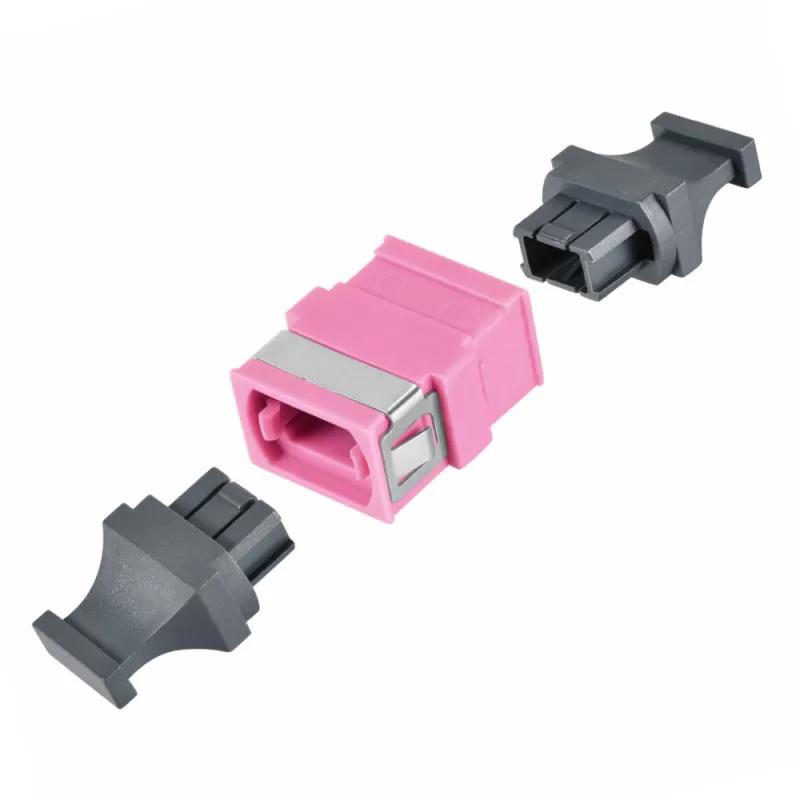

OM4 Optical Coupler Fiber Optic MTP / MPO Adapter

OM4 Optical Coupler Fiber Optic MTP / MPO Adapter

Model Number: OM4 MPO Adapter

Insertion Loss: ≤0.2dB

Return Loss: ≥45dB

Operating Temperature-40 ~ +75 ℃

share:

Description Contact Us

MPO/MTP adaptor provides alignment for a male and female MPO/MTP connector, its simple to use locking thread mechanism preventing accidental disconnection, this provides a very secure connection. The housing is available with MTP or SC footprint, aligned or opposed alignment keys, different colours and with options for flange or flangeless body.



Features:

1. Applied to 4-24 core SM or MM fiber connection

2. Two-piece type adapter can be customized opposed (UP-DOWN)key and aligned(UP-UP) key

3. Two-piece type adapter can be customized plastic housing and metal housing

4. One-piece type adapter is stable opposed(UP-DOWN) key

5. Plastic housing can be customized black, green, yellow, water blue, pink and other colors

6. Customized with flange and short flange adapter

7. SC-type MPO adapter compatible with SC panel

8. Standard shockproof spring, close to the panel installation

9. Comply with IEC61754-7-1, Telcordia GR-1435, ROHS standard


 Insertion Loss ≤0.2dB
 Return Loss ≥45dB
 Mating Durability ≤0.2dB typical change, 1000 times
 Operating Temperature -40 ~ +75 ℃
 Storage Temperature  -40 ~ +85 ℃
