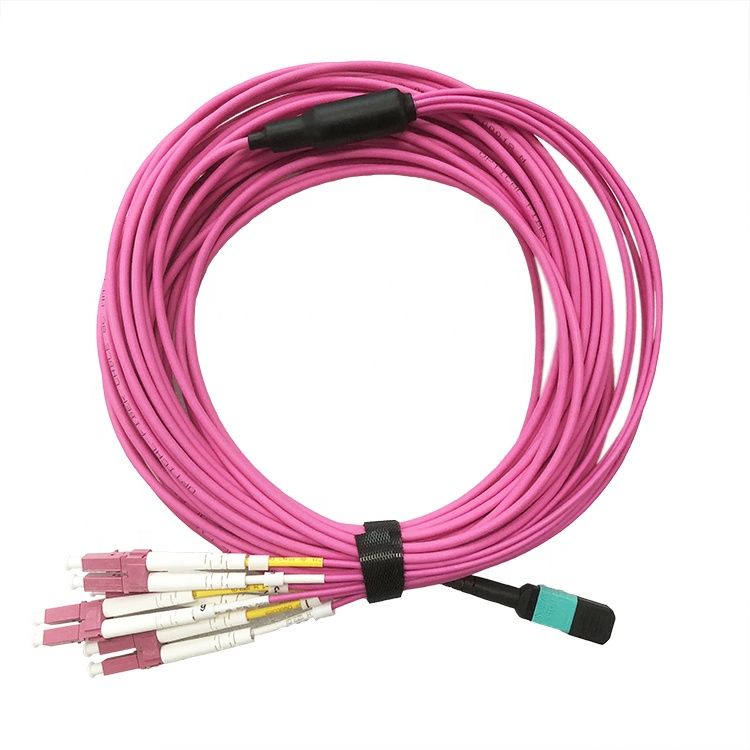

MPO to LC UPC Patch Cord OM4 Multi Fiber MPO MTP fiber optic patch cable

MPO to LC UPC Patch Cord OM4 Multi Fiber MPO MTP fiber optic patch cable

Model Number:  OM4 MPO Female to LC Patch cord

Connector Type:  MPO(Female), LC UPC

Insertion loss: <0.2dB

Operating temperature: -40~+80℃

Nominal outer diameter: 0.9mm/2.0mm/3.0mm

Fiber cable jack: PVC, LSZH

share:

Description Contact Us

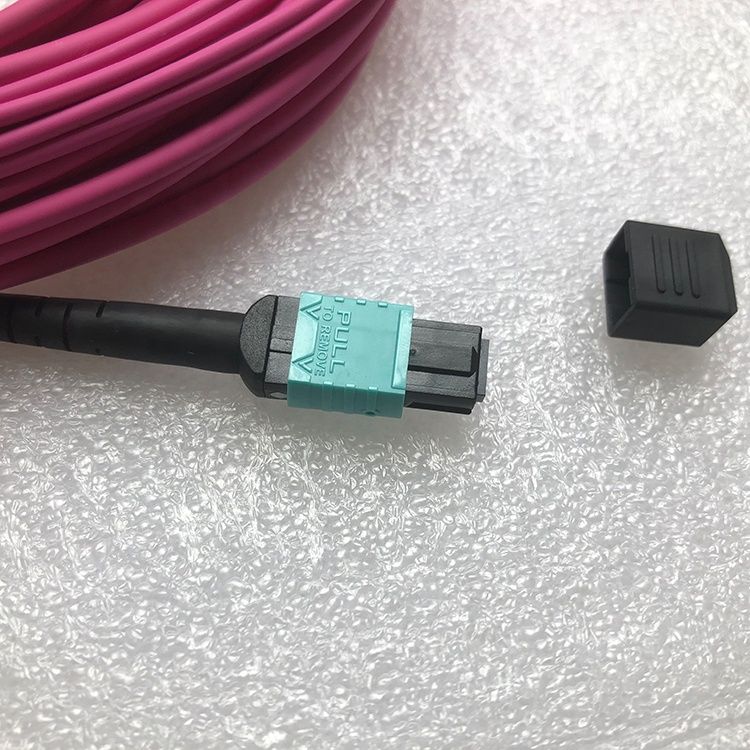

The MPO connector (known as multi-fiber push-on and also as multi-path push-on) is a multi-fiber connector defined according to IEC 61754-7 and TIA/EIA 604-5 that can accommodate up to 72 fibers in the tiniest of spaces, comparable to an RJ45 connector. MPO connectors are most commonly used for 12 or 24 fibers.


Application
1. CATV, and Multimedia
2. Active dvice termination
3. Telecommunication networks
4. Gigabit Ethernet
5. Interconnection for O/E modules
6. Data processing networks
7. Industrial and medical
8. Premise installations.
9. Optical Switch interframe connect
10. Asynchronous Transimission Mode(ATM)

Features
1. Low insertion loss and back reflection loss
2. Good echangeability
3. Good Durability
4. High temperature stability.
5. Standard: Telcordia GR-1435-CORE


Product Type
MTP-LC breakout cable for 10G-40G transition
Part number
MPO/F-LC-8F-OM4
Product Description
8 core Female MPO to LC OM4 Multimode fiber cable leads for QSFP
Fiber cores
8
Fiber type
OM4
Cable type
3.0mm minicore
Connector
1. Connector1 Female (As Default) 2. Connector 1: Male 3. Connector 2: LC/UPC,LC/APC, SC/UPC,SC/APC, FC/UPC,FC/APC
IL for MTP connetor(dB)
loss<0.7
Cable Jacket
OM4,3.0mm minicore LSZH, AQUA
