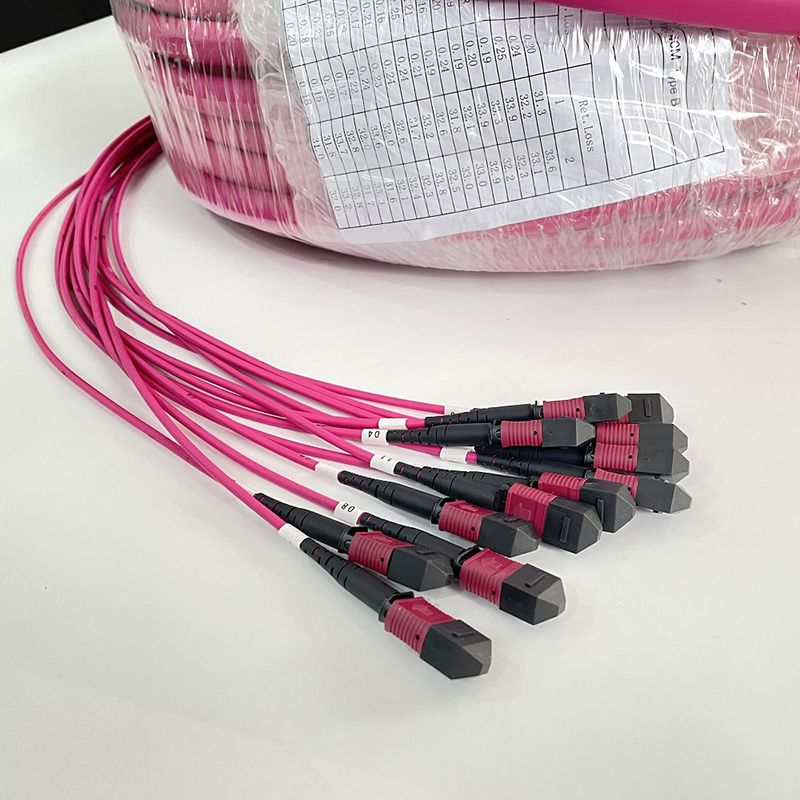

MPO to MPO Patch Cord OM4 Multi-fiber Fanout MTP MPO fiber optic patch cable

MPO to MPO Patch Cord OM4 Multi-fiber Fanout MTP MPO fiber optic patch cable

Model Number: OM4 MPO patch cord

Connector: 1. MPO Connector (Male)  2. MPO Connector (Male)

Jacket material: LSZH or plenum

Cable type: 3.0mm minicore

IL for MTP connector(dB): loss<0.7


share:

Description Contact Us

      The MPO connector (known as multi-fiber push-on and also as multi-path push-on) is a multi-fiber connector defined according to IEC 61754-7 and TIA/EIA 604-5 that can accommodate up to 72 fibers in the tiniest of spaces, comparable to an RJ45 connector. MPO connectors are most commonly used for 12 or 24 fibers.


Application
1. CATV, and Multimedia
2. Active dvice termination
3. Telecommunication networks
4. Gigabit Ethernet
5. Interconnection for O/E modules
6. Data processing networks
7. Industrial and medical
8. Premise installations.
9. Optical Switch interframe connect
10. Asynchronous Transimission Mode(ATM)

Features
1. Low insertion loss and back reflection loss
2. Good echangeability
3. Good Durability
4. High temperature stability.
5. Standard: Telcordia GR-1435-CORE


Product Type
MTP-MPO Male patch cord
Part number
OM4 MPO patch cord
Product Description
MPO to MPO 96 core 144 core OM4 Fanout MTP MPO fiber optic Patch Cord
Fiber cores
96F(12*8F)/144
Fiber type
OM4
Cable type
3.0mm minicore
Connector
1. Connector 1 Male
2. Connector 2: Male
IL for MTP connetor(dB)
loss<0.7
Cable Jacket
OM4,3.0mm minicore LSZH
