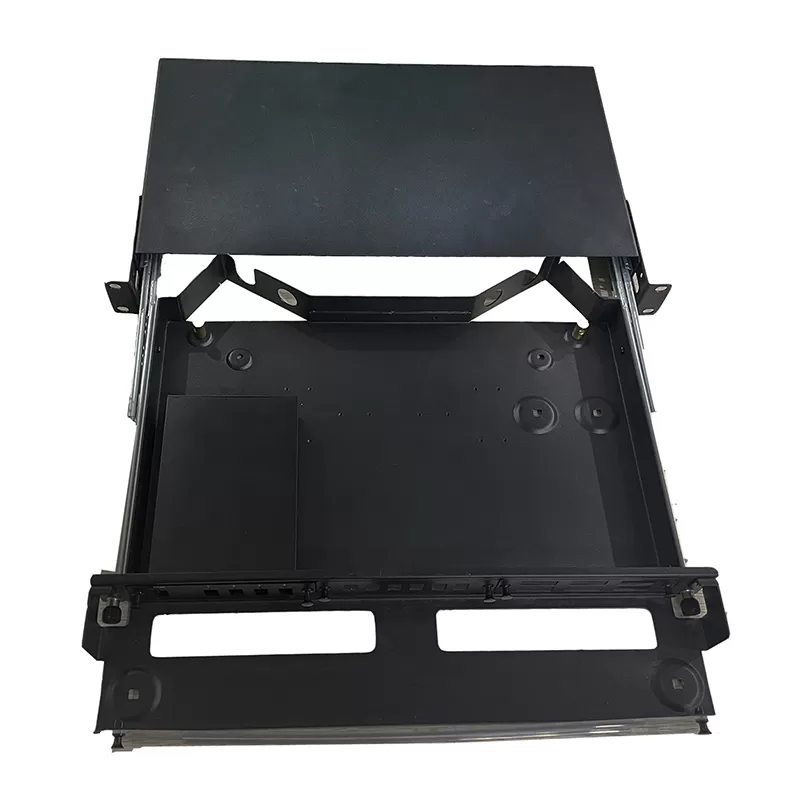

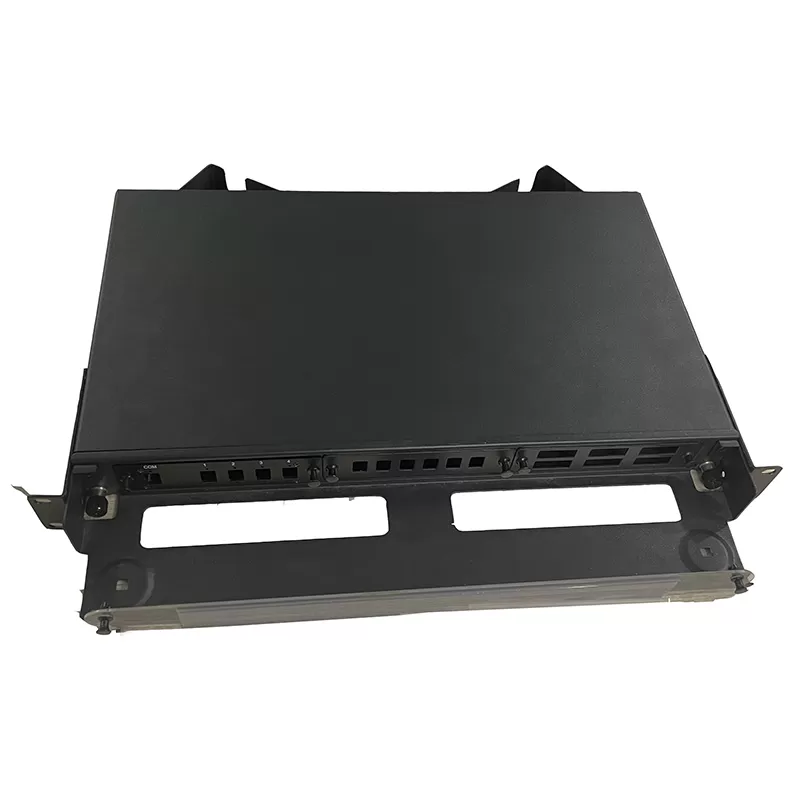

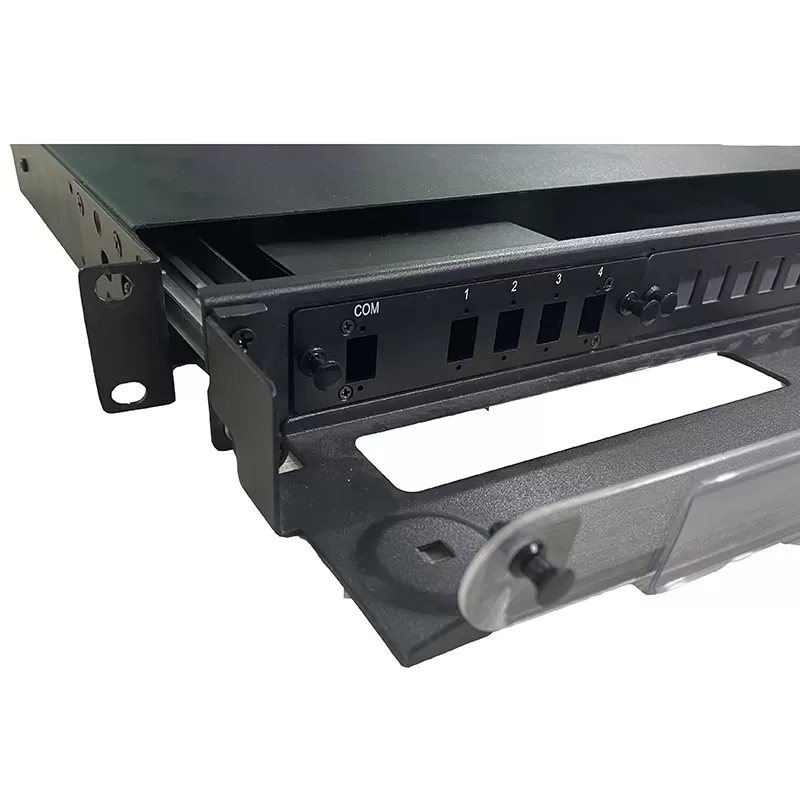

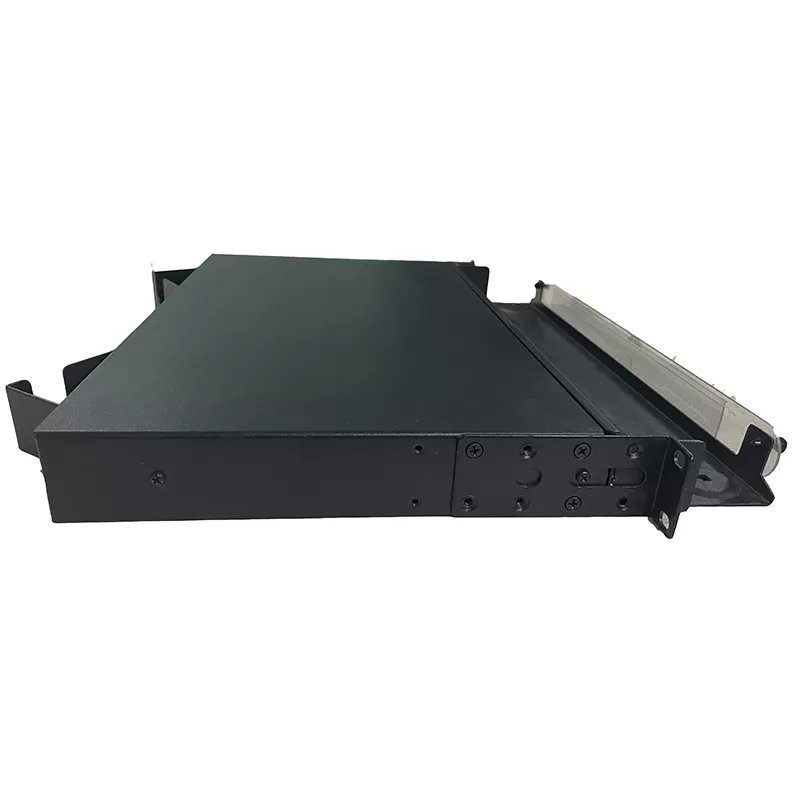

1U MPO Cassette Rack Mount Sliding Type Fiber Optic Patch Panel

1U MPO Cassette Rack Mount Sliding Type Fiber Optic Patch Panel

Model Number: WT-MPO356

Material: Cold-rolling steel

Environmental temperature: -25 - 55°C

Ports: 12/24/48/144 prots or customized

Insulating resistance: ≥2x104 MΩ/500VDC


share:

Description Contact Us

     This product is installed in the cabinet,can use the card strap to organize the optical fibers. The operation is very simple and the cabinet can be kept tidy. The next time you need to check it is also very convenient, and you will not worry about the fibers entangled with each other.

     Fiber Optical Patch Panel is a box for protecting the optical cable and pigtail splice in the cable laying. It is mainly used for the straight-through connection and branch connection of the indoor optical cable and the fixing of the cable terminal, and functions as a pigtail storage and protection joint.



Features


- Standard size, light weight and reasonable structure;

- Splice tray inside changeable;

- Can be used in 19” standard distribution frame;

- Suitable for ribbon and single fiber;

- Various panel plate to fit different adapter interface;

- Front mark on the plate is easy for identification and operation;

- Come with fiber optic pigtails and adapters;

- High Quality SlideWay

- Easy for management and operation.


Application

- Telecommunications subscriber loop;

- Fiber to the home (FTTH);

- LAN/WAN and metro networks;

- CATV Networks;

- Other applications in Fiber optical systems.



Size
48.5*30.5*4.5 cm


Weight
3.15 Kg


Environmental temperature
-25 - 55°C
Relative humidity
<85%(when the temperature is below 30°C)


Atmosphere pressure
70~106Kpa

Insulating resistance
>2×104 MΩ/500VDC


Voltage-resistance strength
Under the effect of 15kv/DC/1min, non-puncture, and no arc-over
