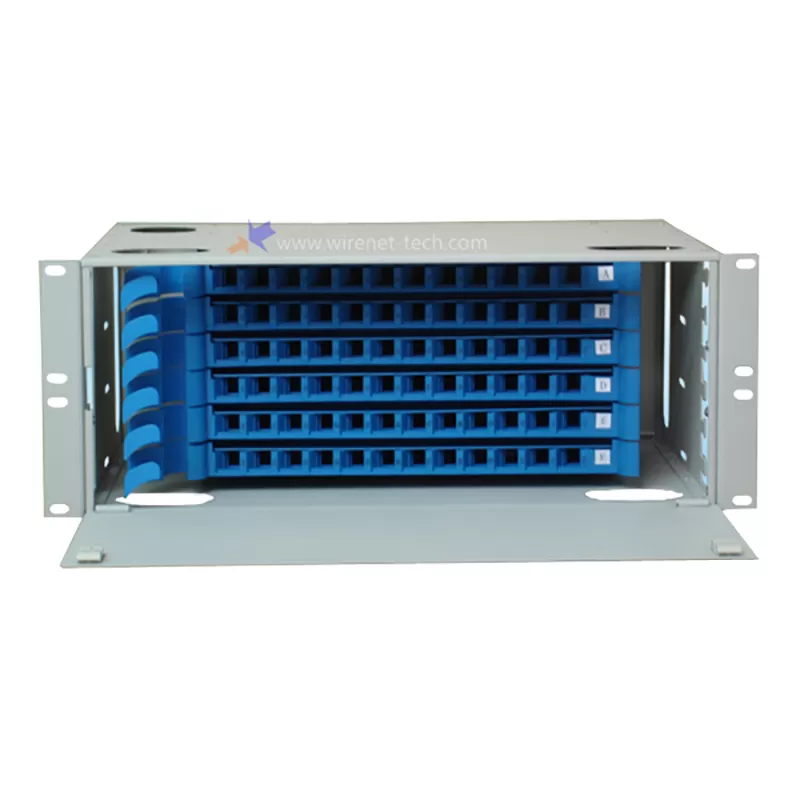

4U 72 Core Fiber Optical Distribution Frame ODF with Splice Tray Wholesaler

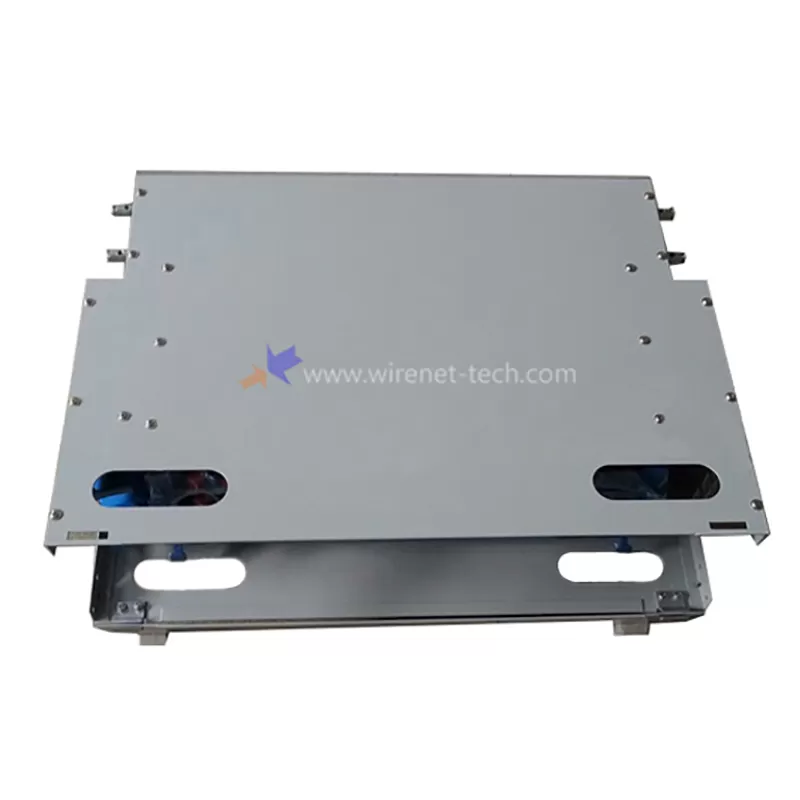

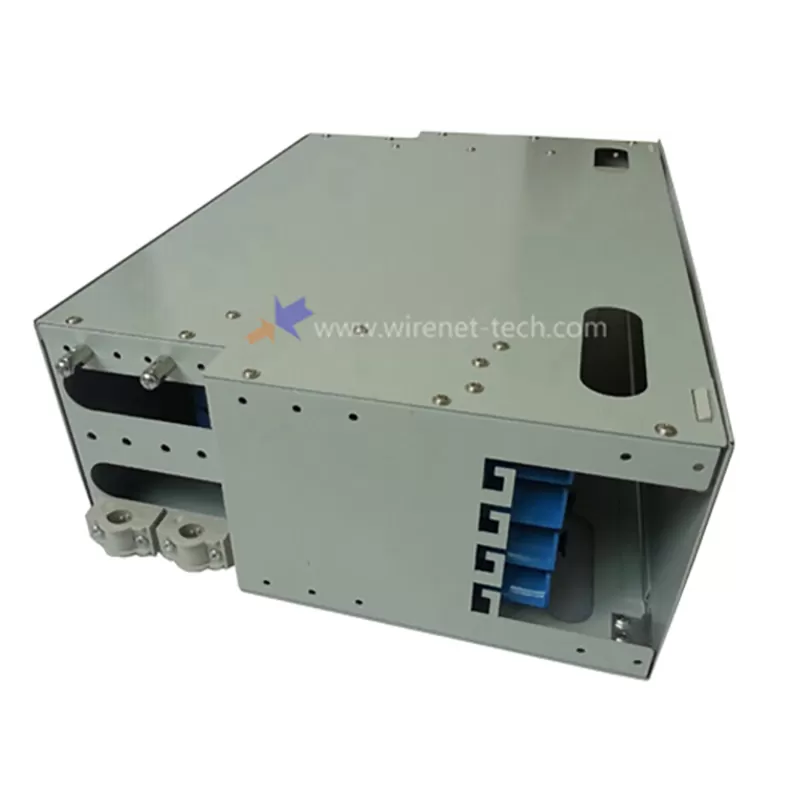

Rack-mount Fiber Optic Distribution Frame is modulized design with drawable trays inside and cold-rolled steel box. It could be pre-installed with various kinds of fiber optic adapters and pigtails.It is with standard 19 inch size and properly designed to control the bend radius of the cable inside the enclosure to avoid extra optical loss. This frame is ideal for indoor fiber optic cables connection storage, distribution and management.

Features:
Standard size, light weight and reasonable structure.
Splice tray inside changeable.
Can be used in 19', 23' standard distribution frame.
Suitable for ribbon and single fiber.
Various panel plate to fit different adapter interface.
Front mark on the plate is easy for identification and operation.
24C, 36C, 48C, 72C optional, with or without fiber optic pigtails and adapters.
Easy for management and operation.

Application:
Telecommunications subscriber loop
Fiber to the home (FTTH)
LAN/WAN
CATV

Model	Core Count	Height	Dimension(cm)	Weight(kg)
ODF-R144	144	7U	49x30.5x31.15	17.1
ODF-R96	96	5U	49x30.5x22.25	11
ODF-R72	72	4U	49x30.5x17.8	9
ODF-R48	48	3U	49x30.5x13.35	7
ODF-R36	36	2U	49x30.5x8.9	5.7
ODF-R24	24	2U	49x30.5x8.9	4.6
