8f 16f Fiber Optic Pedestal Plastic Optical Distribution Point FTTH ODP

8f 16f Fiber Optic Pedestal Plastic Optical Distribution Point FTTH ODP

Model Number: FOP-16B

Material: Plastic

Application: FTTH FTTB FTTX Network

Dimension: 31*70 cm

Color: Grey

Manufacturing Technique: Rotational Moulding

Installation type: On the Ground

Inquire Now Next Product

Description Contact Us

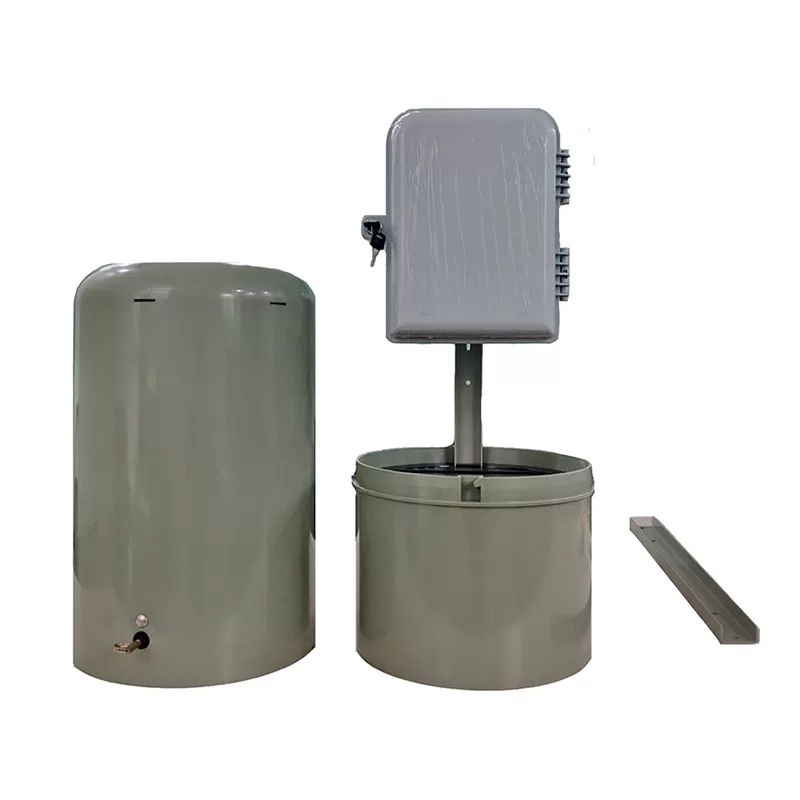

FOP-16B fiber optical pedestal is designed specifically for the housing of fiber access terminals to provide an additional protection to the fiber passive equipments installed, the green environment-friendly appearance makes itself perfectly suitable for FTTH.

Features

* Water-proof design with IP-55 Protection level.
* Self-locking cover mechanism, with additional padlock.
* Removable cable entry plate with 3 * 50mm cable entrance,better performance for humidity-proof.* Spacious inner space with universal mounting bracket,suitable for all types of FAT less than 300mm.* Made by high strength industrial-standard engineering plastic,better performance on anti-aging and UV-proof. * Stainless steel metal frame and anti-rusting components.
* 360 degrees air vents to keep a sound ventilation system.
* Smart design on packing,saves up to 30% on shipping cost.

Application
- Widely used in FTTX Network.
- Telecommunication Networks.
- Data communications Networks and Local Area Networks.

Material	Field Size	Max Capacity		Shipping Size	Weight	Color
Non-metallic ABS	HD(mm) 700310	FAT(ODP) Ports 24 Ports	PLC 1x16(SC)	HD(mm) 515310	4.0kg	Light Green
