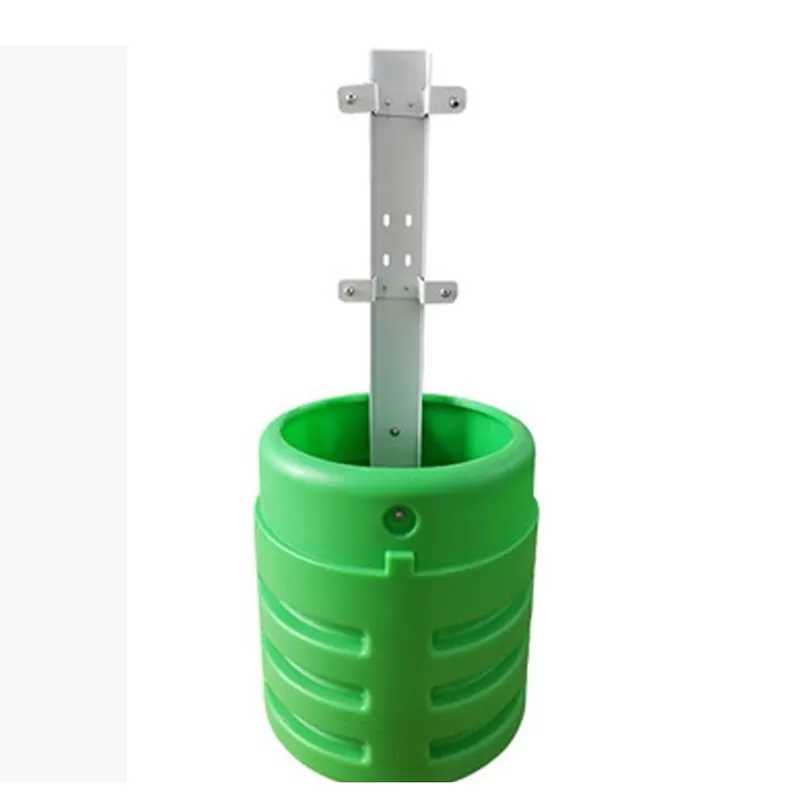

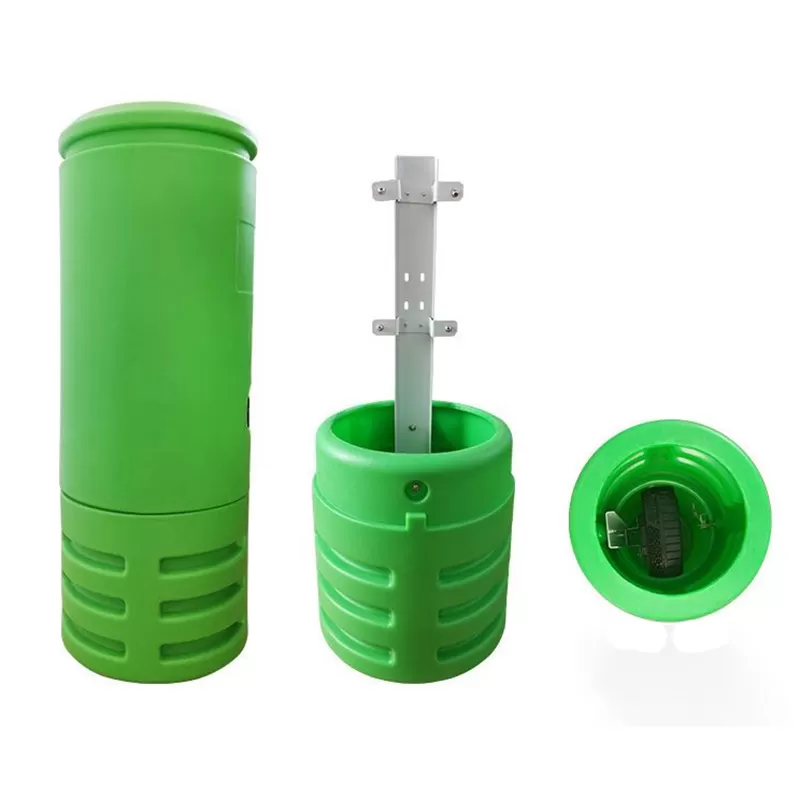

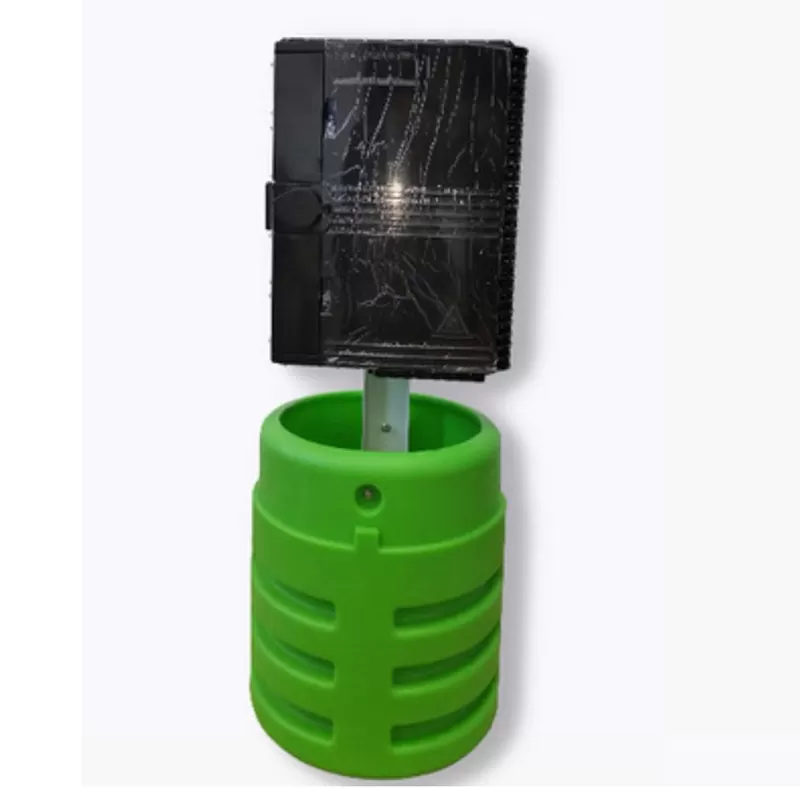

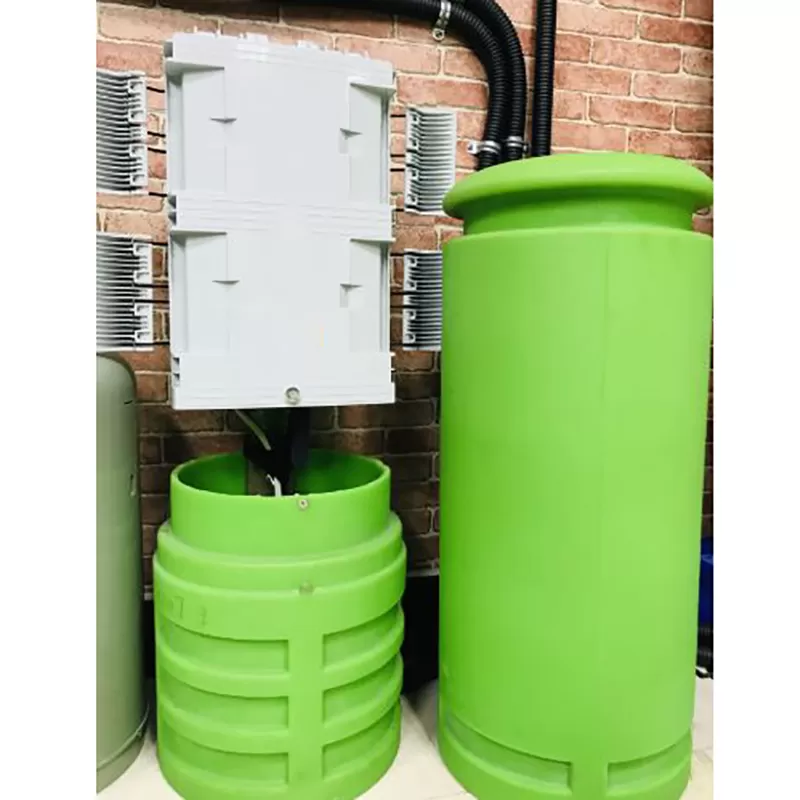

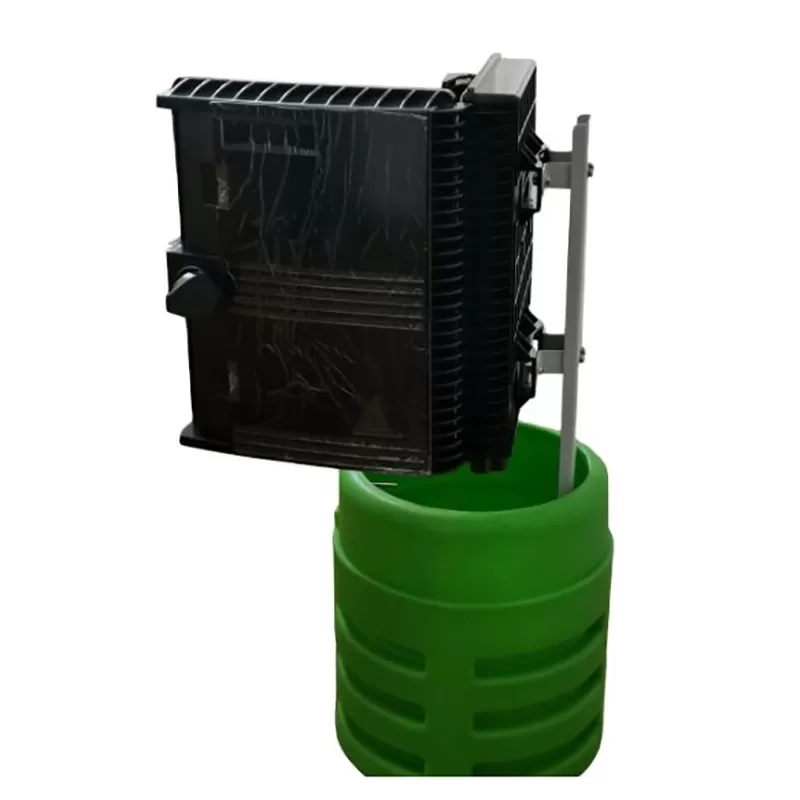

FTTH Fiber Optic Pedestal Optical Distribution Point ODP

FTTH Fiber Optic Pedestal Optical Distribution Point ODP

Model Number: FPO-16A

Material: HDPE

Application: FTTH FTTB FTTX Network

Dimension: 250*650 mm

Color: Green

Life of insertion and extraction: >1000 times

No. of Fiber: 8f/16f

Manufacturing Technique: Rotational Moulding

Installation type: On the Ground

Inquire Now

Description Contact Us

Introduction
-The Fiber DistributionPoint provides everything necessary to manage distribution fibers for an outside plant FTTx application on the street.
-The Fiber Distribution Point can accommodatefiber optic splitterinside of the plastic cover. It protects the splicingpoint from outside environment.
-The design and layout of the cable guides promote an efficient and ordered positioning of the cable with main body.
-Placement of the incomingcables allows convenient access for installation,maintenanceand subsequent terminationof additional secondary cable.
-All components of the Distribution Point will be of high quality design, workmanship and finish

Features

* Intelligent design.
* Simple and clearly arranged cable management .
* Outdoor Pedestal with Water-proof function.* High Density Polyethylene Material(HDPE)

Dimention	Diameter 250mm, height 650mm	Function:	wet-proof 、water-proof、 dust-proof、anti-aging
Input / Output Dia	20mm	Protection Level:	IP 65
Installation type	On the Ground Pedestal	Life of insertion and extraction: >1000 times
Material	HDPE	Main technical datasheet:Insertion loss： ≤0.2dB

FTTH Fiber Optic Pedestal Optical Distribution Point ODP
