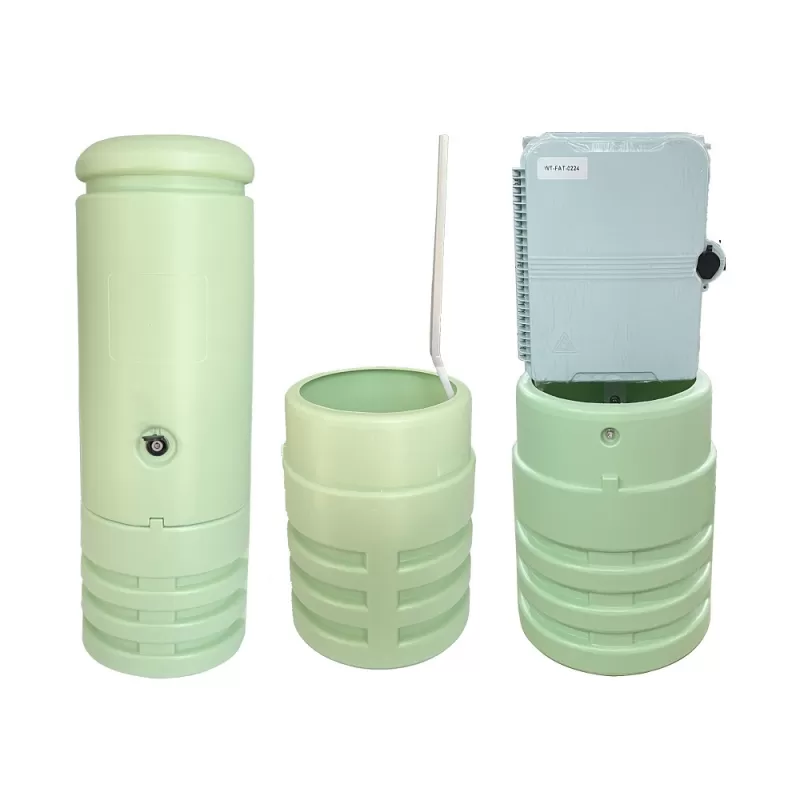

Outdoor ODP Optical Distribution Point Pedestal for Underground FTTH Installation

Outdoor ODP Optical Distribution Point Pedestal for Underground FTTH Installation

Model Number: WT-FTS-565

Material: HDPE

Application: FTTH FTTB FTTX Network

Dimension: 289*835 mm

Applicable fibers: 8~16

Life of insertion and extraction: >1000 times

No. of Fiber: 8f/16f/24f

Manufacturing Technique: Rotational Moulding

Installation type: On the Ground

share:

Description Contact Us

The circular green ODP Pedestal Equipment is the equipment of the user access point in the optical fiber access network. It is mainly used for the protection and management of optical fiber nodes in the FTTx network, and is mainly used for outdoor installation.


The pedestal fiber distribution hub is used as a termination point for the feeder cable to connect with drop cable in FTTX communication network systems. Fiber splicing, splitting and distribution can be done in this box while it provides solid protection and management for FTTX networks. Out fiber hub offers two-stage environmental protection of fiber optic loop distribution cable and customer services drops in FTTP deployments. This two-stage protection is accomplished by housing a weather-tight interior fiber distribution box within the confines of a non-metallic buried distribution pedestal.



Introduction

 -The Fiber DistributionPoint provides everything necessary to manage distribution fibers for an outside plant FTTx application on the street.


 -The Fiber Distribution Point can accommodatefiber optic splitterinside of the plastic cover. It protects the splicingpoint from outside environment.


 -The design and layout of the cable guides promote an efficient and ordered positioning of the cable with main body.


 -Placement of the incomingcables allows convenient access for installation,maintenanceand subsequent terminationof additional secondary cable.


 -All components of the Distribution Point will be of high quality design, workmanship and finish


Features

* Intelligent design.

* Simple and clearly arranged cable management .

* Outdoor Pedestal with Water-proof function.

* High Density Polyethylene Material(HDPE)

* Water-proof design with IP65 Protection level

*Durable HDPE dome housing offers excellent protection and long lifespan

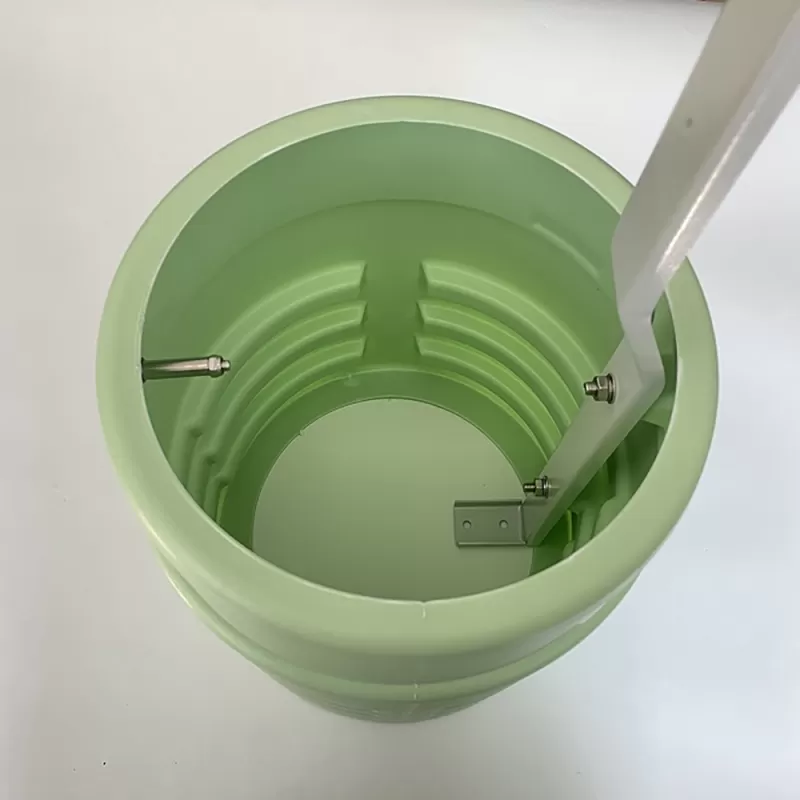

* 304 stainless steel mounting bracket provides perfect anti-rust and anti-corrosion

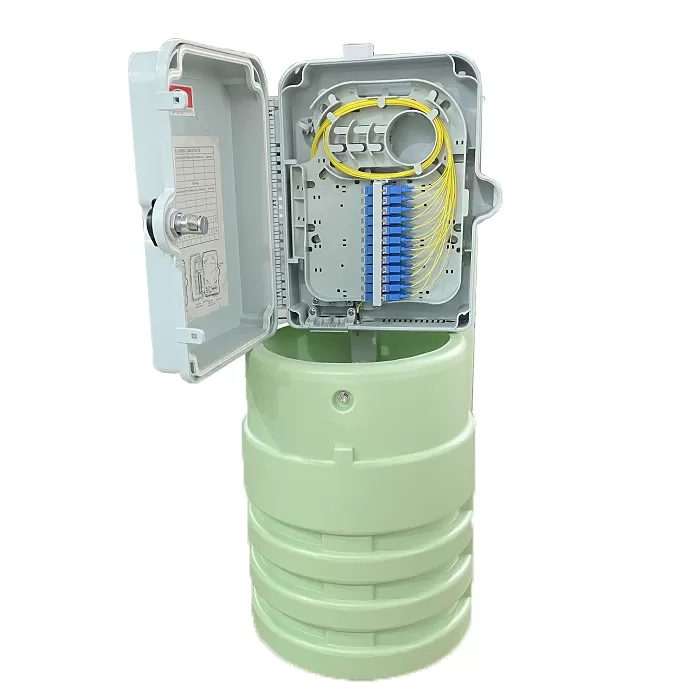

* Integrated with splice cassette and cable management system

* Manage fibers in a reasonable fiber radius condition

* Fiber bend radius control more than 40mm

* 1*16 PLC Splitter can be installed

* 2 cable ports for feeder cable

* 24 ports cable entrance for FTTH Drop Cable


Dimention
Diameter 250mm, height 650mm
Function:
wet-proof 、water-proof、 dust-proof、anti-aging
Input / Output Dia
20mm
Protection Level:
IP 65
Installation type
On the Ground Pedestal
Life of insertion and extraction: >1000 times
Material
HDPE
Main technical datasheet:Insertion loss:≤0.2dB
