Model Number: WT-FOP-96B
Material: Plastic
Size: 34.5*29.7*68CM
Fiber radius of curvature: ≥ 40mm
Maximum number of cores: 96 cores (single core)
Life of insertion and extraction: >1000 times
Fiber optic disk additional loss: ≤0.01dB
Manufacturing Technique: Rotational Moulding
Floor mounting hole distance: 260mm

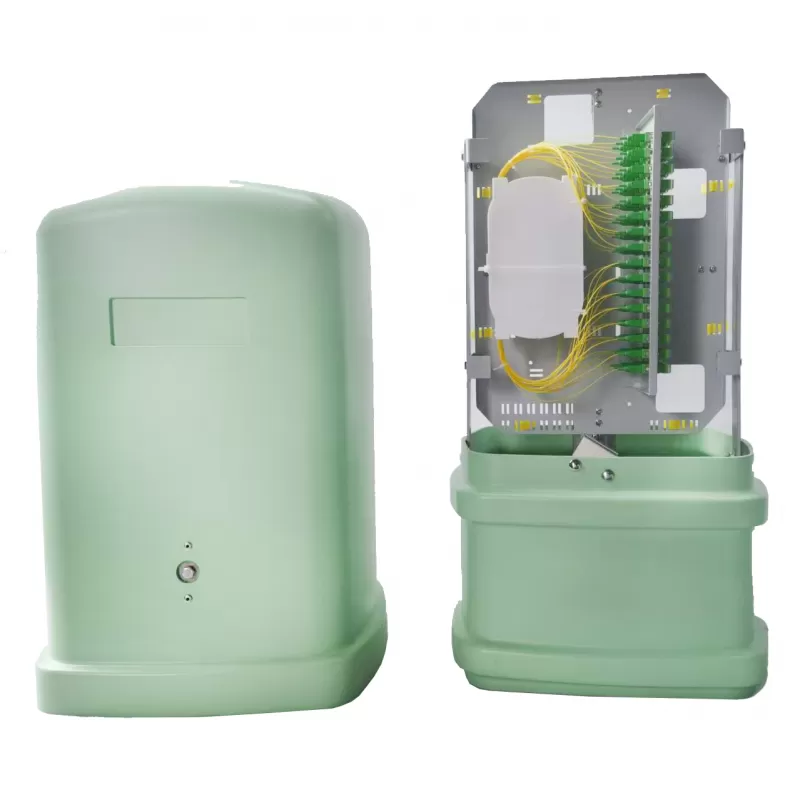

fiber optical pedestal is designed specifically for the housing of fiber access terminals to provide an additional protection to the fiber passive equipments installed, the green environment-friendly appearance makes itself perfectly suitable for FTTH.
Features
* Water-proof design with IP-55 Protection level.
* Self-locking cover mechanism, with additional padlock.
* Removable cable entry plate with 3 * 50mm cable entrance,better performance for humidity-proof.
* Spacious inner space with universal mounting bracket,suitable for all types of FAT less than 300mm.
* Made by high strength industrial-standard engineering plastic,better performance on anti-aging and UV-proof.
* Stainless steel metal frame and anti-rusting components.
* 360 degrees air vents to keep a sound ventilation system.
* Smart design on packing,saves up to 30% on shipping cost.
Attachments
- Fused fiber package: configured according to the number of cores.
- Round head screw M2x5: configured by flange number.
- Bare fiber protection tube φ4x400: one for every 12 cores.
Application
- Widely used in FTTX Network.
- Telecommunication Networks.
- Data communications Networks and Local Area Networks.
Max Capacity | Shipping Size | Weight | Color | |
96 core | 80*70*60cm | 7.2kg | Green | |
