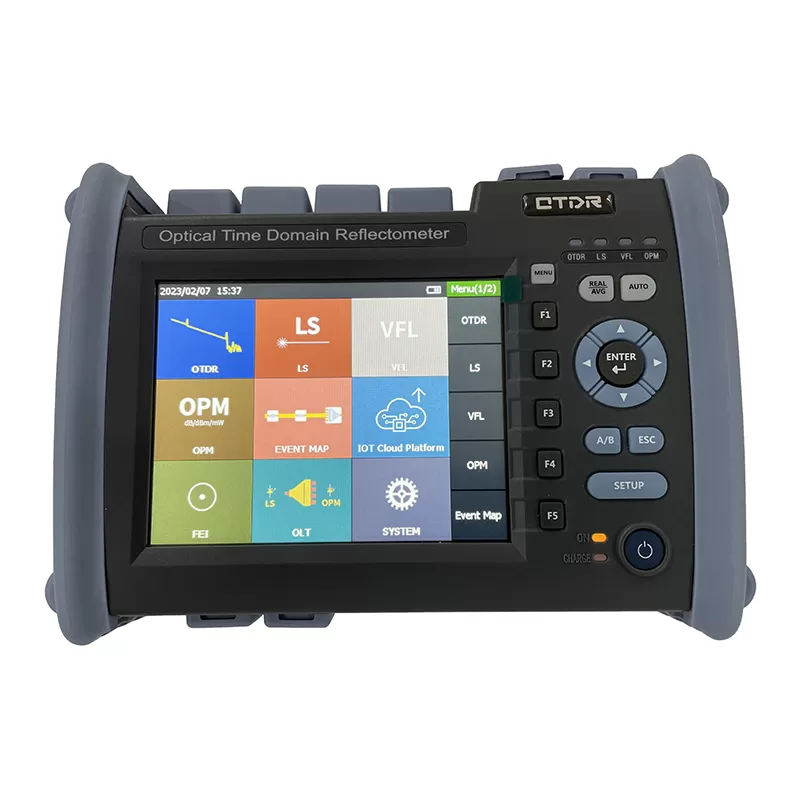

1310nm 1550nm SM MM Multi-function OTDR with VFL LS and OPM function

The OTDR is mainly used to measure the parameters if opticak fibers and cables,such as length,loss,and connection quality,etc.;it can realize the accurate positioning of event points and fault points,and can be widely used in the construction,maintenance testing and emergency repair of the optical fiber communication systems as well ad the research,production and production measurement of optical fibers and cables and so on.

This now OTDR also combine the OPM,OLS AND VFL module,in order ti provide you with the highest performance of solutions for installation and constructuion of fiber optica network construction and the subsequent and efficient maintenance and troubleshooting testing.

Description

1.High Performance Test

2.5.8 inch color TFT LCD display,touch/key dual operation

3.Dynamic range :35/33 dB, Maximum to 45dB

4.Less then 0.8meter ultra short event blind area

5.Testing optical fiber patch cords freely

6.Link optical nondestructive testing

7.Signal optical detection function

8.Effective protection of APD

Multifunctional test -standard configuration

1- OTDR

2- Optical laser source OLS

3- Visual Fault Locator VFL

4- Optical Power Meter OPM

5- Intelligent Optical Link Mapper IOLM

6- Optical fiber end face detection

7- Optical Loss Test

8- Fault Location

Optical Time Domain Reflectometer ( OTDR )

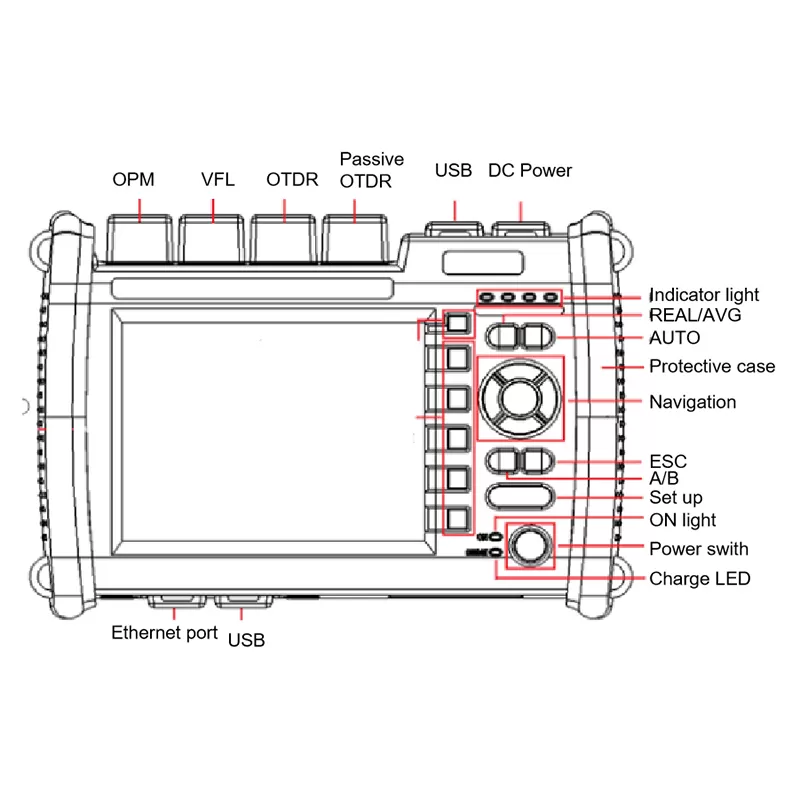

Function interface

OTDR

LS

VFL

OPM

OLT
