4 in 1 Mini Handheld OTDR For FTTH Network CATV

Model Number: wt-310

Connector Type: SC/FC/ST

Fiber Type: Single Mode

Dimensions: 12.5*9*3.3cm

Wavelength: 1550 or 1610nm

Dynamic Range: 20dB

VFL Output Power: 10mW

Optical Power Meter Module: -50~+26dBm/-70~+6dBm

Optical Light Source Module: 1550 or 1610nm

Battery Capacity: 4000mAh

Inquire Now Next Product

Description Contact Us

Introduction

   Optical Fiber Tester Mini OTDR is a unique mainly designed for construction and maintenance of telecommunication and CATV networks.It can be widely used in engineering construction, maintenance test and emergency repair of all fiber optics relatedsystems. Comparing with a regular OTDR,it is more compact in size and easier for field use.

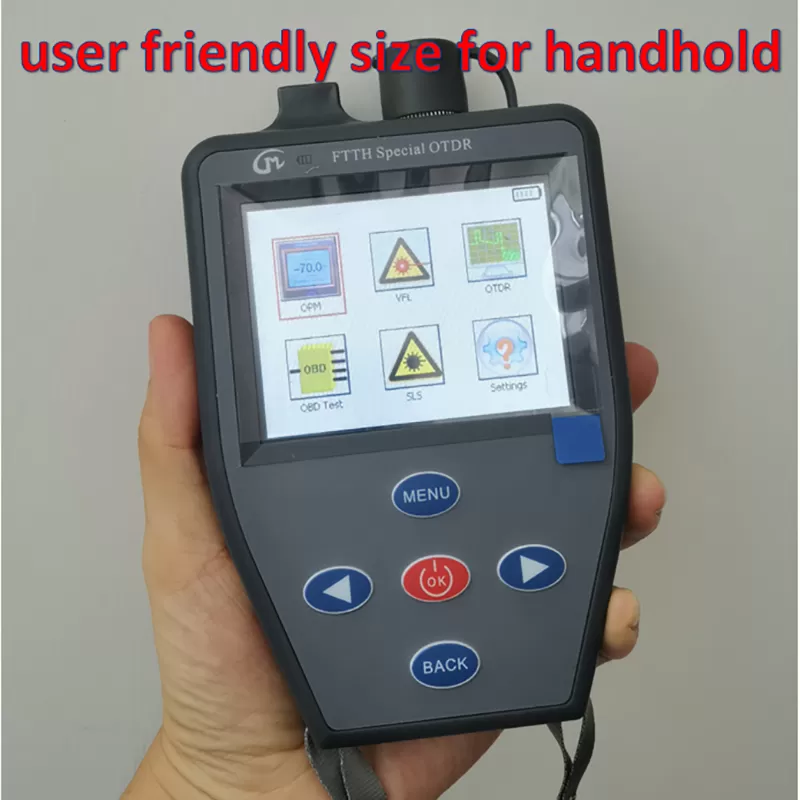

4 in 1 Mini Handheld OTDR For FTTH Network CATV

Mini-Pro OTDR
Model		WT-310
Wavelength		1550nm or 1610nm
Fiber Type		Singlemode
Event Blind Zone		3m
ATT Blind Zone		10m
Test Range		500m~20km
Pulse Width		10,30,100,300ns, 1,3,6us
fiber port		SC
testing accuracy		10%
testing length (event)		50km
tesngting lenth (attenuation)		30km
Data Storage		Internal:≥600;External:TF Card
woring temperature		-10~50 degrees
Connector		SC/UPC
OPM
Wave Range		800nm~1625nm
Interface Type		Universal Joint SC
Test Range		-50dBm~+26dBm(-70~+6)
Uncertainty		±5%
Frequency Identification		CW/270/330/1k/2kHz
Calibration wavelength		850/980/1300/1310/1490/1550/1625/1650nm
LS
LD Type		FP-LD
Wavelength		1550
Output Power		≥-10dBm
Modulation Frequency		270/1k/2kHz
Connector		SC
VFL
Wavelength		650nm±20nm
Output Power		≥10mW
Mode		CW/1Hz/2Hz
Connector		FC/SC/ST
Other Parameters
Dimention		12.5*9.3.3cm
Power Supply		Polymer Li-Battery:3.7V,4000mAh Adapter:5VDC,2A
Battery Life		Measuring time>10h
Operating Temperature		-10℃~+50℃
Storage Temperature		-25℃~+70℃
Relative Humidity		0~95%Non Condensing
Weight		≤350g

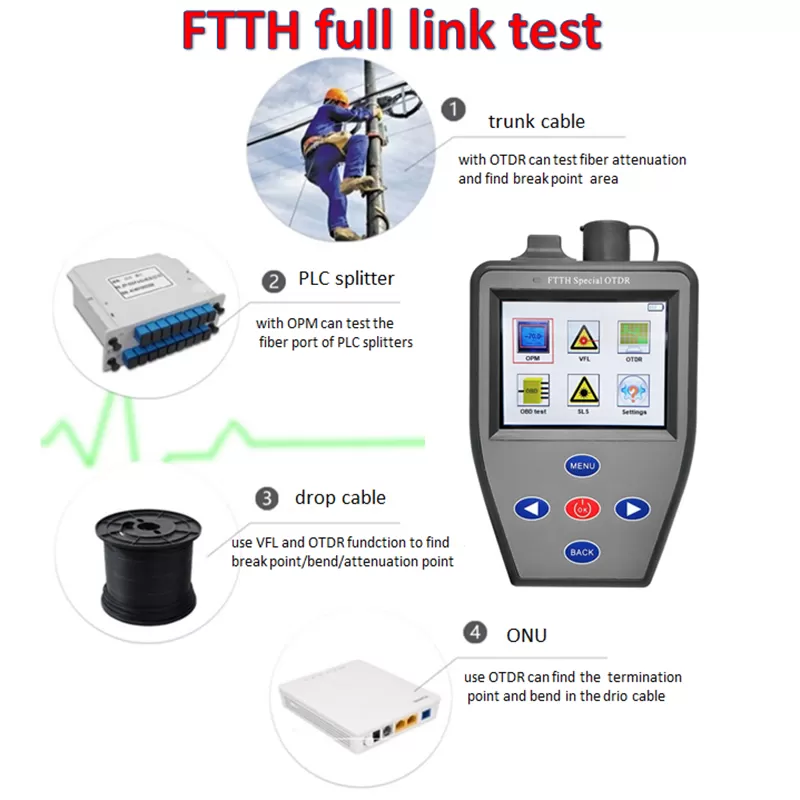

Application
Fiber CATV Test Engineering,
Optical fiber CCTV Test communication engineering,
Integrated wiring system,
Optical device production and research,
Optical communication teaching and testing,
Other fiber optic engineering, etc.
Optical fiber CCTV Test communication engineering,
Integrated wiring system,
Optical device production and research,
Optical communication teaching and testing,
Other fiber optic engineering, etc.
