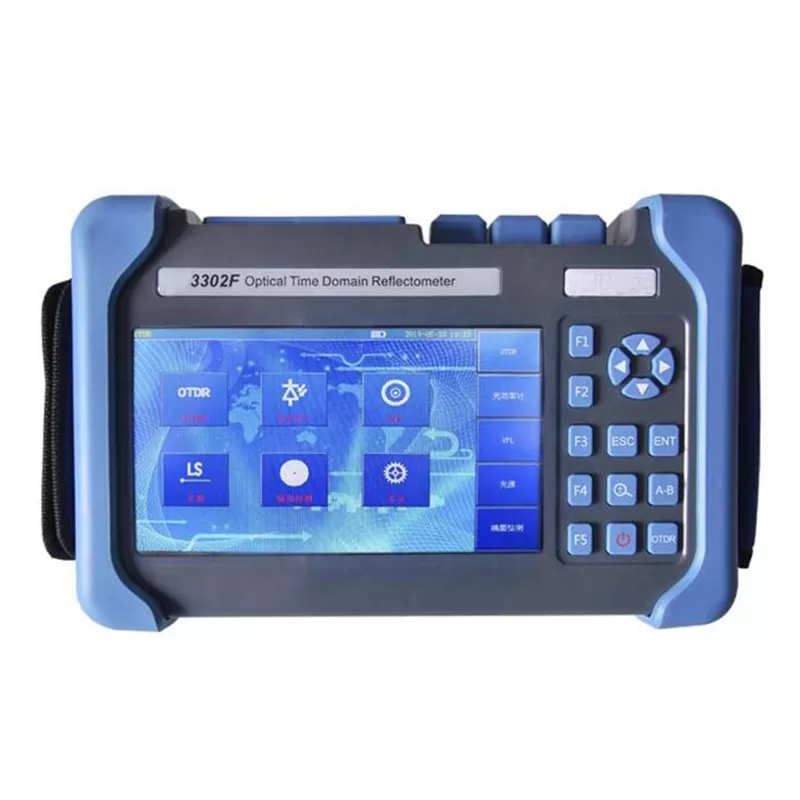

Single Mode Multimode Handheld OTDR with PON Network Test and Visual Fault Locator

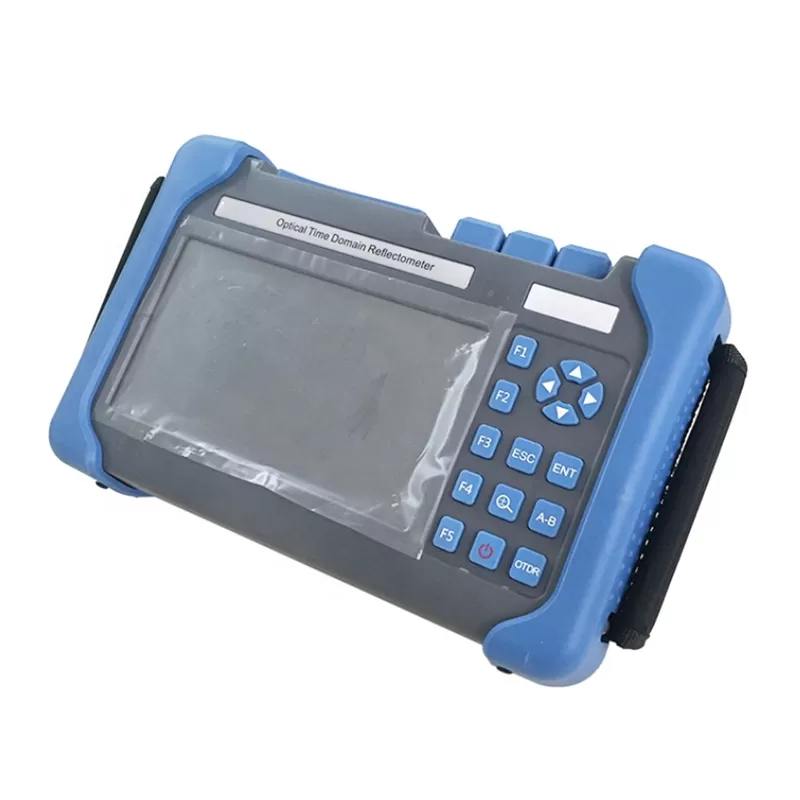

WT-3302F is a high performance, multi-functional test instrument with excellent test performance, which can support VFL, OPM, fiber optic microscope (FIP) and other test modules.This product is mainly used for measuring the length, transmission loss, joint loss and other optical fiber physical properties of optical fiber and cable. It is widely used in FTTH network, local optical fiber network, urban optical fiber network, PON network construction, deployment, maintenance, certification and optical communication teaching and research.

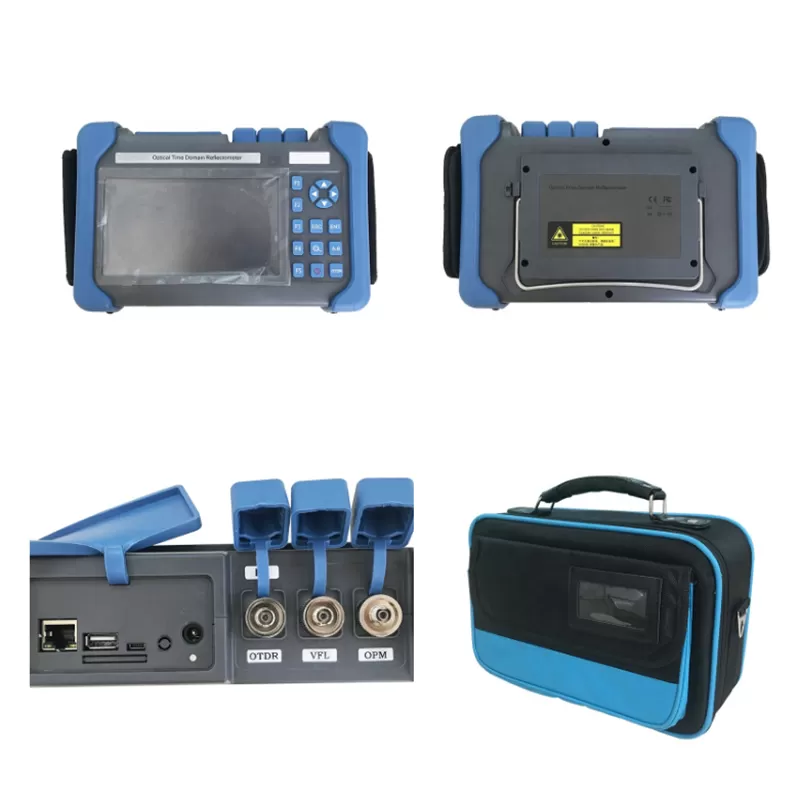

WT-3302F has novel, bright and durable appearance.Double operation with touch and button, easy and intuitive operation style;The optimized parameter configuration can simplify the test operation to the maximum extent.The product has a rich external interface;The whole machine adopts the intelligent power management mode, and the large capacity lithium battery makes the working time of the whole machine more than 10 hours.

Features:

1. Max. 45dB large dynamic range, 128k data sampling point;

2. ≤0.8m ultra-short event blind area, easy to test fiber jumper;

3.Maximum support 4 wavelength measurement: 4.850/1300/1310/1490/1550/1625/1650 nm;

5.The line has light detection and warning: avoid the signal light damage equipment in the tested fiber;

6.With Ethernet remote control function;

7.Built-in optical power meter function;

8.Built-in visual red light fault location (VFL) function;

9.Built-in optical fiber terminal detection function;
