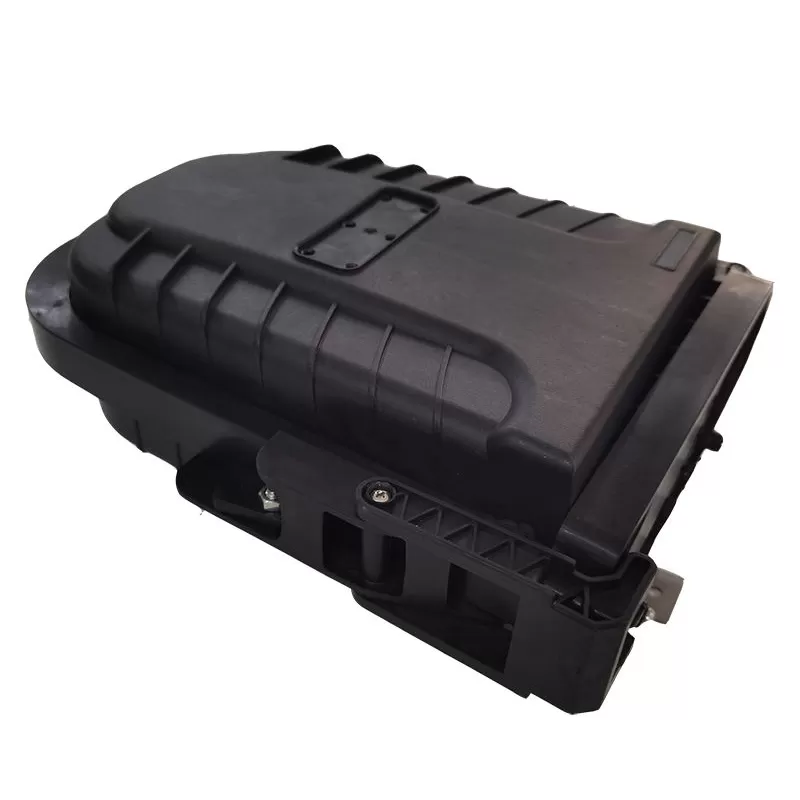

16 Core Multi Dwelling Unit Fiber Optic Splice Closure

16 Core Multi Dwelling Unit Fiber Optic Splice Closure

Model Number: WT-FSB-0216

Ports: 2 inlet 2 outlet

Material: PP/GF

Max. capacity: 16cores

Dimensions: 330*260*150mm

Weight: 2.1kg

IP standard: IP65

Air Pressure: 70kPa ~106kPa

Inquire Now Next Product

Description Contact Us

   WT-FSB-0216 Fiber Splitter Box provides a high density wall mounted or pole solution for next generation networks, which aims to provide and manage fiber splitters in a limited space in a limited space. It is designed for FTTH (Fiber to the Home) or FTTB (Fiber to the Building) with protective housing for all the passive fiber equipment installed inside.

Features

* Water-proof design with IP65 Protection level
* Manage fibers in a reasonable fiber radius condition
* Fiber bend radius control more than 40mm

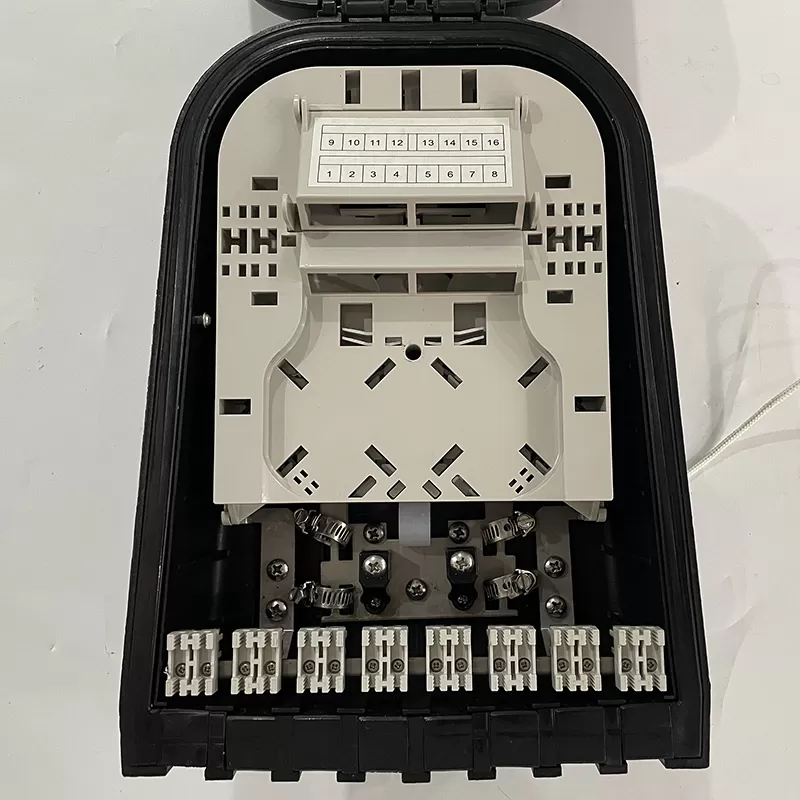

* 1*16 micro type Splitter can be installed
* Suitable for the fusion splice
* Easy to maintain and extend the capacity

Application
Widely used in FTTH access network.
Telecommunication Networks
CATV Networks
Data communications Networks
Local Area Networks

Dimensions (WHD)		250318125mm
Material		PP/GF
splice tray		2pcs*16corel
Number of Cable Entrance/Exit		2/16

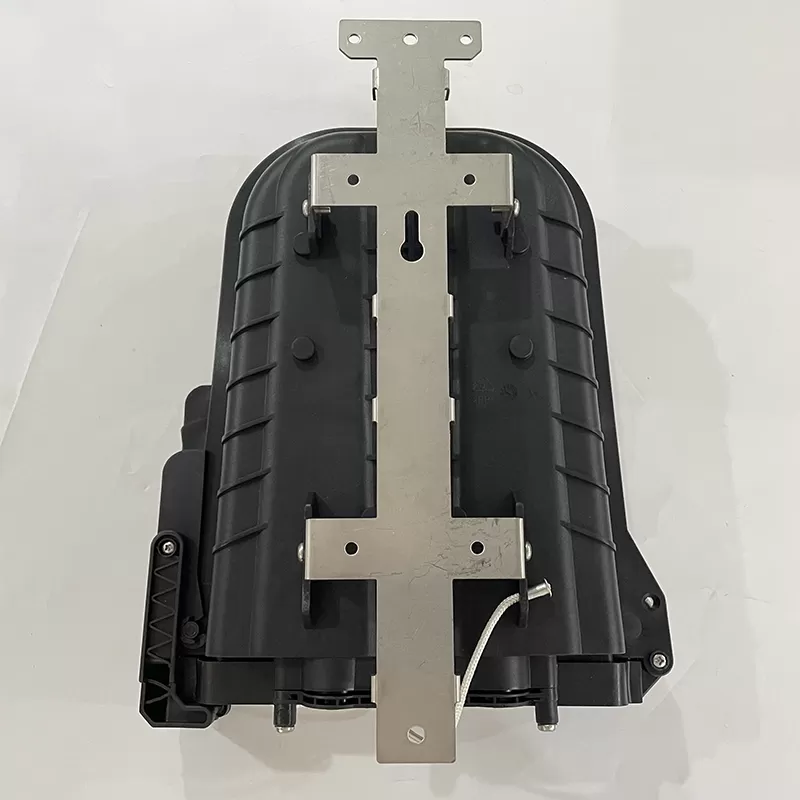

Installation		Wall-mounting/ Pole-mounted
Size of inlet hole		Φ5mm～Φ16mm
Size of outlet hole		2*3mm drop cable
No. ofadaptor&Splitter		16core
Weight		1.9kg（empty）
Color		Black
