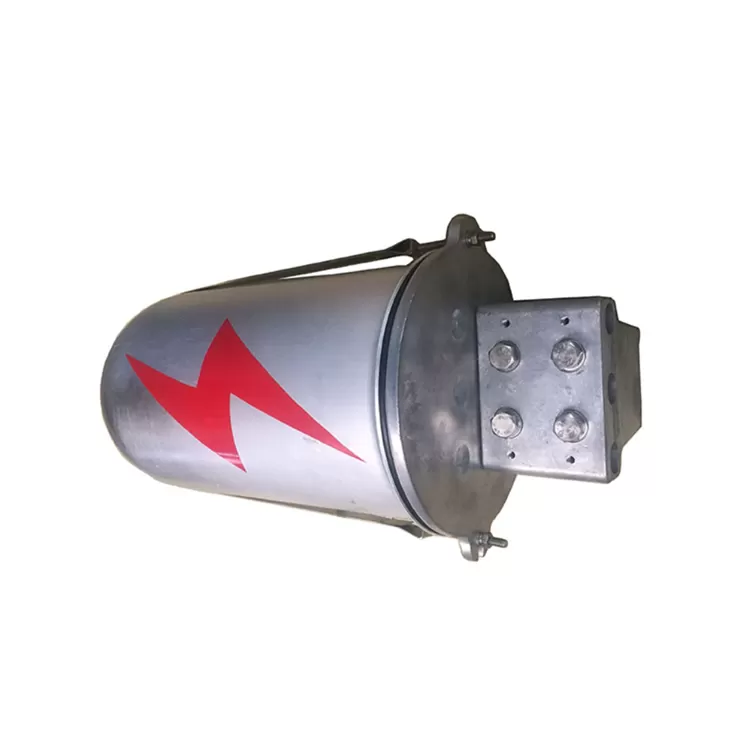

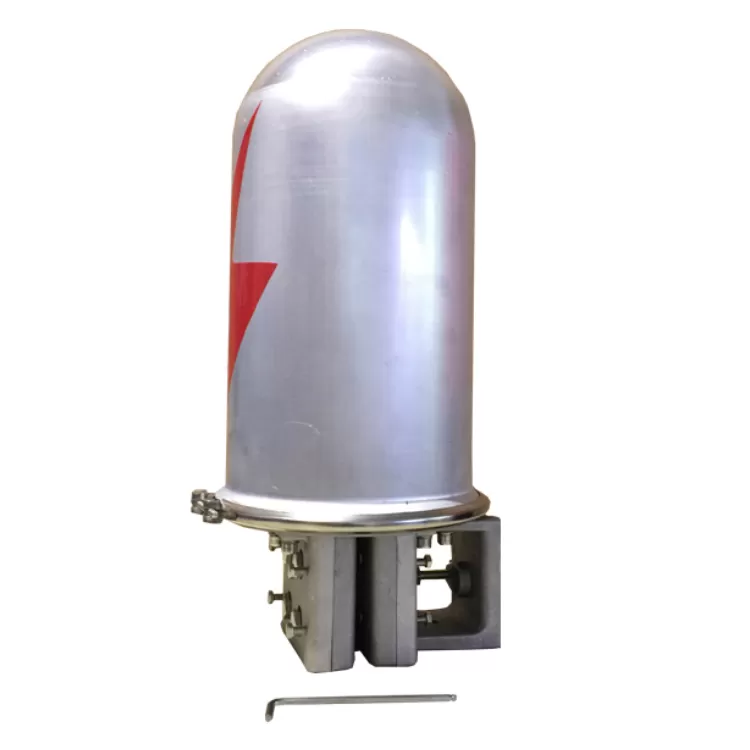

Model Number: OPGW cable closure
Capacity: 24~144 core
Size(mm): 470(H)x200
Pressure: ≥2000N
Cable diameter: 8~20mm
Temperature Range: -40~+80℃ Resistance to lateral
The radius of curvature of the fiber: 47mm Left fiber length in the plate:≥1.5m
Fiber plate: ≤0.01dB fiber maximum
Cable port: 2 in and 2 out, or 3 in and 3 out

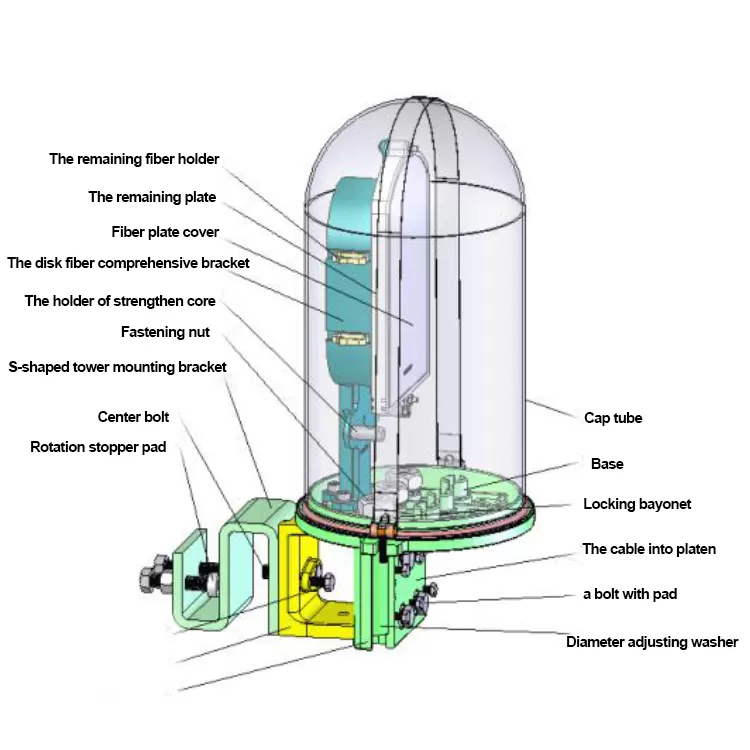

Structural characteristics:
The product is suitable in the power of special fiber optic cable connection protection products have direct access to the functions connected by the connection and differences, a maximum can be at the same time into the six fiber optic cable, high mechanical strength, good sealing performance alloy casing using electro-chemical treatment, corrosion resistance, excellent performance, sealedring and silicone seal, re-open, expansion, maintenance, multiplexing, save fibers and single-disc capacity of 48 cores; cable fixing with adjustable diameter adjusting washer clamped to prevent pinch cable; can be installed in different parts of the tower,securely installed; (rod installation of stainless steel with fixed, easy to operate, can be applied to different rod diameter, the installation of different locations.)
Technical Specifications:
The radius of curvature of the fiber:≥47mm Left fiber length in the plate:≥1.5m
Fiber plate to stay the additional attenuation:≤0.01dB fiber maximum capacity:≤144core
Temperature Range:-40~+80℃ Resistance to lateral
Pressure:≥2000N
Size(mm):470(H)×200
Advantage:
1,Direct coverage 8 ~ 20mm cable diameter, and with aluminum cover slot can effectively prevent slipping. (See figure below)

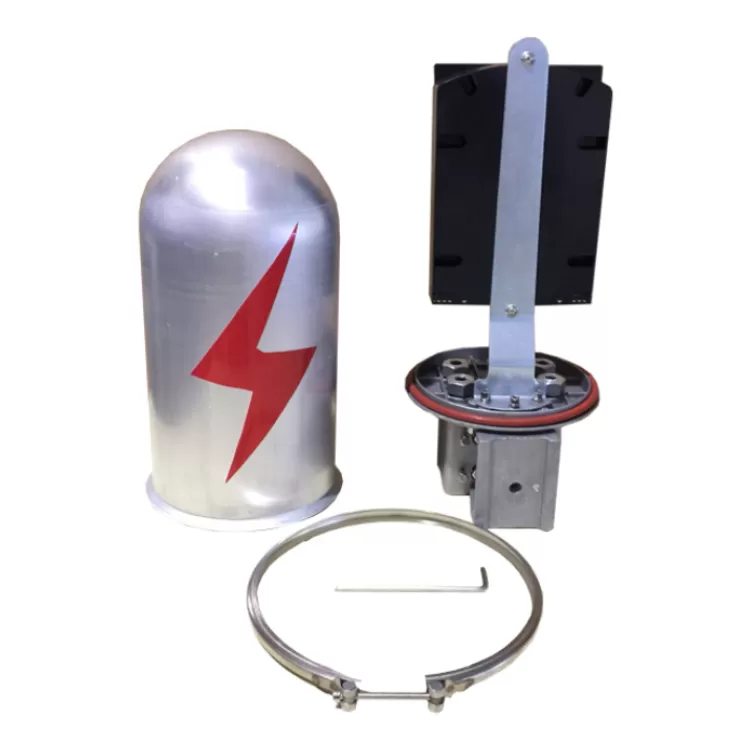

2,Can be directly used in a variety of specifications, types of splice protection (no replacement parts), can do a lot of stock. (See picture below)
3. save fibers and 12 core as a unit, a total of four units per plate, clear identification of fiber-optic lines, clear; pressure MDF prevent the hot melt tube from the rubber block off; the I fiber inventory process to prevent the fiber fromwalk fiber notch out of the rubber band (the original procedure requires the use of adhesive-bonded). (See figure below)

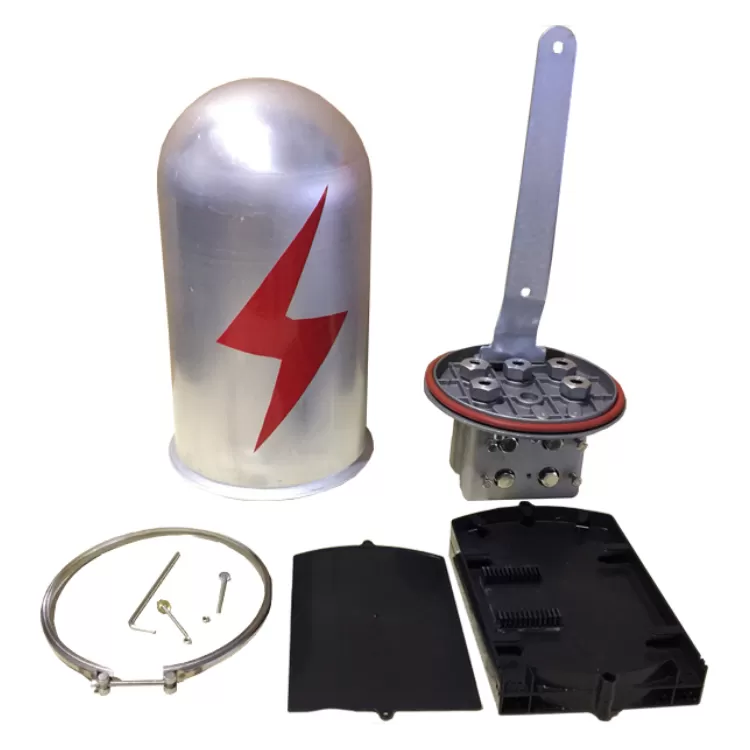

4. the disk fiber bracket using the injection molding of the whole (ABS), a more solid performance, and easier to operate. (See figure below)
5. with a dedicated ground wire mounting holes
6.the over all installation using stainless steel bolts,bolts,spring washers,flat pad is formed integrally construction easier to operate.
7. appliedto three three installation branch mounted integrallyformed,more simple and beautiful.
8,Cap barrel and base with pull-strip seal,simple,decent,more reliable seal
