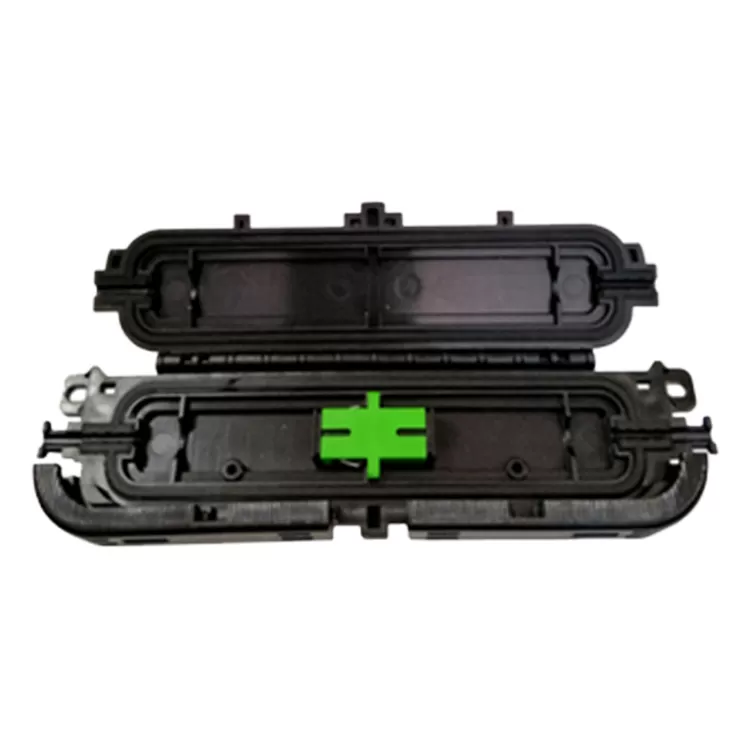

Fiber optic Drop Cable Fusion Splice Protection Box for FTTH

Fiber optic Drop Cable Fusion Splice Protection Box for FTTH

Model Number: WT-WJB2

Capacity of Splice: 1 core

Capacity of Fiber: 1 fiber

Suitable Adapter: SC

Dimensions: 180mm*48.2mm*17mm

share:

Description Contact Us

     Fiber optic cable protective box is a case to put in fiber drop cable with a thermal protection tube after hot melting, so that the splice spot can get a better protection.Relative to the cold welding, the hot one can improve the optical performance of connector, make the effective connection rate increased to one hundred percent, prolong the service life of the product and lower maintenance costs.

Fiber optic Drop Cable Fusion Splice Protection Box for FTTHFiber optic Drop Cable Fusion Splice Protection Box for FTTH

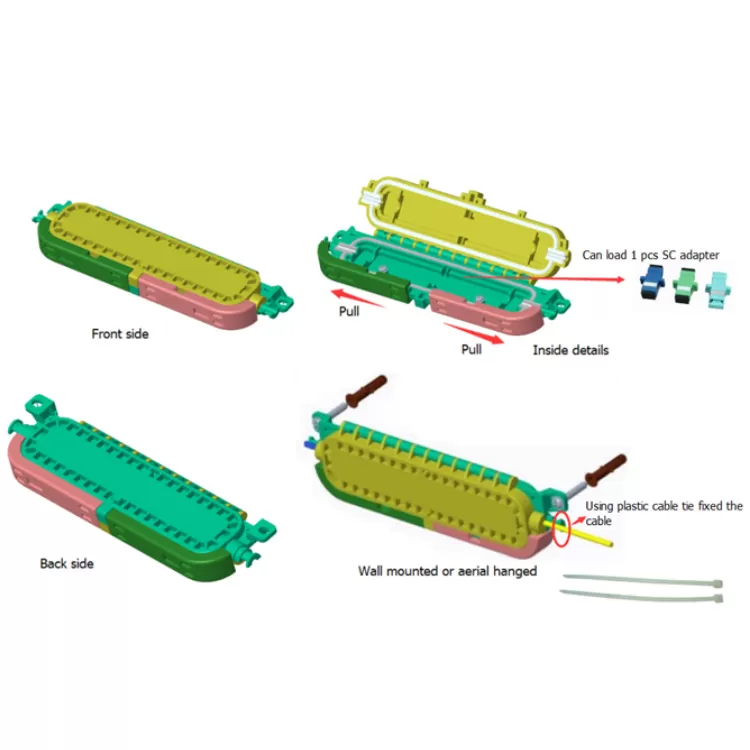

Features:
1. Fast connecting,Waterproof IP68(waterproof under 0.3m water)
2. Small size, nice shape, convenient Installation.
3. Splice contact protection is stable&reliable,Protectcable from damaged or broken by external force.
4. Outdoor wall-mount& aerial hanged application.

Technical Parameter
Material
ABS

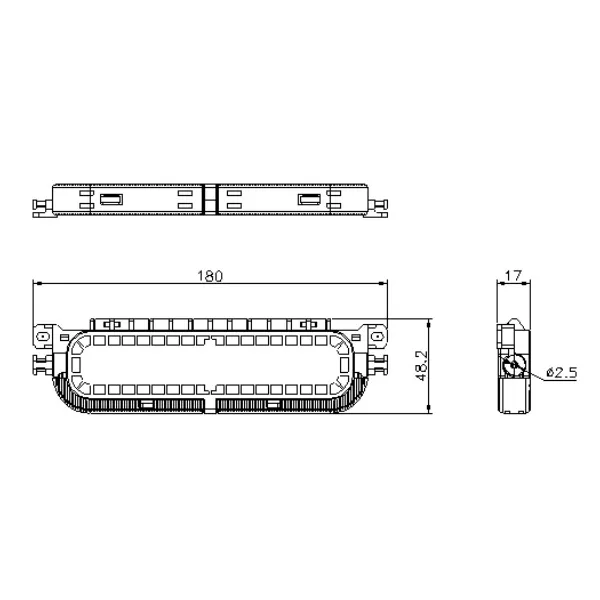

Dimensions(L*W*H )
180*48.2*17 mm
Capacity of Fiber
1 Fiber
Capacity of Splice
1 Core
Suitable Adapter
SC
Color
Black
Accessories:

Item
Description
Specification
Unit
Qty
1
Round head tapping screw
M3*6
PCS
2
2
Flat washer
Φ3
PCS
2
3
Wall mount screws
(Round head with self-tapping screws)
M4*25
PCS
2
4
Wall mount plugs
Φ6mm/plastic material
PCS
2
5
Plastic Cable tie
3mm*120mm
PCS
2

Fiber optic Drop Cable Fusion Splice Protection Box for FTTH

Fiber optic Drop Cable Fusion Splice Protection Box for FTTH

Fiber optic Drop Cable Fusion Splice Protection Box for FTTH
