Ftth Fiber optic Drop Cable Splicing Protective Junction Box Supplier

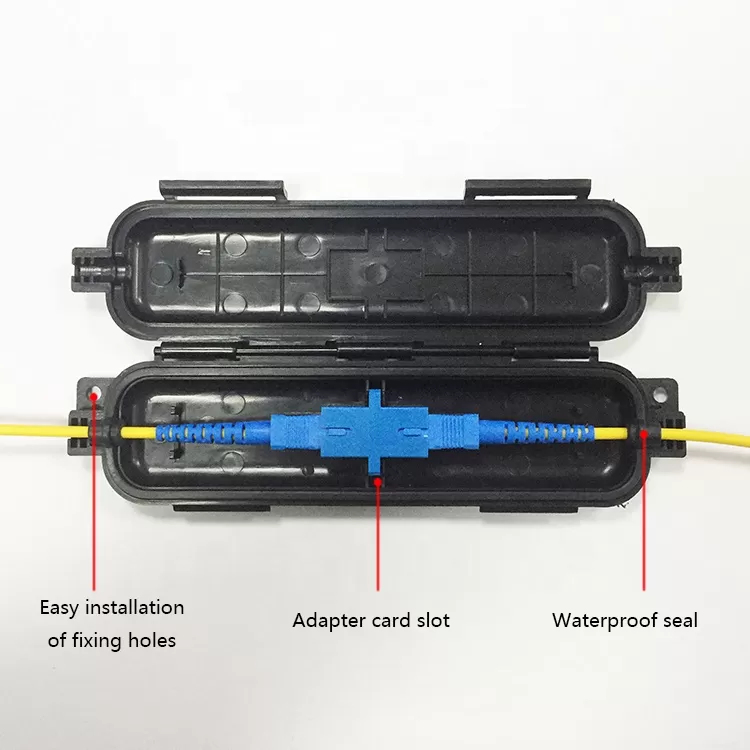

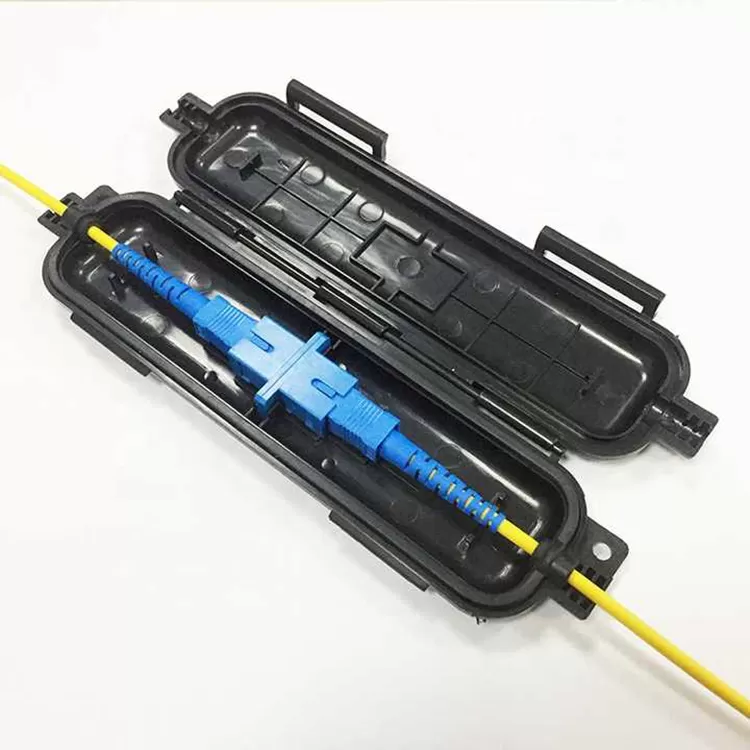

Fiber optic cable protective box is a case to put in fiber drop cable with a thermal protection tube after hot melting, so that the splice spot can get a better protection.Relative to the cold welding, the hot one can improve the optical performance of connector, make the effective connection rate increased to one hundred percent, prolong the service life of the product and lower maintenance costs.

Features：
1. Fast connecting,Waterproof IP68(waterproof under 0.3m water)
2. Small size, nice shape, convenient Installation.
3. Splice contact protection is stable&reliable,Protectcable from damaged or broken by external force.

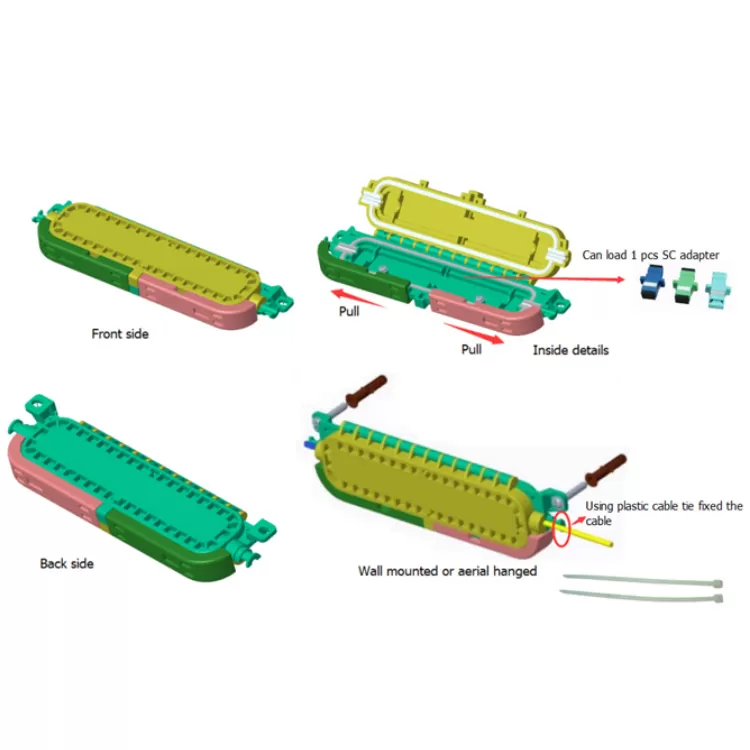

4. Outdoor wall-mount& aerial hanged application.

Technical Parameter

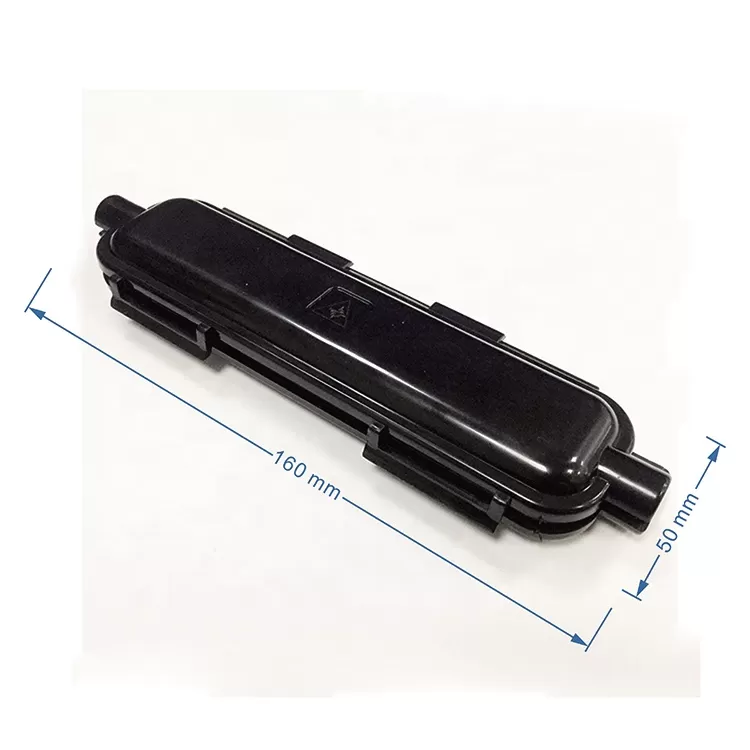

Material	ABS	Dimensions(LWH )	1605017 mm
Capacity of Fiber	1 Fiber	Capacity of Splice	1 Core
Suitable Adapter	SC	Color	White or Black

Accessories:

Item	Description	Specification	Unit	Qty
1	Round head tapping screw	M3*6	PCS	2
2	Flat washer	Φ3	PCS	2
3	Wall mount screws (Round head with self-tapping screws)	M4*25	PCS	2
4	Wall mount plugs	Φ6mm/plastic material	PCS	2
5	Plastic Cable tie	3mm*120mm	PCS	2

Ftth Fiber optic Drop Cable Splicing Protective Junction Box
