ST Tactical Optic Armoured Patch Cord

ST Tactical Optic Armoured Patch Cord

ST Connector 6 12 Core Tactical Optic Armoured Patch Cord with Yellow Sheath LSZH 10mtrs Gland M25

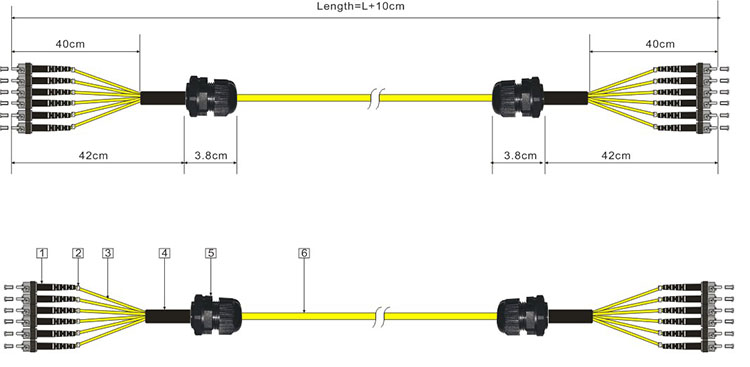

Below is drawing for the ST ST 6 core Tactical Optic Armoured Patch Cord with Yellow Sheath LSZH 10mtrs Gland M25, Length 10Mtr, fan out 40cm, 2.0mm

share:

Description Contact Us

ST Tactical Optic Armoured Patch Cord


1. Connector type

2. Cable marker, 1-1. ...6-6
3. Fanout tube 2.0mm yellow, LSZH, and fanout can be added spiral armour
4. Fanout kit
5. Gland M25

6. Pulling eye, pulling socker and waving tubing can be added as the protection to the fanout, details like below

7. Packing: wrapping in a circule or wrapping on a double layer reel



Parameter
1. Single mode fibers (9/125 SM G652D)
2. Test wavelength: 1310/1550nm
3. Insertion Loss (Max): -0.3dB
4. Return Loss (RL): APC>60
5. Durability: <0.1dB typical change,1000 repeatability


ST Tactical Optic Armoured Patch Cord


Characteristic

1. Low insertion and back reflection loss;
2. Good exchangeability;
3. Good durability;
4. High temperature stability;
5. Standard: TelcordiaGR-326-CORE.

6. The patchcord comply to CE requirement



Ordering Information
1.  Fiber count: 1. 2,3,4...48 core
2. Connector: LC/SC/FC/ST/E2000/MTRJ/SMA
3. Polishing way: APC/UPC
4. Fiber type: SM 9/125. MM 50/125. 62.5/125. OM3,OM4
5. Sheath Material: PVC, LSZH, and flame resistance and high flame resistance material
6. Length: XX Meter

7. Packing: wrapping in a circule or wrapping on a double layer reel

8. Protecting elemet: pullling eye,pulling socket and waving tubing

9. Adding the cable gland or not and what is the workable diameter for the gland
