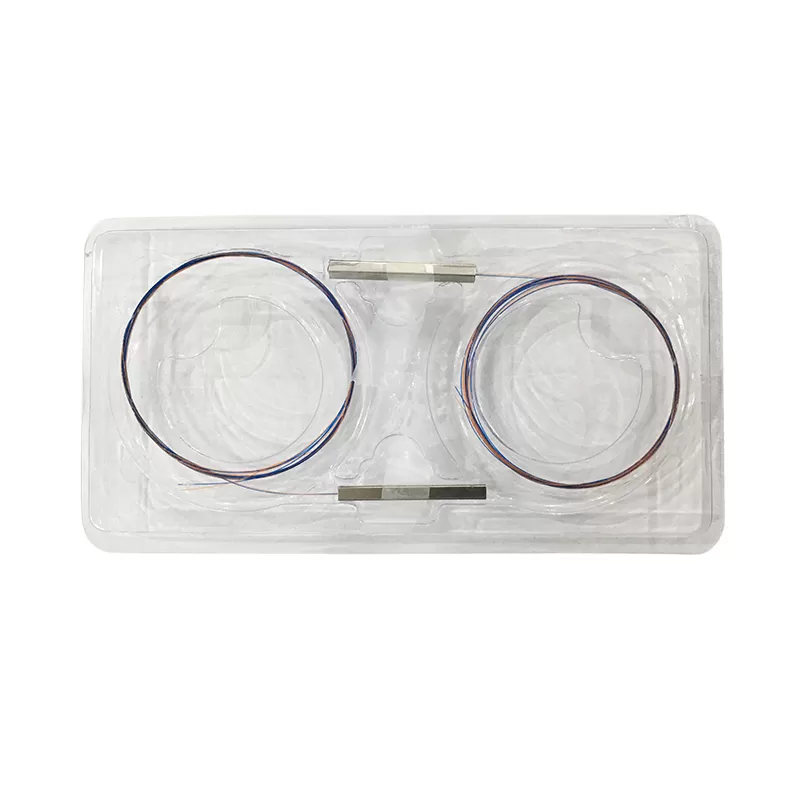

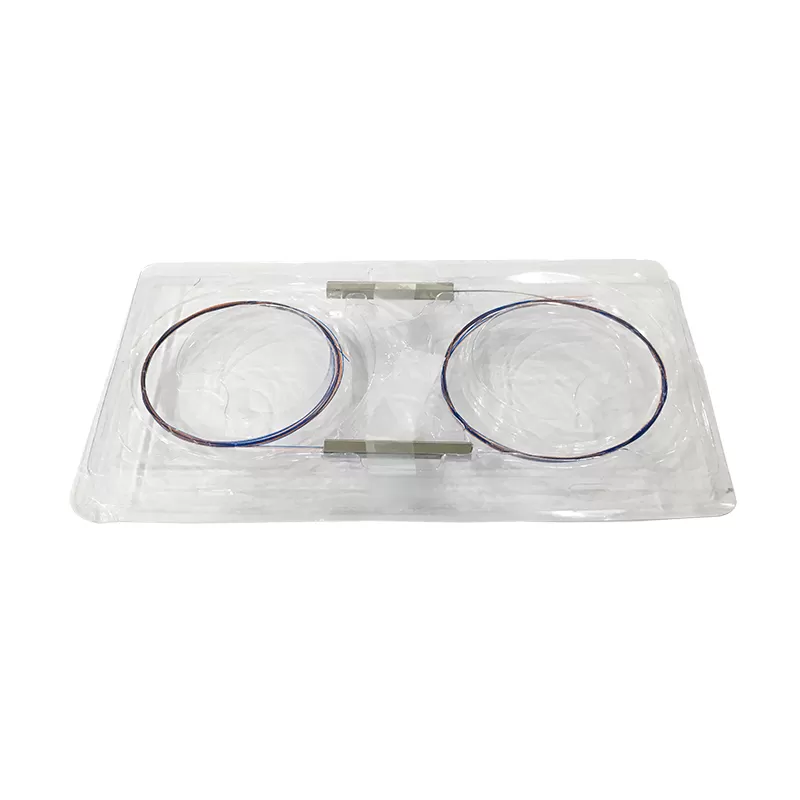

1x2 PLC Splitter

1x2 PLC Splitter

Structure: 1*N or 2*N

Ratio: 50/50 for 1*2, 25/25/25/25 for 1*4 etc.

Fan out length: 1m or based on customers' needs

Fan out cable diameter: 250um, 0.9mm, 2.0mm, 3.0mm

Fanout tube color: white 0.9mm or 12colored 0.9mm or yellow for 2.0mm/3.0mm

Connector: SC/FC/LC/ST or without connector assemblyed

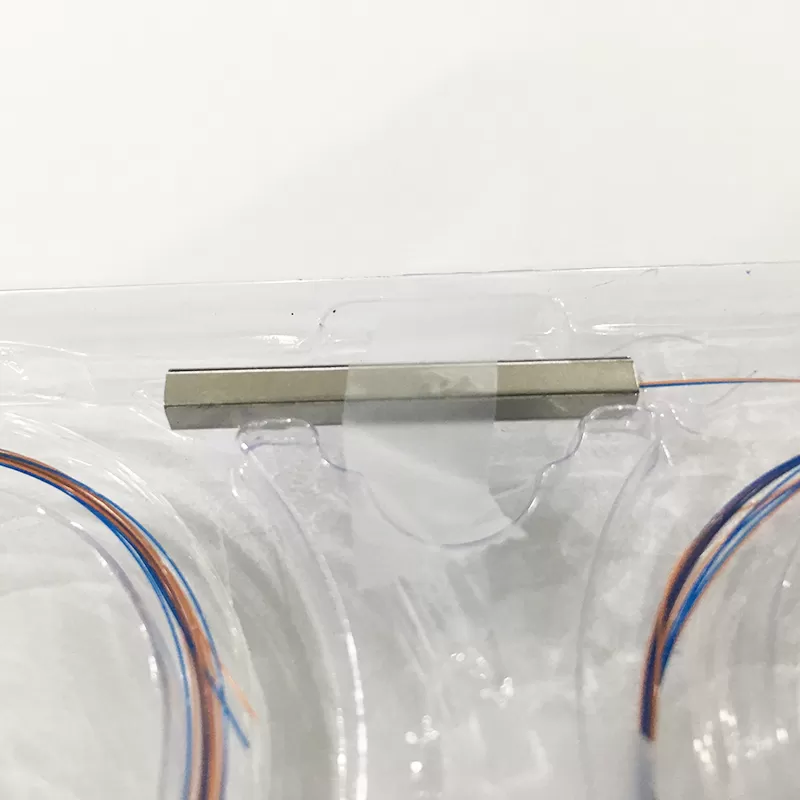

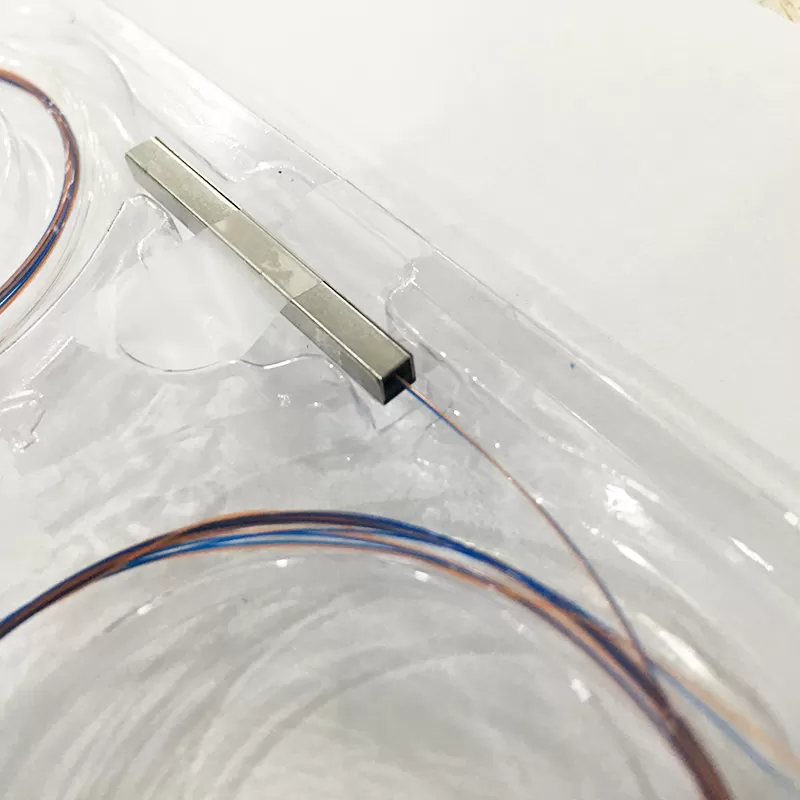

Spliting chip: packed in SST(stainless steel tube)

share:

Description Contact Us
Application:
1, FTTX (FTTB, FTTH, FTTC)
2, Passive Optical Networks (PON)
3, Local Area Networks (LAN)
4, CATV Systems
5, Test Equipments
Characteristics:
1, Low Insertion loss
2, Low PDL
3, High Return Loss
4, Uniform Power Splitting
5, Compact Design
6, Wide Operating Wavelength
7, Wide Operating Temperature
8, Excellent Environmental & Mechanical Stability
9, Qualified Under Telcordia GR-1221 and GR-1209

Specifications(1×N Splitters) packed in SST


Parameter

Specification

Operating Wavelength (nm)

1260--1650

Test Wavelength (nm)

1310/1550

Type

1 X 2

1 X4

1X8

1X16

1X32

Insertion Loss (dB) Max.

3.8

7.1

10.2

13.5

16.5

Loss UniformitdB

0.4

0.6

0.8

1.2

1.5

PDL (dB) Max

0.2

0.2

0.2

0.25

0.3

Dimensions (H*W*L)(nm)

60*7*4

60*7*4

60*7*4

60*12*4

80*20*6

Directivity (dB) Min

55

55

55

55

55

Return Loss (dB) Min

55

55

55

55

55

Operating Temperature ()

-40~+85

Storage Temperature ()

-40~+85

Fiber Length

>1M

Tube color

Input: white 0.9mm PVC tube 1M / Output:white 0.9mm PVC tube 1M

Fiber Type

G657A1 fiber

Connector Type

None


Dimensions Diagram and Label:

Mini module(SST) :1X2  1X4  1X8  (60*7*4mm)
