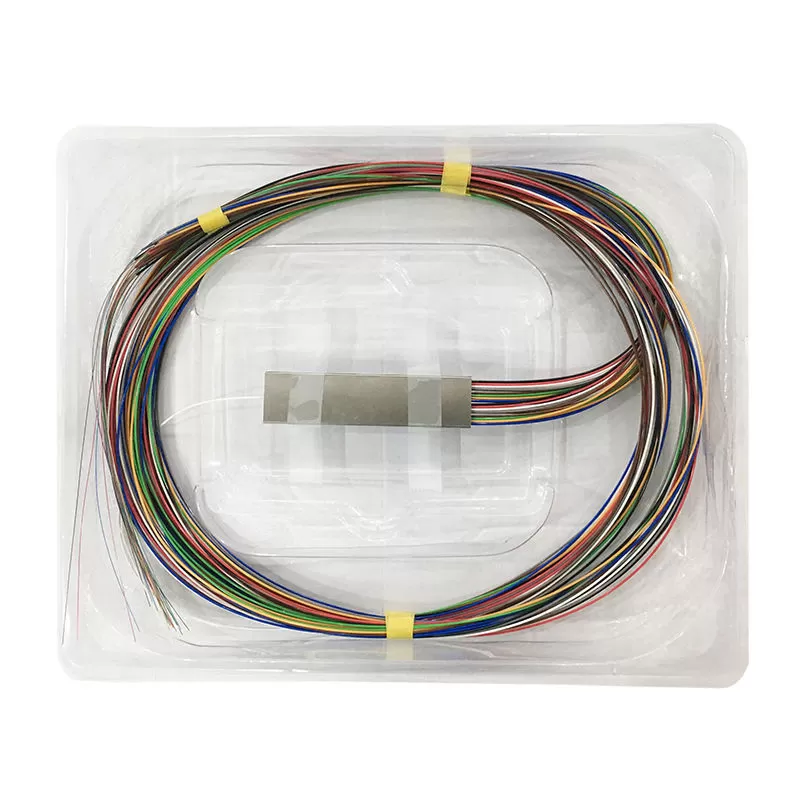

1x32 PLC Splitter

Model Number: 1x32 PLC Splitter

Structure: 1*N or 2*N

Ratio: 50/50 for 1*2, 25/25/25/25 for 1*4 etc.

Fan out length: 1m or based on customers' needs

Fan out cable diameter: 250um, 0.9mm, 2.0mm, 3.0mm

Fanout tube color: white 0.9mm or 12colored 0.9mm or yellow for 2.0mm/3.0mm

Connector: SC/FC/LC/ST or without connector assemblyed

Spliting chip: packed in SST(stainless steel tube)

Inquire Now Next Product

Description Contact Us

Application:

1, FTTX (FTTB, FTTH, FTTC)
2, Passive Optical Networks (PON)
3, Local Area Networks (LAN)
4, CATV Systems
5, Test Equipments

Characteristics:

1, Low Insertion loss
2, Low PDL
3, High Return Loss
4, Uniform Power Splitting
5, Compact Design
6, Wide Operating Wavelength
7, Wide Operating Temperature
8, Excellent Environmental & Mechanical Stability
9, Qualified Under Telcordia GR-1221 and GR-1209

Specifications(1×N Splitters) packed in SST

Parameter	Specification
Operating Wavelength (nm)	1260--1650
Test Wavelength (nm)	1310/1550
Type	1 X 2	1 X4	1X8	1X16	1X32
Insertion Loss (dB) Max.	3.8	7.1	10.2	13.5	16.5
Loss Uniformit（dB）	≤0.4	≤0.6	≤0.8	≤1.2	≤1.5
PDL (dB) Max	0.2	0.2	0.2	0.25	0.3
Dimensions (HWL)(nm)	6074	6074	6074	60124	80206
Directivity (dB) Min	55	55	55	55	55
Return Loss (dB) Min	55	55	55	55	55
Operating Temperature (℃)	-40~+85
Storage Temperature (℃)	-40~+85
Fiber Length	>1M
Tube color	Input: white 0.9mm PVC tube 1M / Output:white 0.9mm PVC tube 1M
Fiber Type	G657A1 fiber
Connector Type	None

Dimensions Diagram and Label:

Mini module (SST) :1X32 (80*20*6mm)

1x32 PLC Splitter
