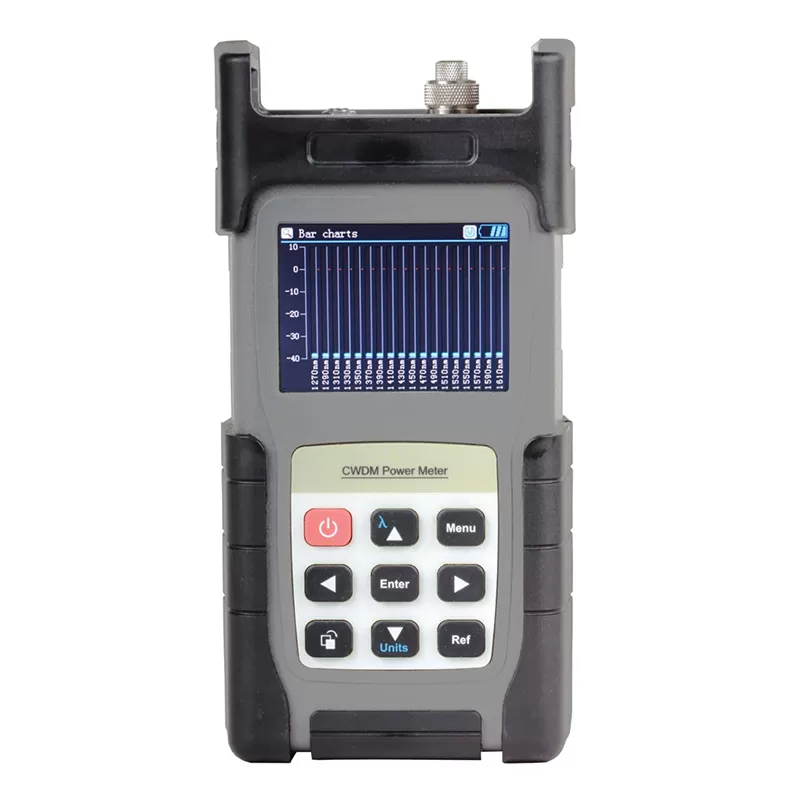

Sale Handheld CWDM Optical Power Meter 1270 1610nm 18 Channels

It measures and monitors optical power and attenuation value of 18 channels from wavelength 1270nm to 1610nm wavelength. All calibrated wavelengths will be tested simultaneously and all test results will show in the LCD screen.
This CWDM power meter features simple operation, quick response and high measurement accuracy which make it an ideal tester in CWDM system installation and maintenance.

Features
– Simultaneously test and show 18 wavelengths
– Friendly interface and easy operation
– Save and upload test results via USB port
– 1000 records
– Columnar graphics or list mode to show test data
– Color TFT-LCD display,high resolution 320*240
– Built-in clock and can edit test fiber number
– Quick start operation, requiring no warm-up time
– Light weight
Application
– Telecom Maintenance
– CATV Maintenance
– DDN Maintenance
– Fiber Optic lab testing
– Other Fiber Optic Measurements

Technical Parameter

Wavelength	1270~1610 nm
Number of Channels	18
Wavelength Resolution	20nm
Measuring Wavelength(nm)	1270/1290/1310/1330/1350/1370/1390/1410/1430/1450/1470/1490/1510/1530/1550/1570/1590/1610
Dynamic Range	-40 ~ +10dBm
Uncertainty	±0.5 dB
Resolution	0.01dB

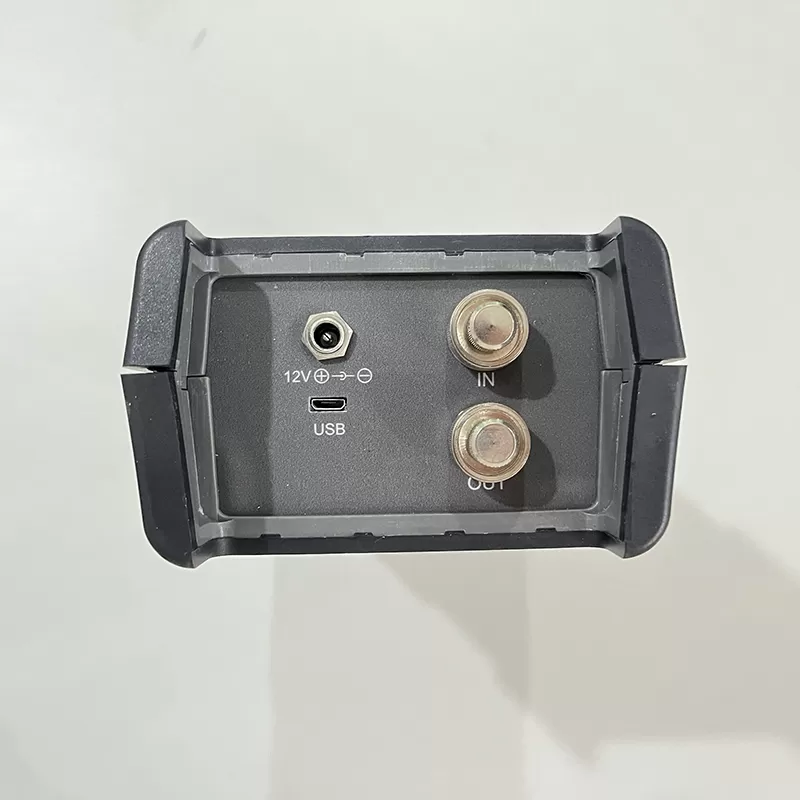

Optical Interface	FC SC ST (UPC)
Communication Port	USB
Date Storage Capacity	1000
Operation Temperature	-10 to +60 ℃
Power Supply	Rechargeable Battery / AC power adapter
Time of Operating	10 hours
Time of Auto-off	10 mins
Dimension	220mmx110mmx70mm
Weight	850g
