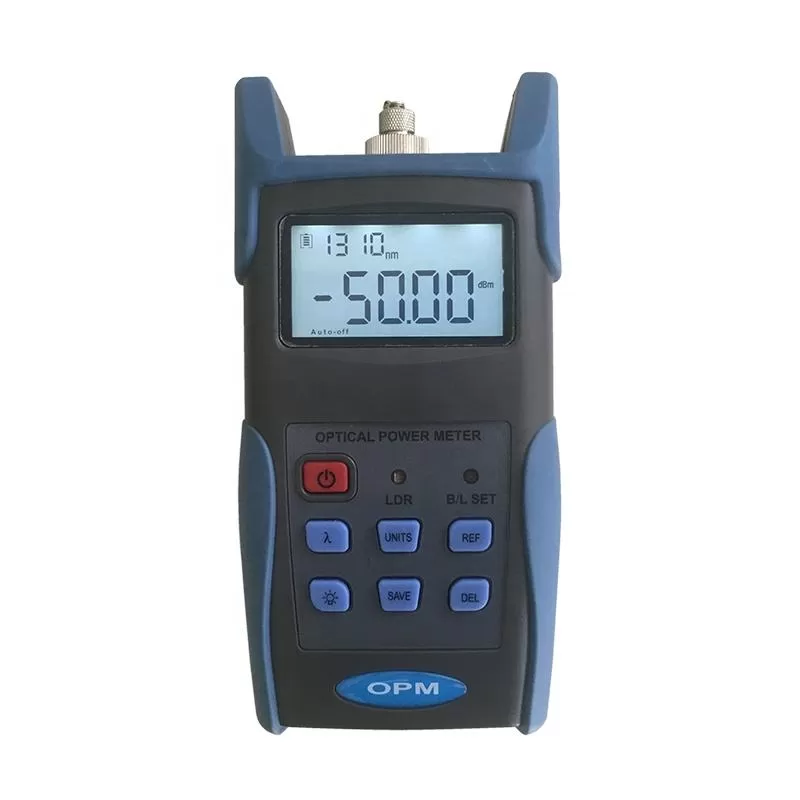

Handheld SM MM Automatic Wavelength Identification and Switching Fiber Optical Power Meters

Handheld SM MM Automatic Wavelength Identification and Switching Fiber Optical Power Meters

Model Number: WT3216A

Calibrated Wavelengths: 850,1300,1310,1490,1550,1625

Detector Type: InGaAs

Measurement Range: -70 ~ +6 dBm

Optical Connector: ST/SC/FC & 2.5mm Universal

Date storage capacity: 1000

Connector: FC,SC,ST interchangeable

Alkaline battery: 3*AA,1.5V

Dimension: 23.5*16*8cm

Weight: 0.75kg

Inquire Now Next Product

Description Contact Us

Handheld Optical Power Meter is a newly designed fiber optic tester, which aims at the installation, engineering acceptance and maintenance of fiber network. Compared with other usual power meters, the has more functions, like automatic wavelength identification, auto wavelength switching, intelligent backlight, data savage via USB port.

    Combined with ITS MATCHED handheld optical light source, it offers a quick and accurate testing solution on both SM and MM fibers.

Handheld SM MM Automatic Wavelength Identification and Switching Fiber Optical Power Meters

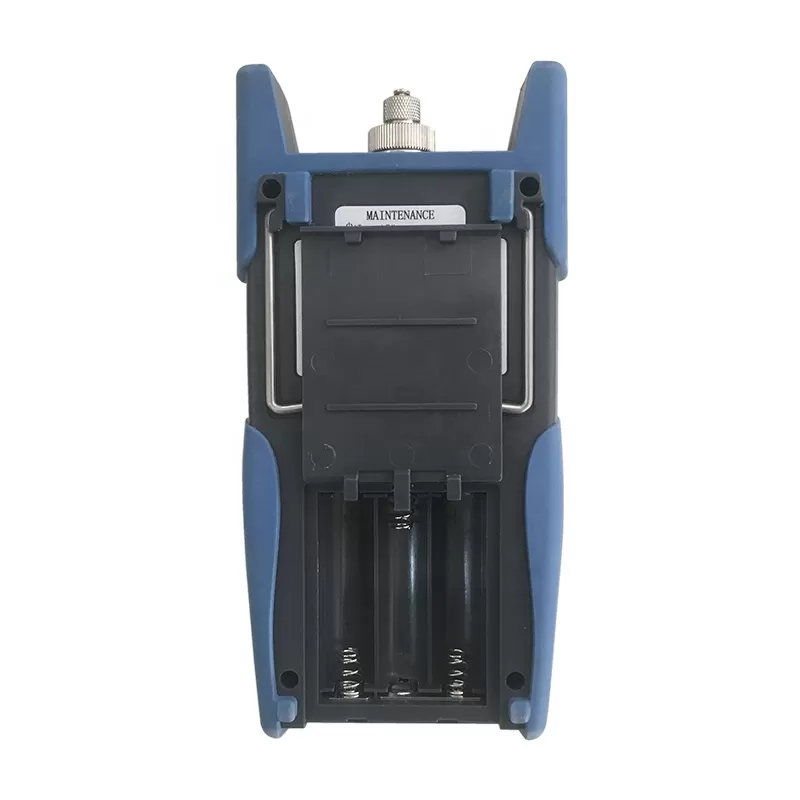

Two sides

Handheld SM MM Automatic Wavelength Identification and Switching Fiber Optical Power Meters

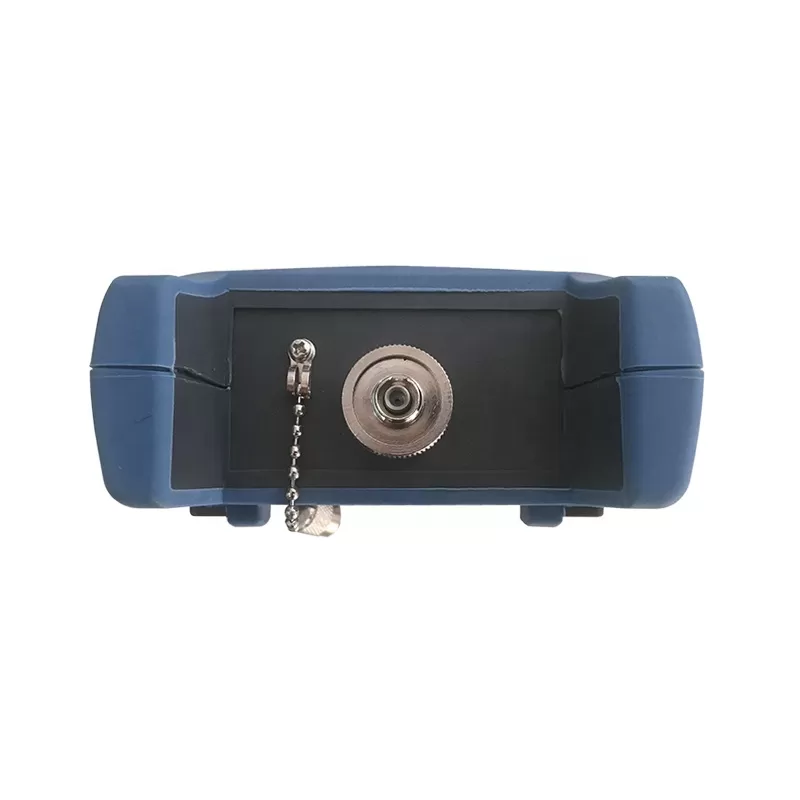

Top

(1)Dust CapIn order to protect the optical connector, avoid damage on the connector, so when not in use make sure that you place the dust cap over the connectors.

(2)Optical Connector。The standard of this power meter connector is PC &Φ2.5mm universal connector.pic.。Screw off the FC connector, it will turn to &Φ2.5mm universal connector.

Features:

* Wave ID—Auto wavelength identification & switching
* Frequency ID ---Auto frequency identification
* 2 types of backlight modes, manual or outside light intensity, which indicated by LED light red or blue color.
* Intelligent backlight
* 1000 records storage or download via USB cable
* USB communication port for saved testing records download
* Reference power level can be set up and stored
* User self-calibrating function
* Auto-off function
* Up to 200hrs battery life

Application
Maintenance Telecom
Maintenance CATV
Test Lab of Fiber Optic
Optical fiber sensors
Maintenance CATV
Test Lab of Fiber Optic
Optical fiber sensors

Model	A	C
Calibration Wavelength（nm）	850/1300/1310/1490/1550/1625
Detector type	InGaAs
Measurement Range（dBm）	-70～+6	-50～+26
Uncertainty (dB)	±0.15（3.5%）
linearity (dB)	±0.02
Display resolution(dB)	0.01
Frequency ID（Hz）	270，330，1K，2K
Wave ID（nm）	850,1300, 1310，1490，1550，1625
Date Storage Capacity	1000
Communication Port	USB
Standard Connector	FC /2.5mm universal
Optional Optical Connector	FC/SC/ST Interchangeable/2.5mm universal
Optional Optical Connector	LC/FC/SC/ST Interchangeable
Alkaline battery	3*AA，1.5V
Power Adapter(V)	8.4
Battery Operating time (h)	200 without backlight
Operation Temperature(℃)	-10～+60
Storage Temperature(℃)	-25～+70
Dimension(mm)	1759044.5
Weight(g)	231
