Non contact optical detection equipment multi-function tester for VFL Optical Power Meter network

Non contact optical detection equipment multi-function tester for VFL Optical Power Meter network cable RJ45 line finder

Model Number: OPM01

Connector Type: LC /SC

Detector type: InGaAs

Wavelength range: 780nm-1650nm

Maximum allowable input optical power: +13dBm

Power resolution: 0.01dB

Fiber type: SM/MM

VFL Working wavelength: 650nm±30nm

VFL Output Power: ≥1mW

Description Contact Us

Function:

* Non-contact probe power detection

* No need to carry test adapter cables for other interfaces

* Use anytime, start immediately

* Configuring the visual fault location function

* Support RJ45 line sequence function

* Exclusive LED lighting

* Support USB transmission, can import data into computer for processing

Non contact optical detection equipment multi-function tester for VFL power meter network cable RJ45 line finder

Optical Detection Equipment integrates OPM optical power detection function, VFL visual fault location function, RJ45 line hunting, line sequence function and other functions. The operation logic of the equipment is simple and direct, and it can easily cope with the construction of various communication networks and different test environments.

      Due to the unique probe-type and non-contact universal interface design, on-site engineers do not need to carry other various test conversion lines, and complete all tests in one machine in the true sense.

Application

• Optical module BER test

• Optical fiber network engineering maintenance and installation

• Teaching and research of optical communication

• FTTX network installation

Non-contact probe power detection

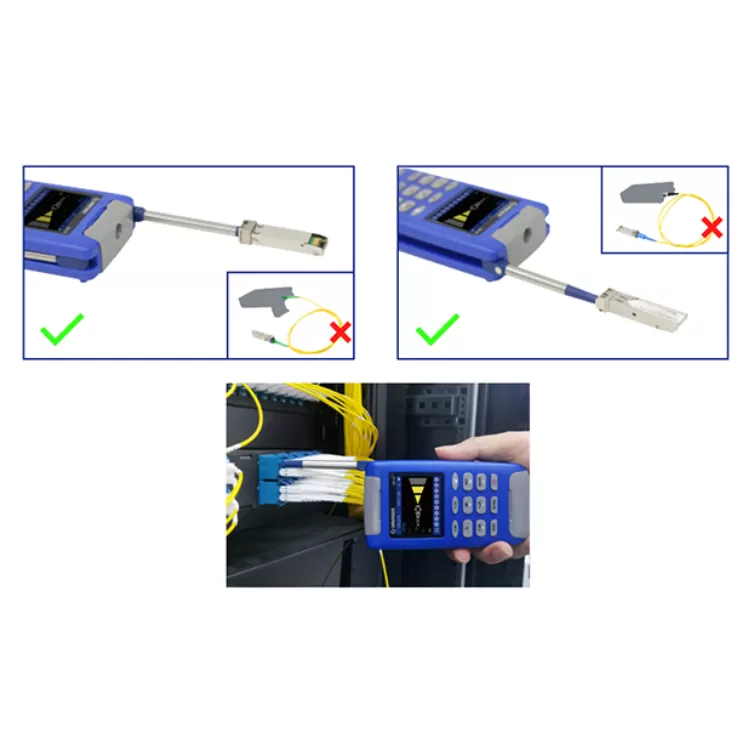

The optical detection equipment adopts non-contact probe power detection, which can be tested without touching the port or patch cord, thereby reducing the risk of fiber contamination or damage.

No need to carry test adapter cables for other interfaces :
In order to adapt to all common test scenarios on the market—The optical detector integrates 2.5 universal interface, 1.25 universal interface, SC probe interface and LC probe interface. When users complete various levels of measurement tasks, they will not need to carry other test adapter cables when encountering different interface types.
Use anytime, start immediately
The light detector starts up quickly and features an intuitive GUI for direct access to test functions. From shutting down to restarting the test, the overall time does not exceed 0.8s.
Configuring the visual fault location functionThe device is equipped with 2.5 and 1.25 non-contact red light output ports.
The non-contact design of the end face will not damage the end face due to plugging and unplugging. The design of the 2.5 and 1.25 dual-size red light output port is suitable for most application scenarios.

The device has two modes of emitting light signals (continuous, flashing) to identify fiber, breaks, macrobends.

Support RJ45 line sequence function   Through orderly signal transmission, the user can determine the line sequence arrangement of the current network cable. Verify whether the line sequence is normal through the device, and complete the network installation.

Support RJ45 line hunting functionIn a complex field environment, it is difficult to determine the head and tail of a line.The optical detector integrates a line-hunting function in the device, and one end of the network cable can be inserted into the optical detector, and the other end of the network cable can be found through the sub-unit.

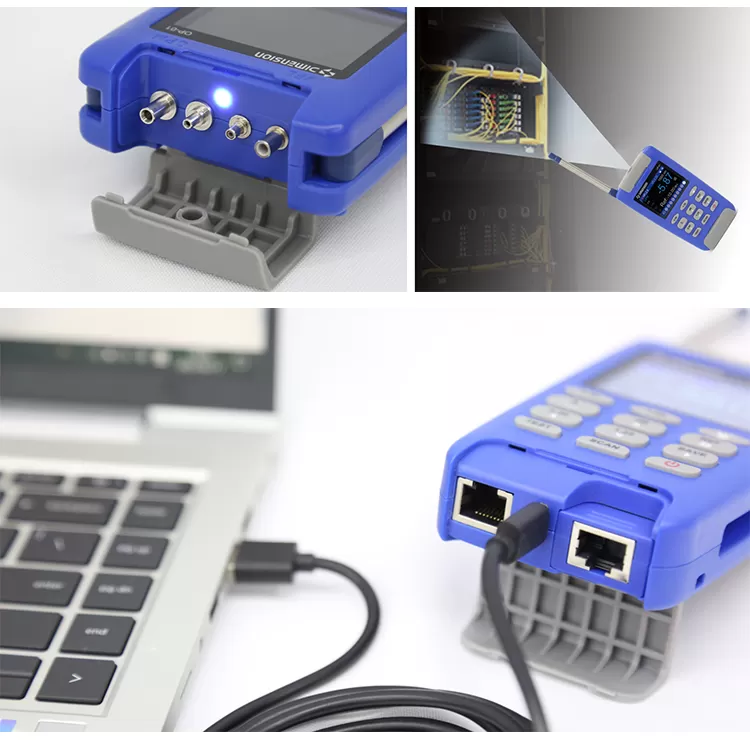

Exclusive LED lightingIn order to meet the needs of the light detector in the on-site environment with insufficient light and bring users a convenient experience, LED lights are added to both the main unit and the sub-unit, which can be turned on at the touch of a button.


Support USB transmission, can import data into computer for processingLarge-capacity memory can store 1000 measurement results, and supports importing to computer via USB.

Optical Power Meter Function*
optical connector
2.5/1.25 dual universal interface
LC, SC double folding probe probe
Detector type
InGaAs
Wavelength range
780nm~1650nm
Optical power detection range
+6~-70dBm(Typ.)
+6~-55dBm(Typ.)
Maximum allowable input optical power
+13dBm
Linearity
±0.5dB (+5~-60dBm)
±0.5dB (+5~-50dBm)
Repeatability
±0.05dB
±1.00dB
Uncertainty
±(5%+500pW)
Measurement type
dBm, dB, mW, uW, nW
Power resolution
0.01dB
Return loss
>55dB
Storage quantity
1000 pieces
Fiber Type
SM/MM
Visual fault location VFL
Working wavelength
650nm±30nm
Output power
≥1mW
Optical connector
2.5/1.25 dual universal interface
powered by
Power supply
Built-in rechargeable lithium battery
Working life
>8h

GET IN TOUCH AND REQUEST A QUOTE

Optical Power Meter Function*
optical connector	2.5/1.25 dual universal interface	LC, SC double folding probe probe
Detector type	InGaAs
Wavelength range	780nm~1650nm
Optical power detection range	+6~-70dBm(Typ.)	+6~-55dBm(Typ.)
Maximum allowable input optical power	+13dBm
Linearity	±0.5dB (+5~-60dBm)	±0.5dB (+5~-50dBm)
Repeatability	±0.05dB	±1.00dB
Uncertainty	±(5%+500pW)
Measurement type	dBm, dB, mW, uW, nW
Power resolution	0.01dB
Return loss	>55dB
Storage quantity	1000 pieces
Fiber Type	SM/MM
Visual fault location VFL
Working wavelength	650nm±30nm
Output power	≥1mW
Optical connector	2.5/1.25 dual universal interface
powered by
Power supply	Built-in rechargeable lithium battery
Working life	>8h
