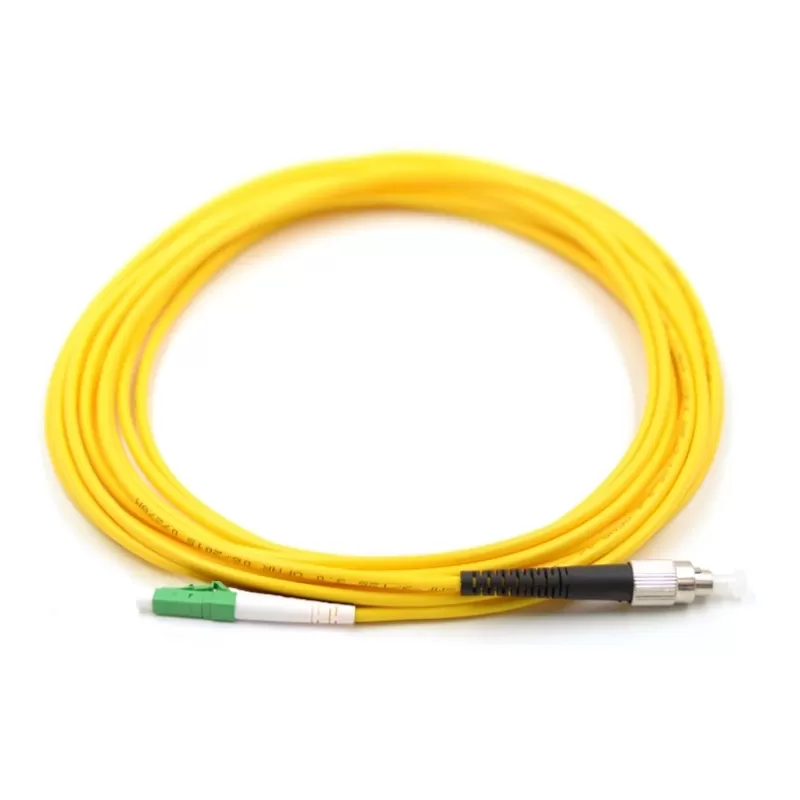

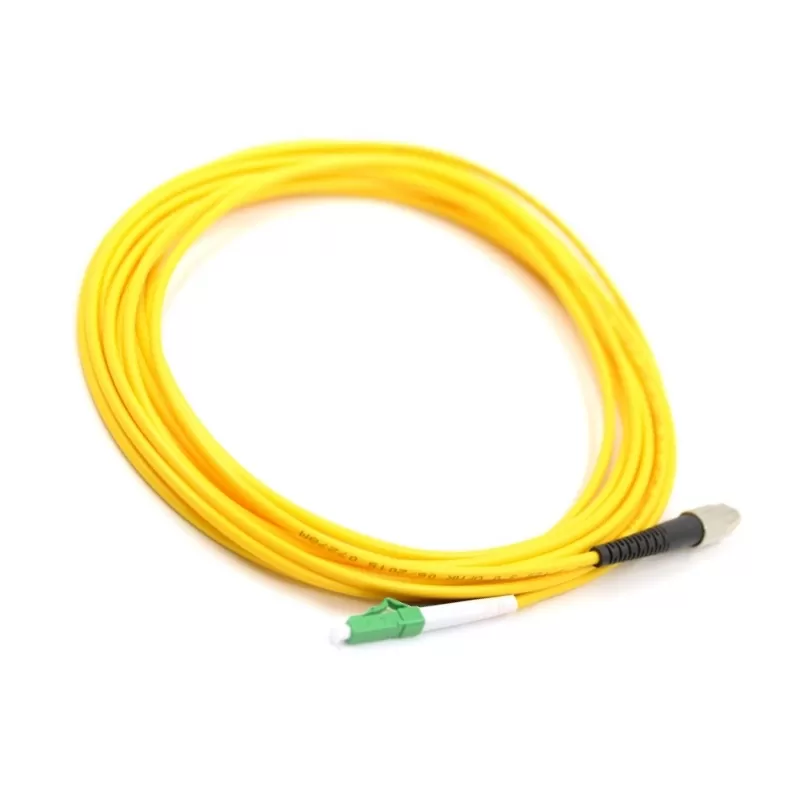

FC UPC to LC APC 9/125μm OS2 Singlemode Simplex Fiber Optic Patch Cable

FC UPC to LC APC 9/125μm OS2 Singlemode Simplex Fiber Optic Patch Cable

Jacket type : PVC, LSZH

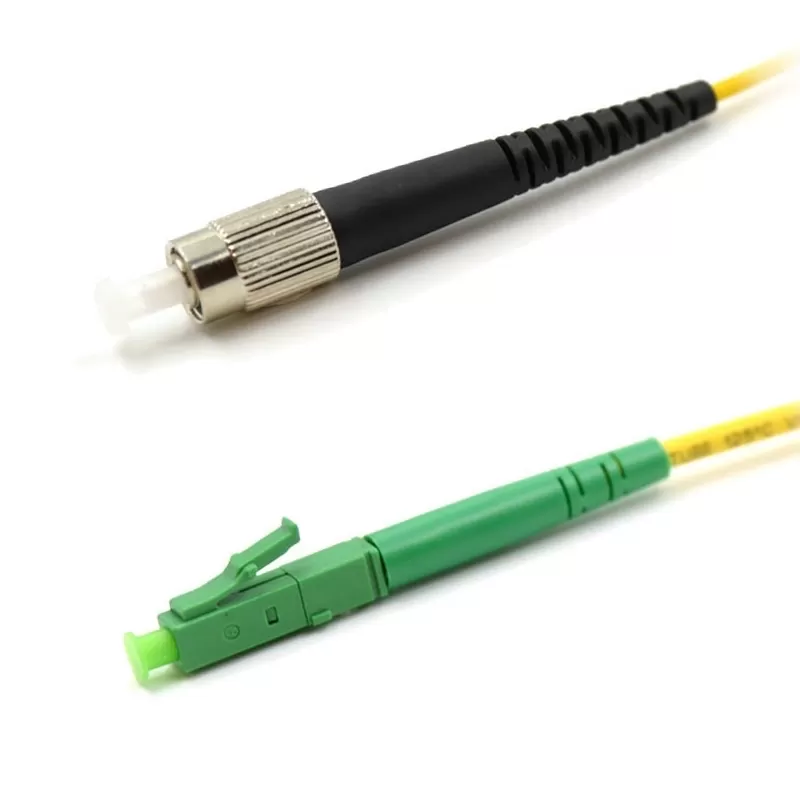

Connector : FC UPC to LC APC

Type :Simplex

Mode: 9/125μM SINGLEMODE OS2




share:

Description Contact Us

An economical option delivering robust performance with enhanced data transfer rates across extended distances, this premium single-mode fiber optic patch cable is meticulously crafted using SMF-28e fiber tailored for ethernet applications. Each link ensures exceptional durability, effectively resisting pulls, strains, and impacts during the installation process.



Prior to shipment, our cables undergo a thorough 100% optical inspection and insertion loss testing. The design incorporates a pull-proof jacket, safeguarding the Single-mode, OS2, 9/125 fiber from electrical interference, ensuring reliable connectivity.



Features :

---Low insertion and back reflection loss

---Good exchangeability

---Good durability

---High temperature stability

---Standard: Telcordia GR-326-CORE



Applications:

 * CATV; Active device termination;

 * Telecommunication networks;

 * Metro;

 * Local Area Networks;

 * Data processing networks;

 * Test equipment;

 * Premise installation;

 * Wide Area Networks;



Items
Single mode
Multimode
PC
UPC
APC
62.5/125
50/125
50/125 10G
Insertion Loss
<0.2dB
<0.3dB
Return Loss
   ≥45dB
   ≥50dB
  ≥60dB
 ≥35dB
Durability
<0.1dB typical change,
500 matings
Operating Temperature
-40 to +75
-40 to +75
Ferrule Hole Sizes
125.0+1/-0um, Conentricity:≤1um
125um,Conectricity:1≤3um
125.3+1/-0um, Conentricity:≤1um
127um,Conectricity:1≤3um
125.5+1/-0um, Conentricity:≤1um
128um,Conectricity:1≤3um
126.0+1/-0um, Conentricity:≤1um

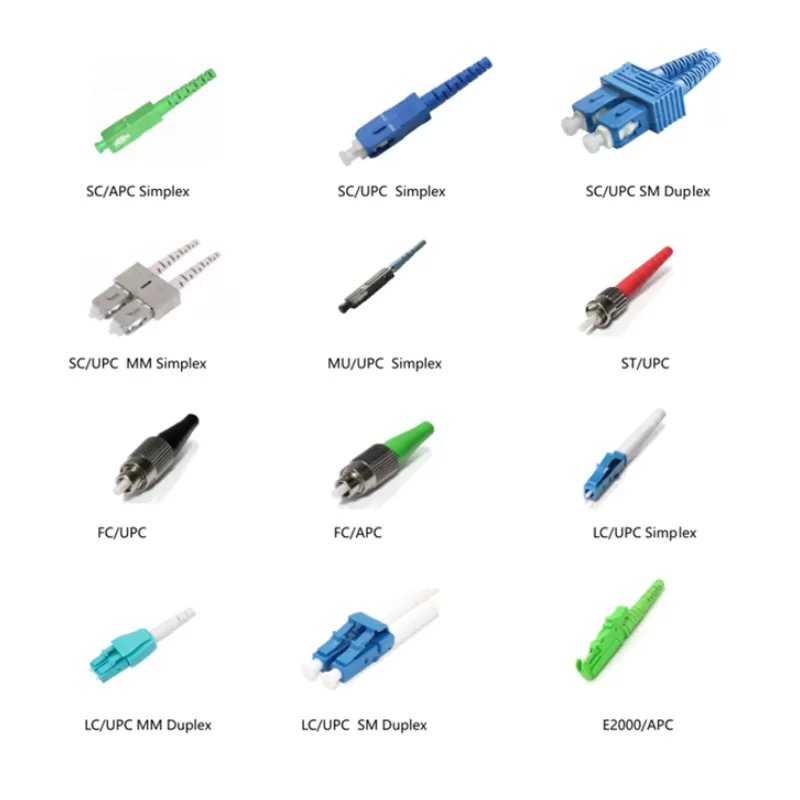

A Concise Overview of Fiber Optic Connectors

This straightforward guide is designed to assist you in comprehending the diverse array of fiber optic connectors available in the market and to facilitate a quick start. It's important to note that while there are numerous connector types and variations, our focus here will be on the most commonly utilized ones.



LC Connectors

These connectors prove ideal for high-density applications, thanks to their compact size and pull-proof design. Offered in both simplex and duplex versions, LC connectors feature a 1.25mm zirconia ferrule. Additionally, they incorporate a specialized latch mechanism, enhancing stability when integrated into rack mounts.



SC Connectors

Also referred to as Subscriber Connectors, Square Connectors, or Standard Connectors, SC connectors are non-optical disconnect connectors with a 2.5mm pre-radius-ed zirconia ferrule. Their push-pull design makes them well-suited for swiftly patching cables into rack or wall mounts. Available in simplex and duplex, SC connectors include a reusable duplex holding clip for facilitating duplex connections.



FC Connectors

Known as Ferrule Connectors or Fiber Channel Connectors, FC connectors employ a robust threaded coupling mechanism, making them particularly suitable for telecommunications applications and utilizing a non-optical disconnect.



ST Connectors

ST connectors, or Straight Tip connectors, employ a semi-unique bayonet connection with a 2.5mm ferrule. Renowned for their reliability and durability, ST connectors are excellent choices for field installations. They are available in both simplex and duplex configurations.
