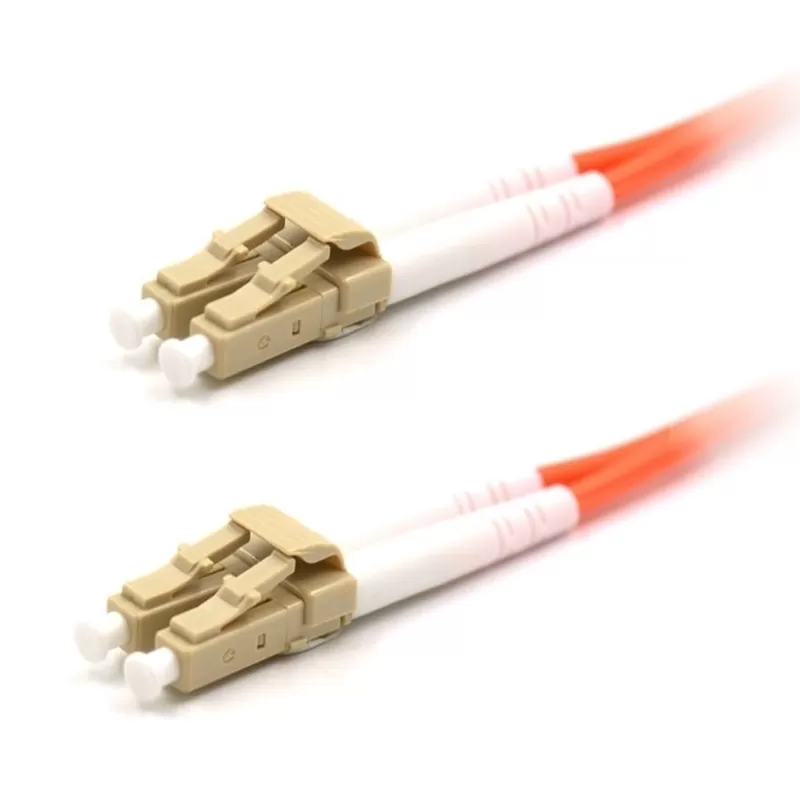

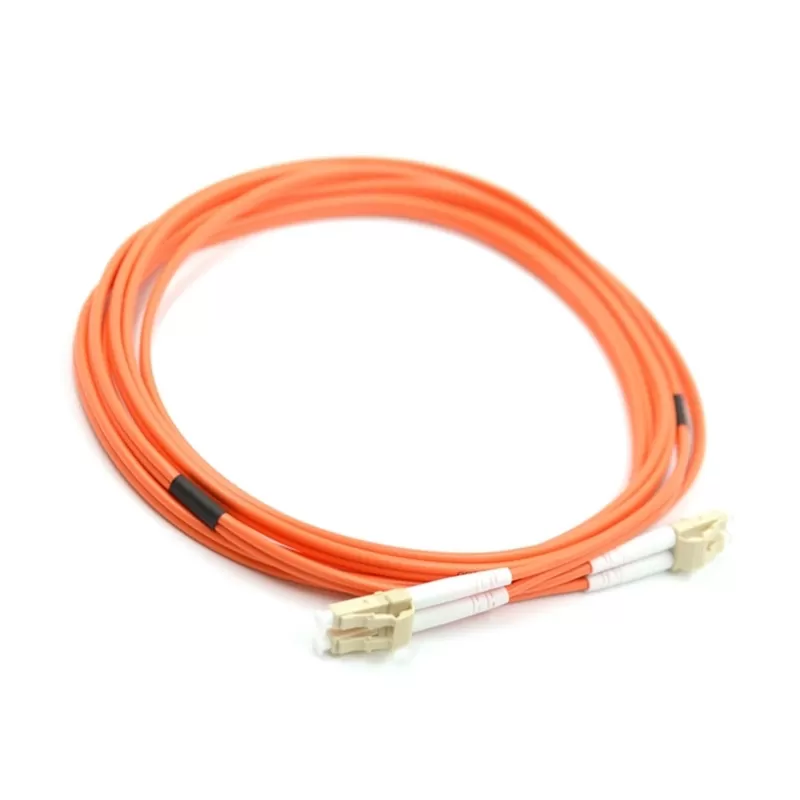

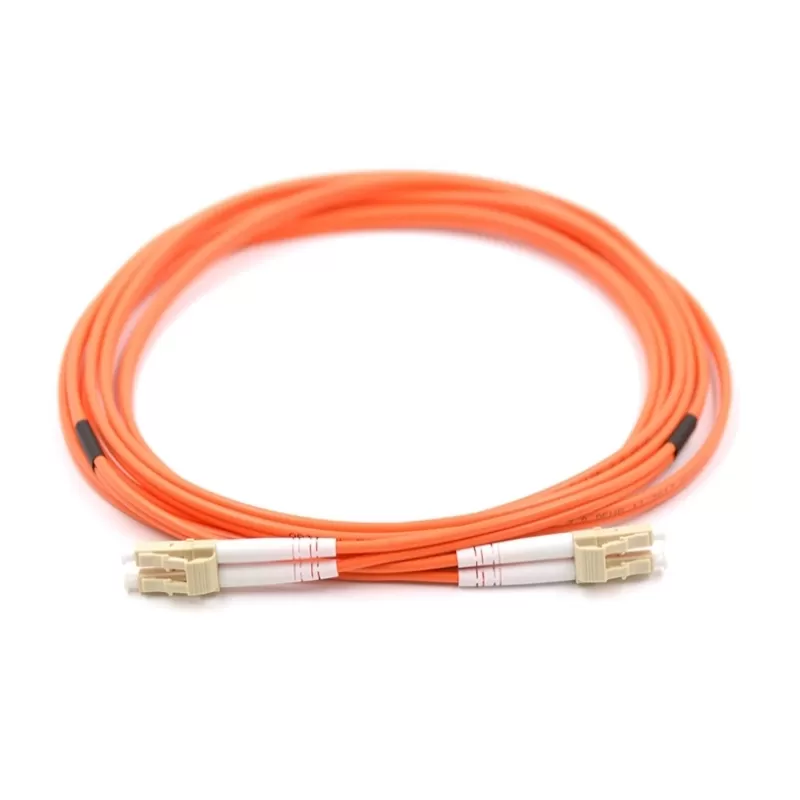

LC UPC to LC UPC 62.5/125μm OM1 Multimode Duplex Fiber Optic Patch Cable

An affordable option offering substantial bandwidth and rapid transmission rates across limited distances, this top-tier Multimode fiber optic patch cable is specifically crafted for ethernet applications. Each connection ensures exceptional durability, successfully withstanding pulls, strains, and impacts during installation.

Prior to dispatch, our cables undergo a comprehensive 100% optical inspection and insertion loss testing. The design incorporates a pull-proof jacket, providing a protective layer for the Multimode, OM1, 62.5/125 fiber, rendering it impervious to electrical interference.

Features :

---Low insertion and back reflection loss

---Good exchangeability

---Good durability

---High temperature stability

---Standard: Telcordia GR-326-CORE

Applications :

 * CATV; Active device termination;

 * Telecommunication networks;

 * Metro;

 * Local Area Networks;

 * Data processing networks;

 * Test equipment;

 * Premise installation;

 * Wide Area Networks;

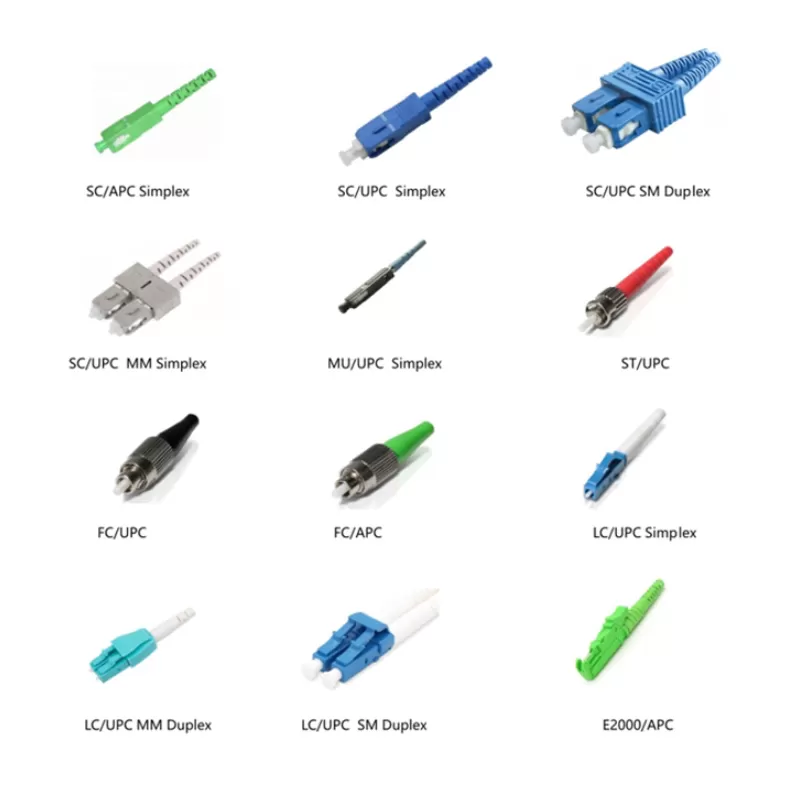

A Concise Overview of Fiber Optic Connectors

This straightforward guide is designed to assist you in comprehending the diverse array of fiber optic connectors available in the market and to facilitate a quick start. It's important to note that while there are numerous connector types and variations, our focus here will be on the most commonly utilized ones.

LC Connectors

These connectors prove ideal for high-density applications, thanks to their compact size and pull-proof design. Offered in both simplex and duplex versions, LC connectors feature a 1.25mm zirconia ferrule. Additionally, they incorporate a specialized latch mechanism, enhancing stability when integrated into rack mounts.

SC Connectors

Also referred to as Subscriber Connectors, Square Connectors, or Standard Connectors, SC connectors are non-optical disconnect connectors with a 2.5mm pre-radius-ed zirconia ferrule. Their push-pull design makes them well-suited for swiftly patching cables into rack or wall mounts. Available in simplex and duplex, SC connectors include a reusable duplex holding clip for facilitating duplex connections.

FC Connectors

Known as Ferrule Connectors or Fiber Channel Connectors, FC connectors employ a robust threaded coupling mechanism, making them particularly suitable for telecommunications applications and utilizing a non-optical disconnect.

ST Connectors

ST connectors, or Straight Tip connectors, employ a semi-unique bayonet connection with a 2.5mm ferrule. Renowned for their reliability and durability, ST connectors are excellent choices for field installations. They are available in both simplex and duplex configurations.
