Fiber alignment | Core/cladding alignment 1 Manual alignment |
Splicing time | 5S |
Heating time 18S | 15S |
Heating mode | Automatic heating ( Preheating ) |
Focus mode | Six motors Auto focus |
Applicable Fibers | SM(G 652&G.657),MM (G.651),DS(G.657),NZDS (G.655) |
Splice Loss | 0.025dB (SM),0.01dB (MM) 0.04dB ( DSINZDS ) |
Control technology | Real-time control and calibration of fusion ARC |
Return loss | Better than 60DB |
Fiber diameter | Cladding Diameter: 80-150um Coating Diameter: 100-1000μm |
Fiber Cleave Length | Coating less than 250um; 8-16mm Coating less than 250- 1000um:16mm |
Built-in lighting | easy for night operation |
Tension Test | Standard 2N |

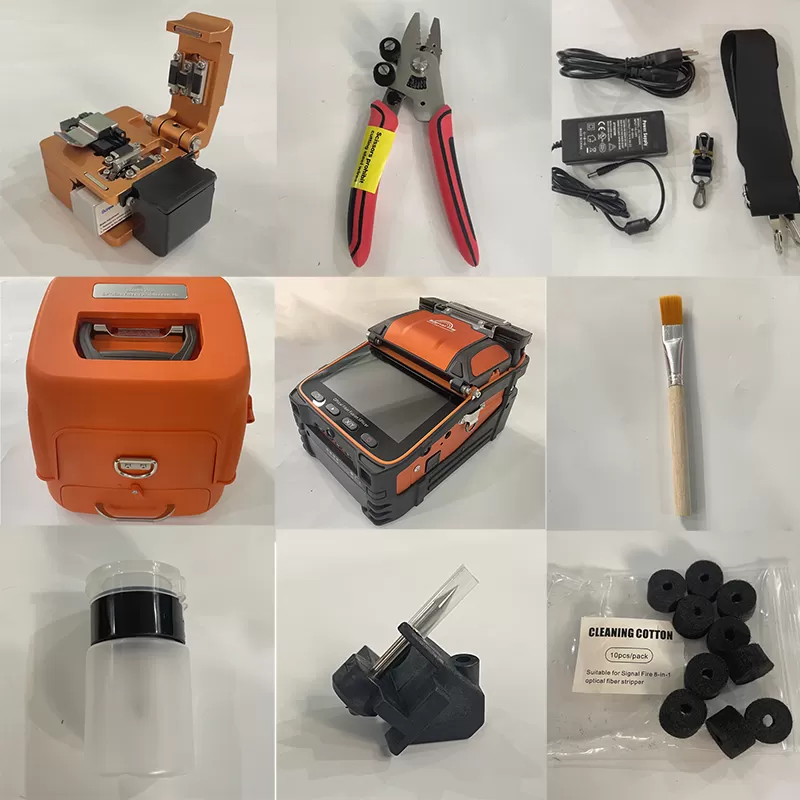

Fiber holders | 3 in 1 fiber holder, SM, MM, bare flber, pigtail, rubber insulated, multi fber cable |
Magnification | 300forXorYview,150forXorYview |
Screen | 5 inch TFT color display |
Splicing Mode | Nomal 1 high precision splicing |
Splicing record storage | Synchronize to the phone, the server to cloud storage unlimited |
Built-in battery | 7800 mA high-capacity lithium battery, charging time s 3.5 hours, continuous splicing and heating about 260 times |
Power supply | Input AC100-240V 50 / 60HZ, output DC13.5V1 4A, the current power mode can be identified, real-time detection of battery power |
Operating Condfitions | Temperature -15 ~ +50 C, humidity:<95% RH(no condensation) Working altitude: 0-5000m. Resist max. wind speed: S 15m/s |
Shrinkable tube | 60mm,40mm |
Visual Fault Locator | Power:1 5mw,2hzflashing And Constantly Bright Mode |
Optical Power Meter | Wavelength;850nm,1300nm, 1310nm, 1 490nm,1 550nm,1625nm Measuring Range:-70 ~ +6db Absolute Error:<30db(-50dbm ~ +3dbm Range) |
