Model Number: WT-319S
Applicable fibers: SM MM NZ-DS, EDF, Pigtail, Cable (rubber-insulated wire)
tube heating: 25s
splice time: 8s
Single package size: 43X32.5X26.5 cm
Single gross weight: 9.0 kg
Fusion splicer is used for joining two optical fibers end-to-end using heat, to fuse the two fibers together in such a way that light passing through the fibers is not scattered or reflected back by the splice, and so that the splice and the region surrounding it are almost as strong as the virgin fiber itself.
We has been dedicated to R & D, manufacturing fusion splicer from 2010, and successfully obtained 5 patents for the fusion slicer research. WT-319S is our latest developed 6 motors product. It is more concise and smaller in size and has obtained 2 patents for its new technologies.

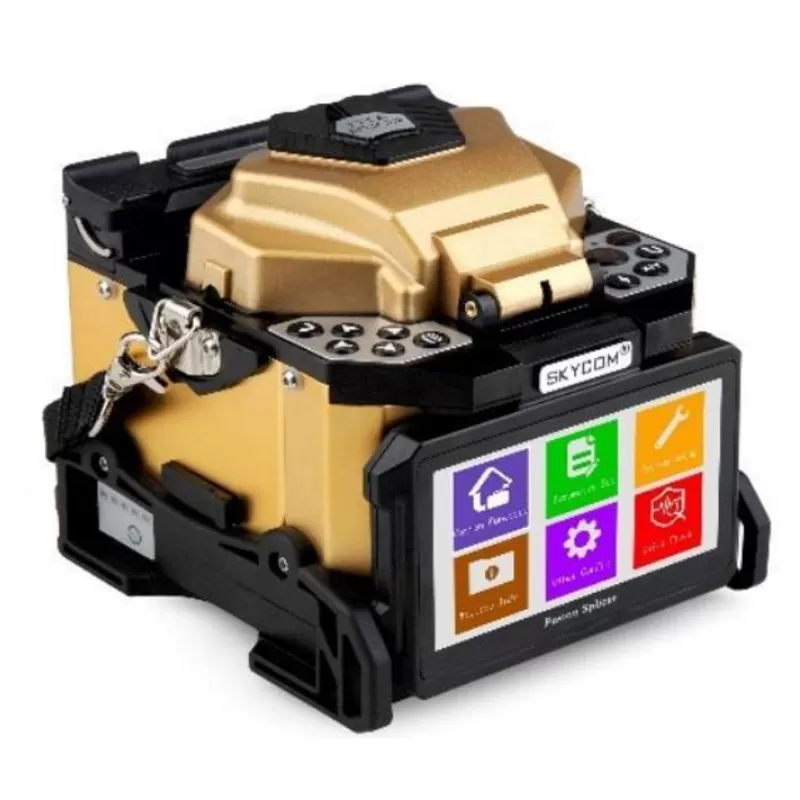

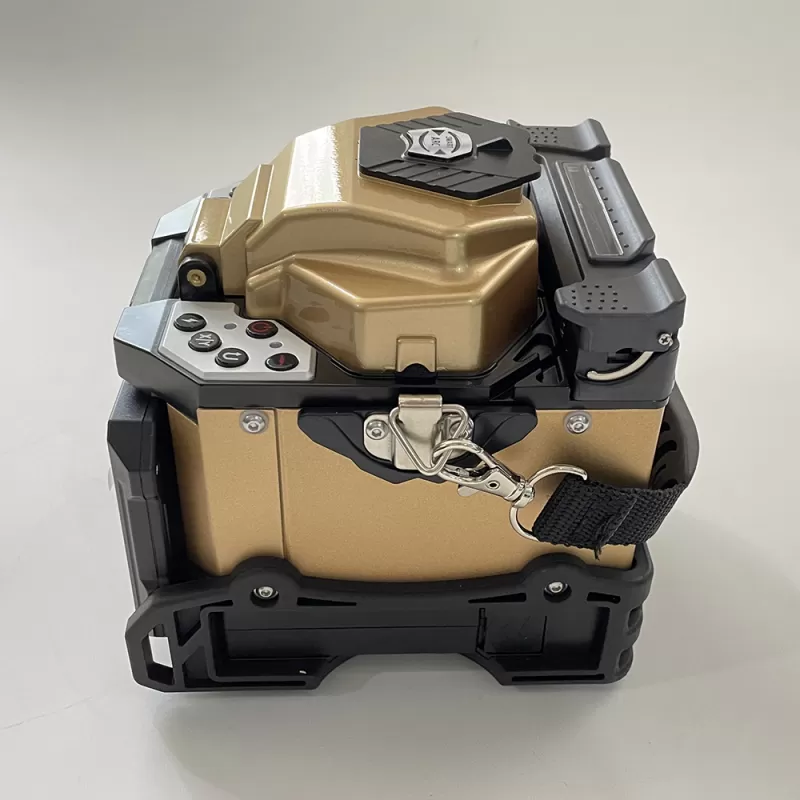

WT-319S Fiber Splicer Fusion Splicing Machine

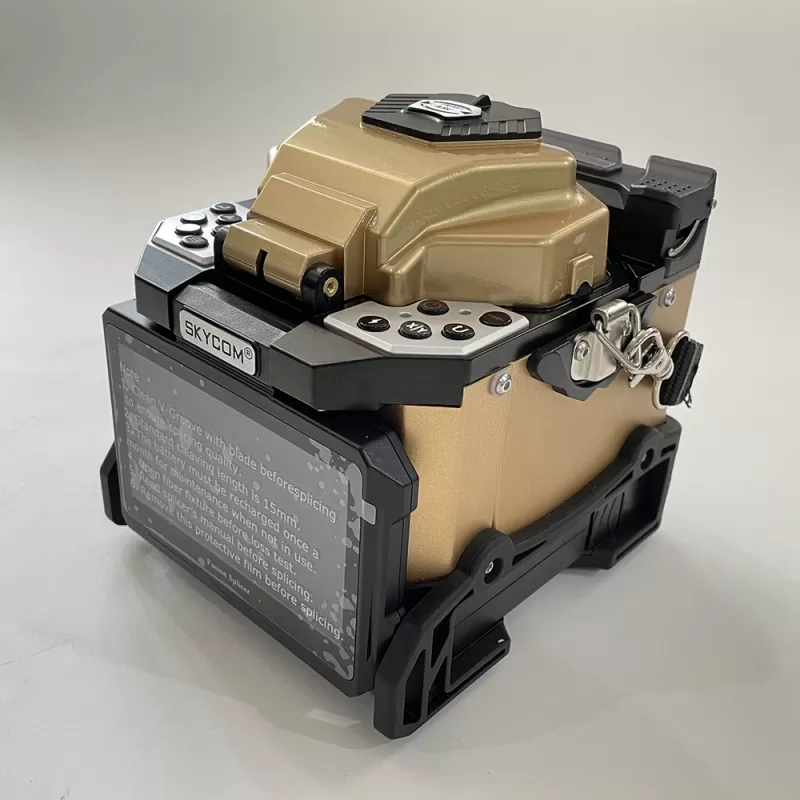

> 4.3 inches high resolution colorful LCD display, image can be turned according to position
> Average splice time: 8 seconds
> Average tube-heat time: 25 seconds
> 5200 5200mAh, Ultra-high Battery
> Multistage Amplification, Magnification up to 520X Which Makes Clear Image
> New developed technology providing strong wind and dust resistance
> Splicing mode: Auto & Manual & Full-Auto
> USB Port
> Automatic Detectio
Applicable Fibers | SM, MM, NZ-DS, EDF, Pigtail, Cable (rubber-insulated wire), SC/LC/FC connector (optional function) |
Average Splice Loss | 0.02dB(SM), 0.01dB(MM), 0.04dB(NZDS), 0.04dB(EDF) |
Return Loss | ≥60dB |
Tension Test | 2.0N(200gf)(Standard) |
Typical splicing time | 8 seconds |
Typical heating time | 25 seconds |
Splicing Program | 50 groups |
Protection Sleeve Length | 20mm, 40mm, 60mm |
Operating Language | Chinese, English, French, Portuguese, Spanish |
Operating Conditions | -10~+50°C(operation temperature),0~95% RH(humidity), 0~5000m(altitude) |
Power Supply | AC adaptor: 100~240V input voltage, 50/60Hz; 12V, 5A output voltage(DC) Inner lithium battery: 57.75Wh |
Monitor | 4.3 inches high resolution colorful LCD display |
Fiber Image Magnification | X or Y axis Separately views 520 times magnification, or Simultaneously 220 times |
Storage of Splice Result | 6,000 groups of latest splice results |
Splicing Model | Auto & Manual & Full Auto |

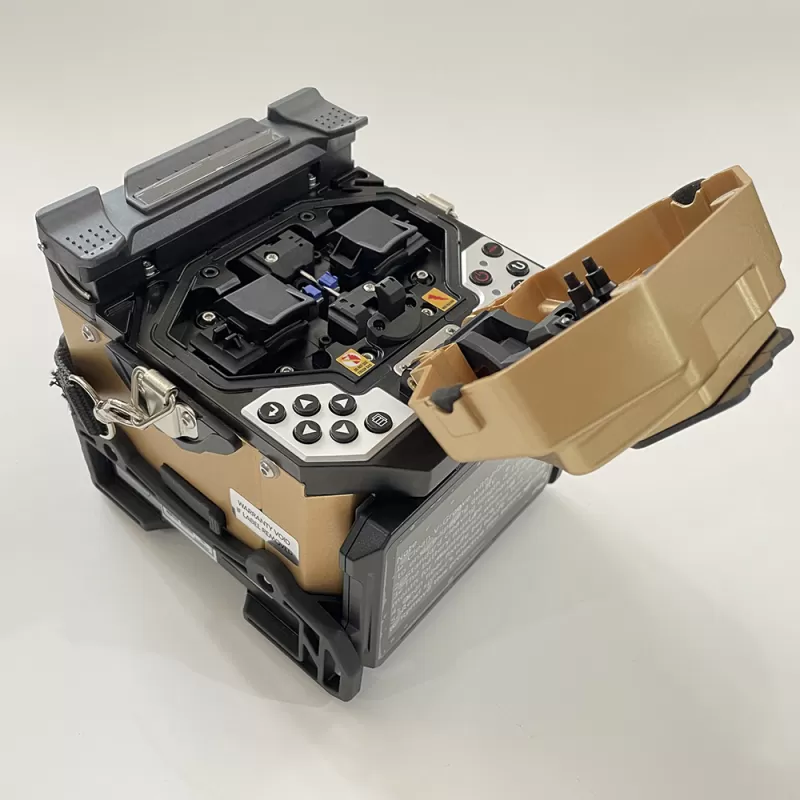

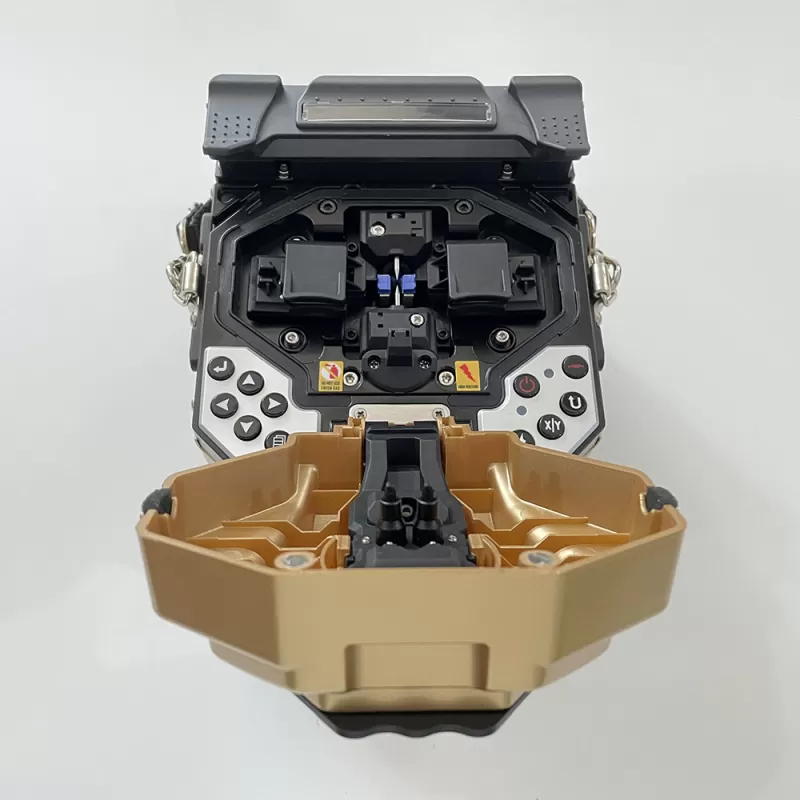

Optical Fiber Fixture | 3-in-1 cutting fixture; Multipurpose 1+N fixture (T-308XF, for SC/LC/FC connector) |
Dimensions | 120(W)*120(D)*130(H)mm; |
Weight | 1.29kg; |
Applicable Fibers | SM, MM, NZ-DS, EDF, Pigtail, Cable (rubber-insulated wire), SC/LC/FC connector (optional function) |
Average Splice Loss | 0.02dB(SM), 0.01dB(MM), 0.04dB(NZDS), 0.04dB(EDF) |
