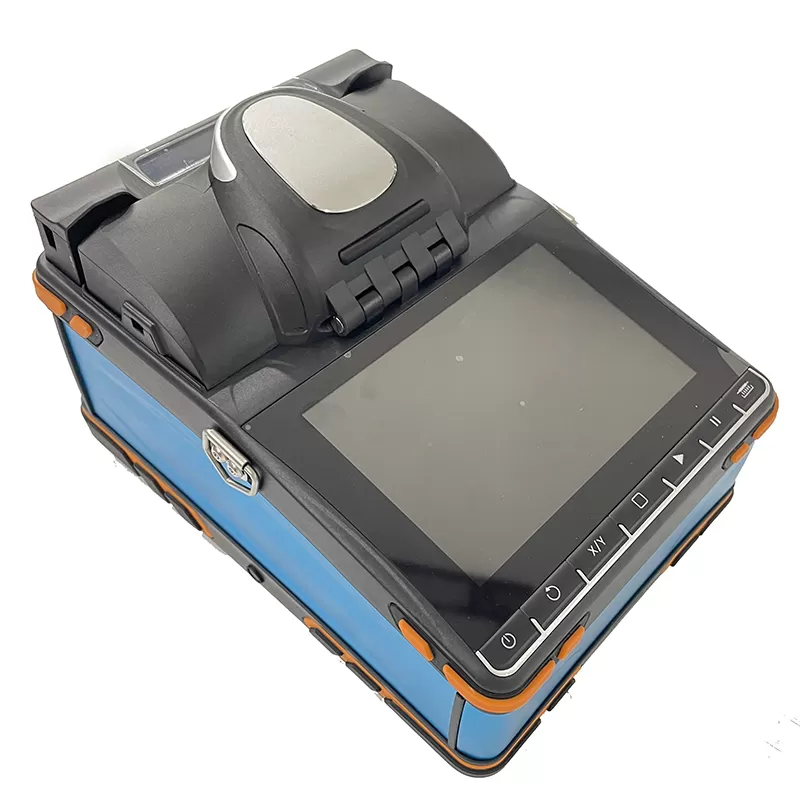

Automatic Optical Fiber Fusion Splicer Machine manual 6 Motor With VFL OPM

Model Number: WT-K5

Applicable fibers: SMF MMF DSF NZDSF

Fiber diameter: Cladding:80-150um ;Coating:0.1-3mm

Splicing method: Auto/Manual

Splicing time: 8s(SMF typical value)

Tube heating: 18S

Heating time: 0-60s

Inquire Now Next Product

Description Contact Us

Description:

1. It is forbidden to click on the touch screen with sharp objects, and do not use force to impact the touchscreen.

2. It isforbidden to drip organic solvents or pollutants on the touch screen, such as acetone, engine oil, antifreeze, ointment, etc, otherwise it may cause the LCD screen to work abnormally.

3. Wipe and clean the LCD screen with silk cloth or soft fabric.

4. Depending on the viewing angle of the viewing screen, the brightness of the display will be different. And there may be some black, red, blue or green dots on the screen. These are not the fault LCD display, it is a natural phenomenon.

Automatic Optical Fiber Fusion Splicer Machine manual 6 Motor With VFL OPM

Application

1. It is forbidden to use the fusion welding machine in a flammable and explosive environment

2. Do not touch the electrode rods when the fusion welding machine is turned on.

3. Do not expose the welding machine fire , electric shock

4. Use only dedicated charger , use of other adapters may cause damage to the welding machine

Technical Parameter

Applicable fber	SMF (G.652), MMF (G.651),DSF(G.653),NZDSF(G.655)
Fiber diameter	Cladding: 80-150um; Coating:0.1-3mm
Splice loss	0.02dB(SMF),0.01dB(MMF),0.04dB(DSF/NZDSF) are measured by ITU-I shear method
Alignment method	Core, cladding
Welding time	8s (SMF typical value)
Splicing method	Auto/Manual
Focus mode	Six-motor auto focus
Pull test	1.96-2.25N
lmage display	Capacitive 5.5inch touch LCD screen
Magnification	300(X/Y),150(X/Y synchronization)
Weld record	1000 groups (K5Ssupports cloud storage)
Typical heating time	18s
Heating time	0-60s
Heat shrinkable sleeve	20mm、30mm、40mm、50mm、60mm
OPM	Range: -70~+3 dBm /Wavelength: 850~1625nm Uncertainty: ± 0.5%
Red light (VFL)	≥10mW
Operation interface	GUI graphical user operation interface

Standard placement

Electrode life	3000times
Lighting method	Auto / Manual
Battery capacity	7800mAh (Typical value of welding and heating cycle 240 times) Charging
Charging time	time:≤3.5h
Output voltage	DC 11.1V
USB port output	5V/500mA
Charger	Input: AC 100-240V,50/60Hz, Output:DC13.5V/4A
Working environment	TEMP:-15C-+50℃/RH<95％（non-condensing）/ASL:0-5000m/WS:S 15m/s
Storage conditions	Temperature: -40C-+80℃/Humidity:0-95%/Battery:-20C-+30℃Length
Welding machine size	X width Xheight: 190mmX146mmX117mm
Welding machine weight	1.74KG (with battery), 1.24KG (without battery)
Toolbox size	410mmX325mmX135mm(K5)
Toolbox weight	4.5Kg(K5)
