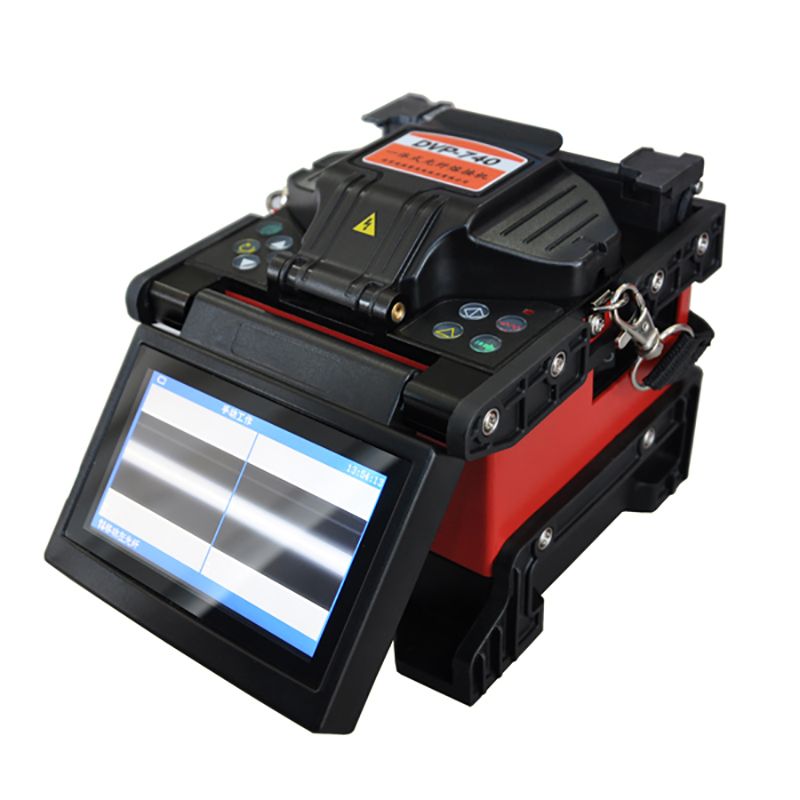

Model Number: dvp 740 Fusion Splicer
Protection sleeve length: 20mm, 40mm, 60mm
Fiber cleaved length: 8-22mm
Tension test: 2.0N(200gf)(Standard)
Dimensions/Weight: 142(D)x122(W)x138(H)mm 1.95kg
Description:
1. It can applicable fibers such as SM/MM/DS/NZ-DS/EDF.
2. 8 Sec. splice time, 40 Sec. tube-heat time.
3. Reversible monitor with control panel on each side.
4. Compact & Light weight (3.3kg with battery).
5. SYSTEM TEST ensures the best working condition.
6. Auto check fiber end face.
7. Auto calibrate parameters.
8. Store 8000 groups of splice results, and can connect to computer
9. 8 Kind of Language options: English, Korean, Russian, Portuguese, French, Spanish, German, Chinese.
10. Large capacity internal battery ( Liion battery 12V 10,000mAh can guarantee the outdoor work. Normally when the user operate by the right way, the battery can really offer more than 200 times of continuous splices and heats when it is used in outside.)
Feature:
* Compact & Light weight
* Applied for Fibers ,Cables and SOC(splice-on connector)
* Integrated Holder Design
* Fully Automatic , Semi-automatic and Manual Operation
* Shockproof, Drop resistance
* Power saving function
* 4.3 inch Color LCD monitor
* USB&DC interface
| Applicable fibers | SM, MM, DS, NZ-DS(G655), EDF, Bending Loss Insensitive fiber(G657), Pigtail, Drop cable and connector. |
| Fiber cleaved length | 8-22mm |
| Average splice loss | 0.02dB(SM),0.01dB(MM),0.04dB(DS),0.04dB(NZDS) |
| Return loss | ≥60dB |
| Tension test | 2.0N(200gf)(Standard) |
| Protection sleeve length | 20mm, 40mm, 60mm |
| Splice Program | 5 groups of preset programs, 75 group of manual setting |
| Language | English, Korean, Russian, Portuguese, French, Spanish, German, Chinese. |
| Environment conditions | -25~+50℃ (operation temperature), 0~95%RH (humidity), 0~5000m (altitude) |
| Storage environment | -40~ +80℃ (temperature) , 0~95%RH (humidity) |
| Power supply | AC adaptor: 85~260V input voltageInternal battery: 12V, 6Ah, up to 120 times of continuous splice and heat |
| Dimensions/Weight | 142(D)×122(W)×138(H)mm/1.95kg |

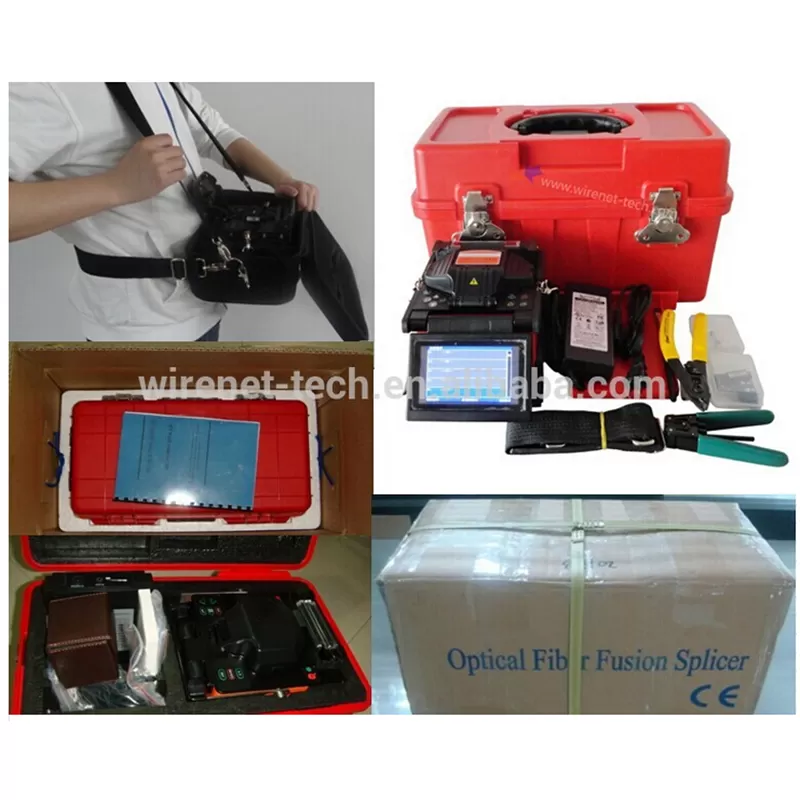

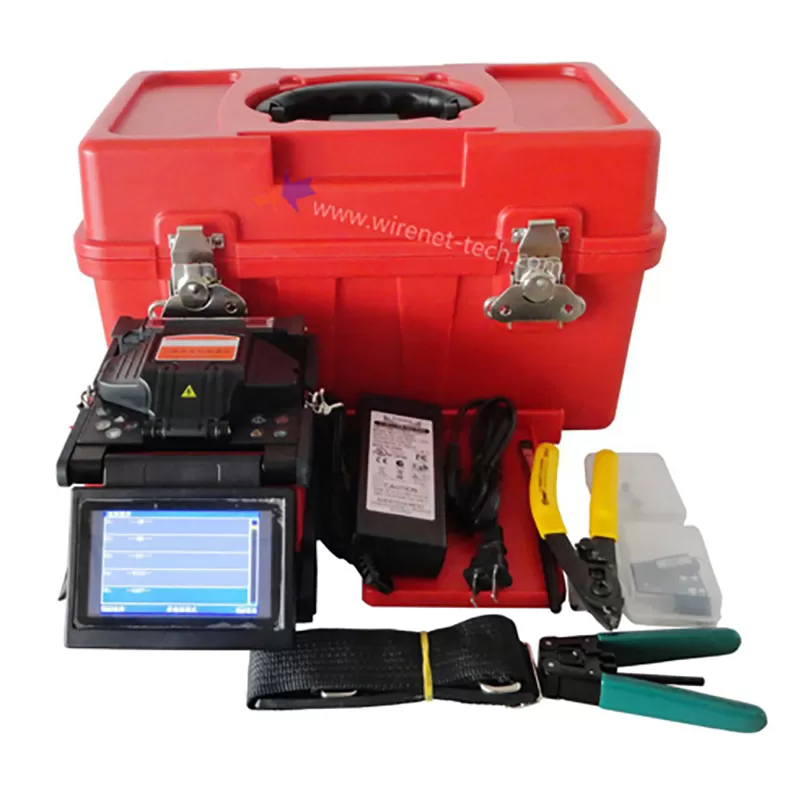

Standard Package:
| Main body | Internal battery | charger | Spare Electrodes | Cooling tray | Manual instruction |
| Cary case | Fiber cleaver | Fiber stripper | AC adapter | AC power cord |
