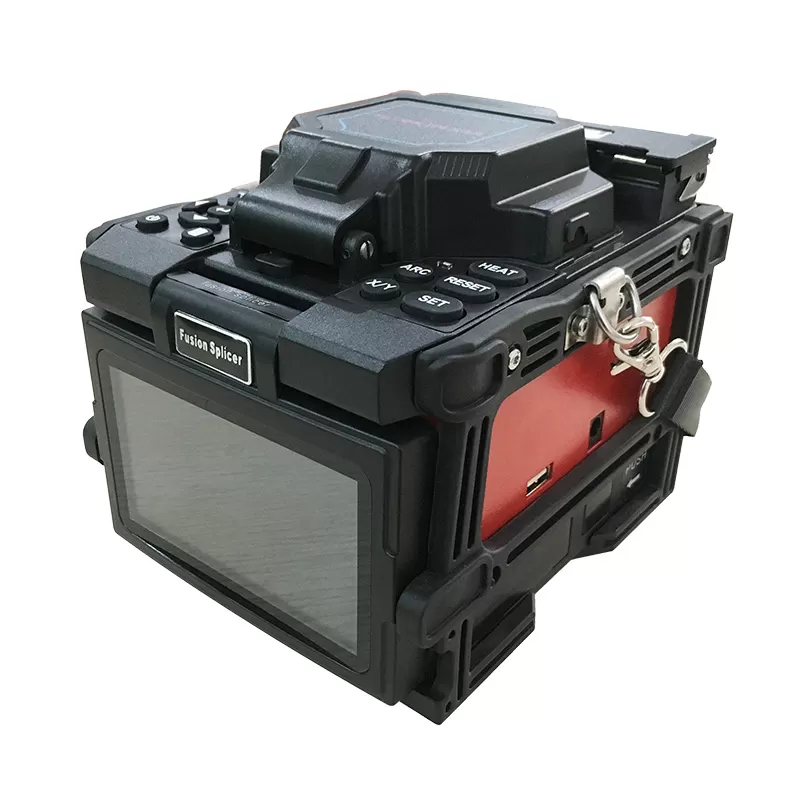

Fiber Optic Fusion Splicer WT-310D

Model Number: WT-310D

Splicing Type: SM,MM,DS,NZDS

Splicing Mode: Manual,Half Auto,Auto

Splicing Time: ≤6s

Heat Time: ≤18s

Cleaved Length: 8~16mm

Single package size: 25X25X30 cm

Single gross weight: 11.000 kg

Inquire Now Next Product

Description Contact Us

This FTTH Fusion Splicer, with high performance price ratio, is the main product. With smart appearance, reliable quality, This FTTH Fusion Splicer is a special design for the installation, operation and maintenance of optical fiber specially design precision, durable, convenient optical fiber construction instrument. Widely used in the construction, inspection, maintenance of fiber cable.

Features
6s splicing and 20s fast heating;
Electrodes discharging more than 4000 times;
USB port for software updating and data records exporting;
PAS image digital processing system, core to core alignment;
360° rubber armor protects machine from shock, water and dust;
5200mAh Li-battery, more than 250 cycles splicing&heating;
Multi-function holder clamps, apply to 250um fiber, 0.9mm/3.0mm fiber, drop cable etc.

Applicable fiber	SM(G.652), MM(G.651), DS(G.653), NZDS(G.655), others(including G.657)
Diameter of cladding	80 -150μm
Diameter of coating	160 – 900μm
Typical splice loss	SM:0.02dB, MM:0.01dB, DS:0.04dB, NZDS:0.04dB
Return loss	>60db
Fiber cleaved length	10-16mm (coating diameter< 250μm ), 16mm(coating diameter: 250-1000μm )
Splicing program	40 groups
Operate mode	Manual, Automatic
Auto-heating	Available
Typical splicing time	6 seconds

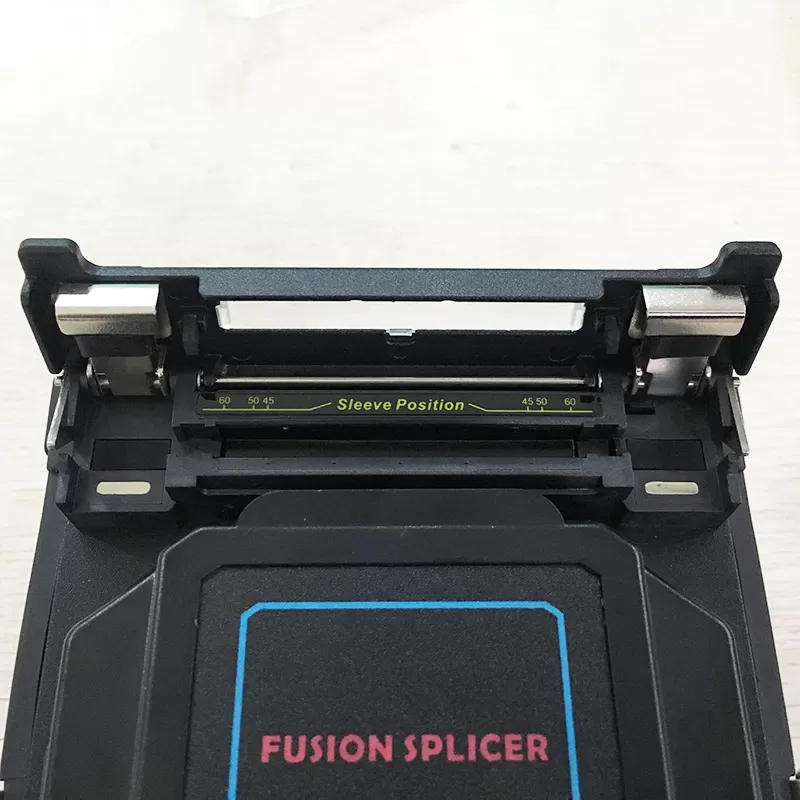

Tube heating time	20 seconds for 60mm and 40mm shrinkable sleeves
Fiber view magnification	250X(X or Y view), 125X(X and Y view)
Viewing method and display	2 CMOS cameras, 4.3 inch color LCD monitor
Storage of splice result	4000 results
Loss evaluation	Available
Tension test	1.8-2.2N
Interface	GUI menu interface, easier operation
Battery capacity	5200mAh Li-battery, typical 250 cycles(splice and tube heat)
Power supply	Adaptor, input: AC100-240V(50/60HZ),output: DC11-13.5V
Electrode life	More than 4000 ARC discharges, can be replaced conveniently
Terminals	USB 2.0 port, for uploading splice results and upgrading software
Operating condition	Altitude: 0-5000m, Humidity: 0-95%, Temperature: -10℃~+50℃;Wind speed: max 15m/s
Dimension	160mm(L)x136mm(W)x140mm(H)
Weight	2.10kg including battery

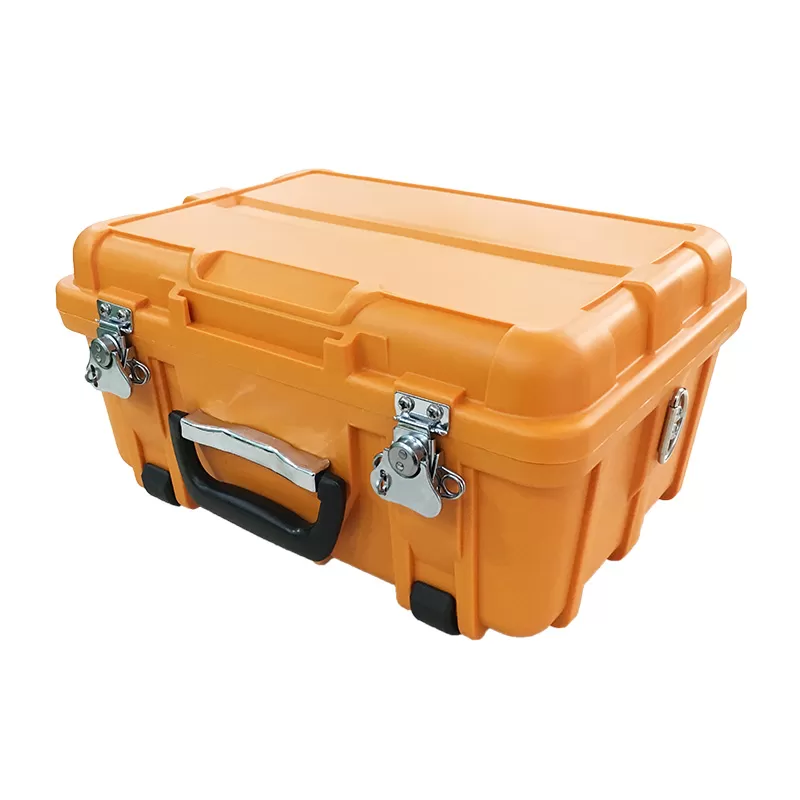

Package	Packed in carton with protection foam, Size 43cm37cm27cm, G.W.6.5kg
