Model Number: 1x16 plc splitter Cassette
Connector Type: SC APC
Tensile strength: ≥200N
Working wavelength: 1310/1550
Plug the number: 1000
Insertion loss: ≤10.5dB
Return loss: ≥55db
Material: PVC
Fiber optic cable splitter is one of the most important passive devices in the optical fiber link. PLC splitter is a single mode splitter with an even split ratio from one input fiber to multiple output fibers, which is ideal for EPON, GPON, FTTH, FTTX network. These splitters are used to distribute or combine optical signals, which are convenient for Telcom operators to split optical signals to multiple homes or businesses. PLC splitter provides a low-cost light distribution solution with small size and high reliability.

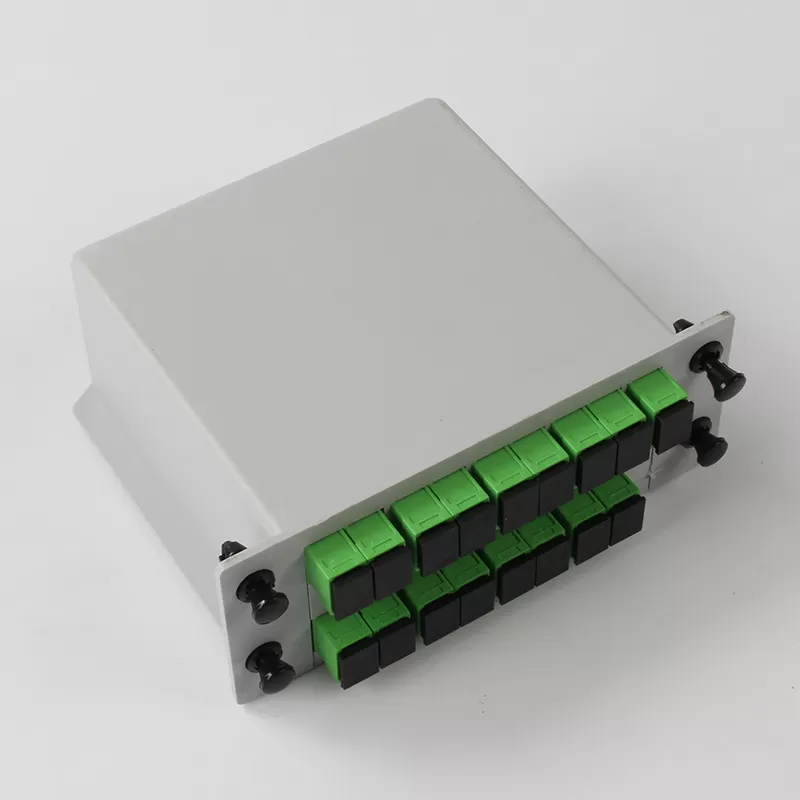

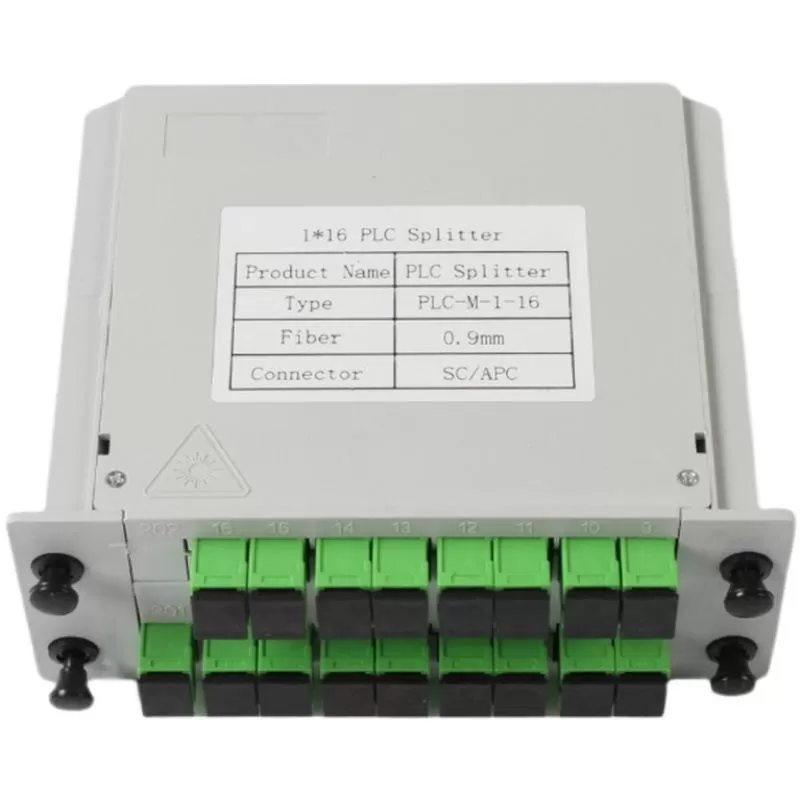

The 1×16 Cassette type PLC fiber splitter is usually installed in the wall mount FTTH box for fiber optical signal distribution.
| Tensile strength | ≥200N |
| Working wavelength | 1310/1550 |
| Plug the number | 1000 |
| The environment temperature | -40~85℃ |
| Insertion loss | 10.8dB |
| Connector type | SC/APC |
| The material | PVC |
