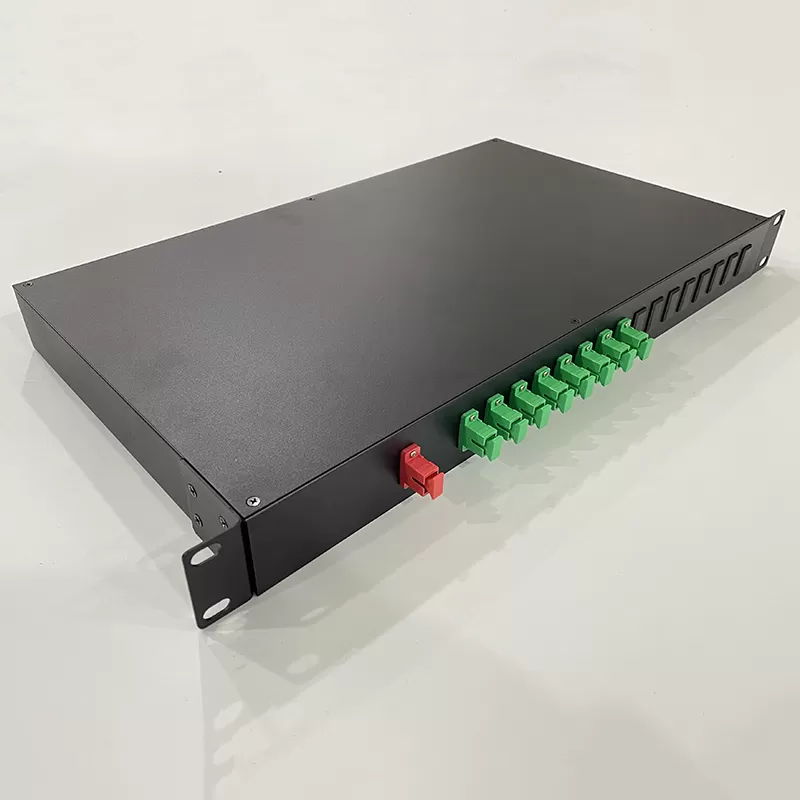

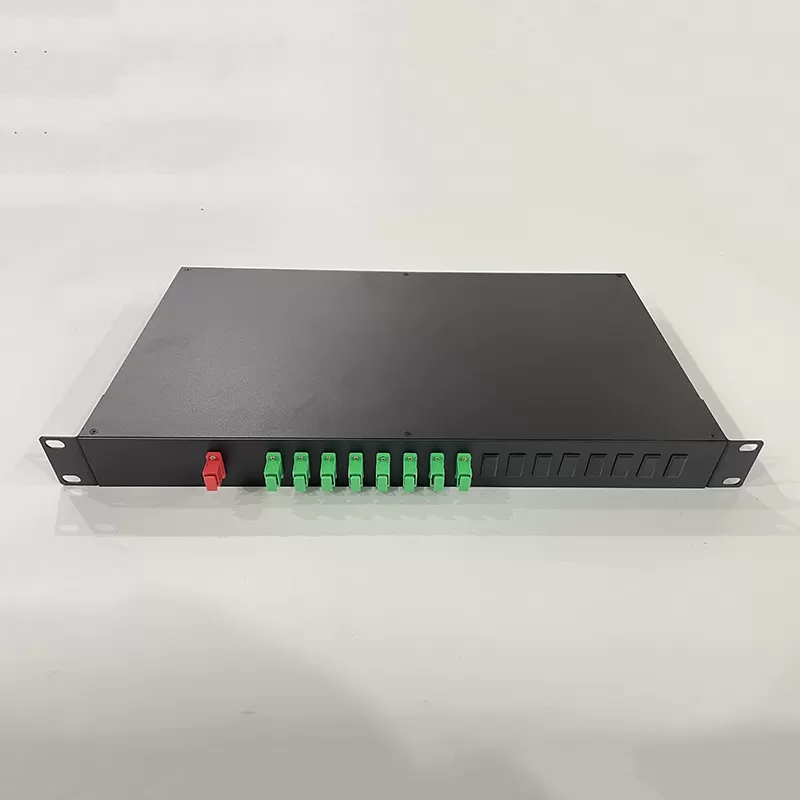

Custom 1x8 Rack Mount PLC Splitter

Description Contact Us

Rack Mount PLC Splitter is a high quality passive device. It is especially for passive internet (EPON, BPON, and GPON). we offers whole series of 1xN and 2xN Rack Mount PLC Splitter, including 1x2,4, 8, 16, 32 and 2x2,4, 8, 16, 32 type, they are available in the flexible form of 1U 19'' rackmountable box and 2U 19'' rackmountable box.

Features:

* Low insertion loss, PDL and high Back Reflection

* Good channel-to-channel uniformity

* Wide Operating Wavelength: From 1260nm to 1650nm

* High Mechanical Stability and Reliability

* Wide Operating Temperature: From -40℃ to 85℃

* Compact package

Application:

* FTTx Networks

* PON Networks

* CATV System

* Data Communication

* Other applications in fiber optic systems

Compliance

* Telcordia GR-1209-CORE-2001

* Telcordia GR-1221-CORE-1999

* RoHS

Specifications

Table 1 – 1 ×N PLC Splitter

Parameters	1x2	1×4	1×8	1×16	1×32	1×64	1×128
OperatingWavelength (nm)	1260～1650
Fiber Type	G657A or customer specified
Insertion Loss (dB) (P/S Grade) Max.	4.1/4.3	7.4/7.6	10.5/ 10.8	13.8/ 14	16.8/ 17.2	20.8/21.3	23.8/24.2
Loss Uniformity(dB) Max.	0.6	0.6	0.8	1.2	1.5	2.0	2.5
Return Loss (dB)Min.	55	55	55	55	55	55	55
PolarizationDependentLoss(dB) Max.	0.2	0.2	0.3	0.3	0.3	0.4	0.5
Directivity (dB)Min.	55	55	55	55	55	55	55
WavelengthDependentLoss(dB) Max.	0.5	0.5	0.5	0.8	0.8	1.0	1.2
OperatingTemperature (℃)	-40～85
StorageTemperature (℃)	-40～85
Dimension (mm)(L×W×H)	482×200 ×44.5	482×200 ×44.5	480×200 ×44.5	480×200 ×44.5	480×200×44.5	480×200×44.5	N/A

Notes:

1. Specified without adapter.

2. Add an additional 0.2dB loss per adapter.

3. Performances and structure can be customized.
