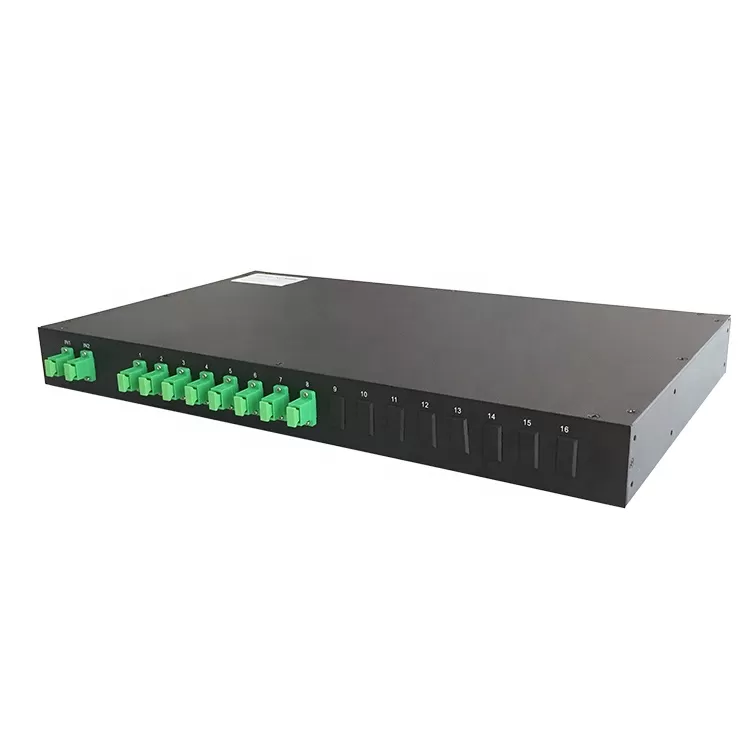

Model Number: 2x8 Rack Mount PLC Splitter
Wavelength: 1260-1650nm
Connector type: SC APC
Operating temperature: -40 ~ +85℃
Package: 39.5*31.5*6.5cm

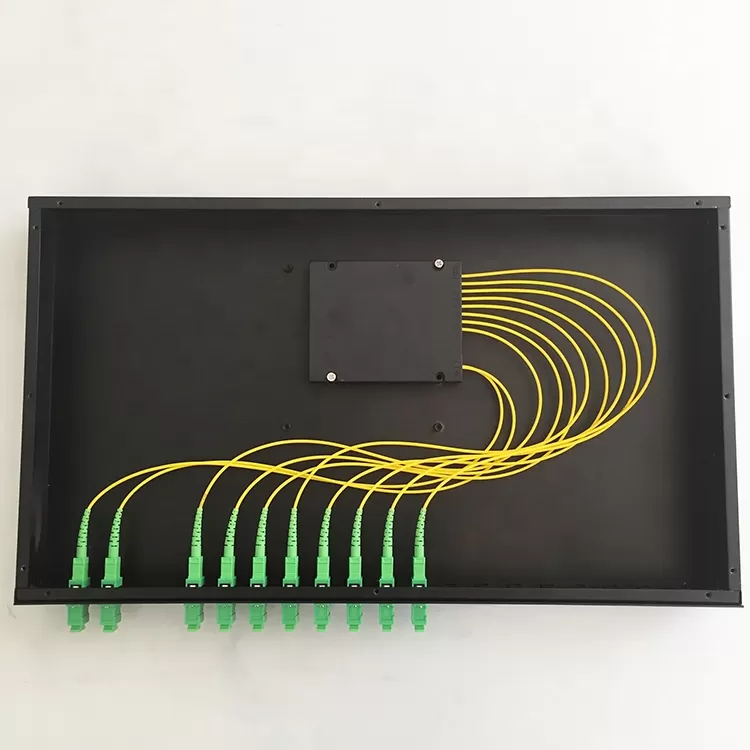

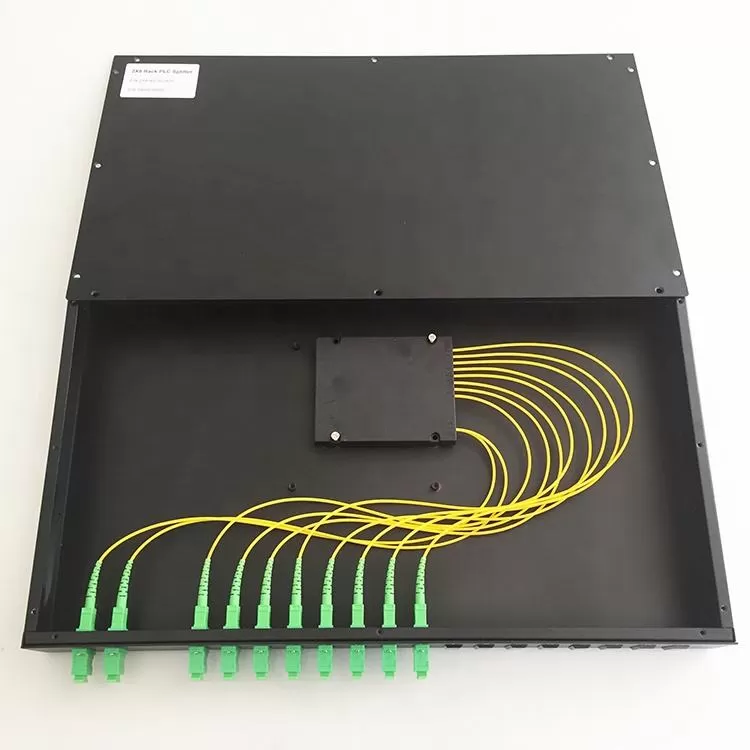

Rack Mount PLC Splitter is a high quality passive device. It is especially for passive internet (EPON, BPON, and GPON). we offers whole series of 1xN and 2xN Rack Mount PLC Splitter, including 1x2,4, 8, 16, 32 and 2x2,4, 8, 16, 32 type, they are available in the flexible form of 1U 19'' rackmountable box and 2U 19'' rackmountable box.
Features:
* Low insertion loss, PDL and high Back Reflection
* Good channel-to-channel uniformity
* Wide Operating Wavelength: From 1260nm to 1650nm
* High Mechanical Stability and Reliability
* Wide Operating Temperature: From -40℃ to 85℃
* Compact package
Application:
* FTTx Networks
* PON Networks
* CATV System
* Data Communication
* Other applications in fiber optic systems
Compliance
* Telcordia GR-1209-CORE-2001
* Telcordia GR-1221-CORE-1999
* RoHS
Specifications
Table 1 – 1 ×N PLC Splitter
| Parameters | 1x2 | 1×4 | 1×8 | 1×16 | 1×32 | 1×64 | 1×128 |
| OperatingWavelength (nm) | 1260～1650 | ||||||
| Fiber Type | G657A or customer specified | ||||||
| Insertion Loss (dB) (P/S Grade) Max. | 4.1/4.3 | 7.4/7.6 | 10.5/ 10.8 | 13.8/ 14 | 16.8/ 17.2 | 20.8/21.3 | 23.8/24.2 |
| Loss Uniformity(dB) Max. | 0.6 | 0.6 | 0.8 | 1.2 | 1.5 | 2.0 | 2.5 |
| Return Loss (dB)Min. | 55 | 55 | 55 | 55 | 55 | 55 | 55 |
| PolarizationDependentLoss(dB) Max. | 0.2 | 0.2 | 0.3 | 0.3 | 0.3 | 0.4 | 0.5 |
| Directivity (dB)Min. | 55 | 55 | 55 | 55 | 55 | 55 | 55 |
| WavelengthDependentLoss(dB) Max. | 0.5 | 0.5 | 0.5 | 0.8 | 0.8 | 1.0 | 1.2 |
| OperatingTemperature (℃) | -40～85 | ||||||
| StorageTemperature (℃) | -40～85 | ||||||
| Dimension (mm)(L×W×H) | 482×200 ×44.5 | 482×200 ×44.5 | 480×200 ×44.5 | 480×200 ×44.5 | 480×200×44.5 | 480×200×44.5 | N/A |
Notes:
1. Specified without adapter.
2. Add an additional 0.2dB loss per adapter.
3. Performances and structure can be customized.
