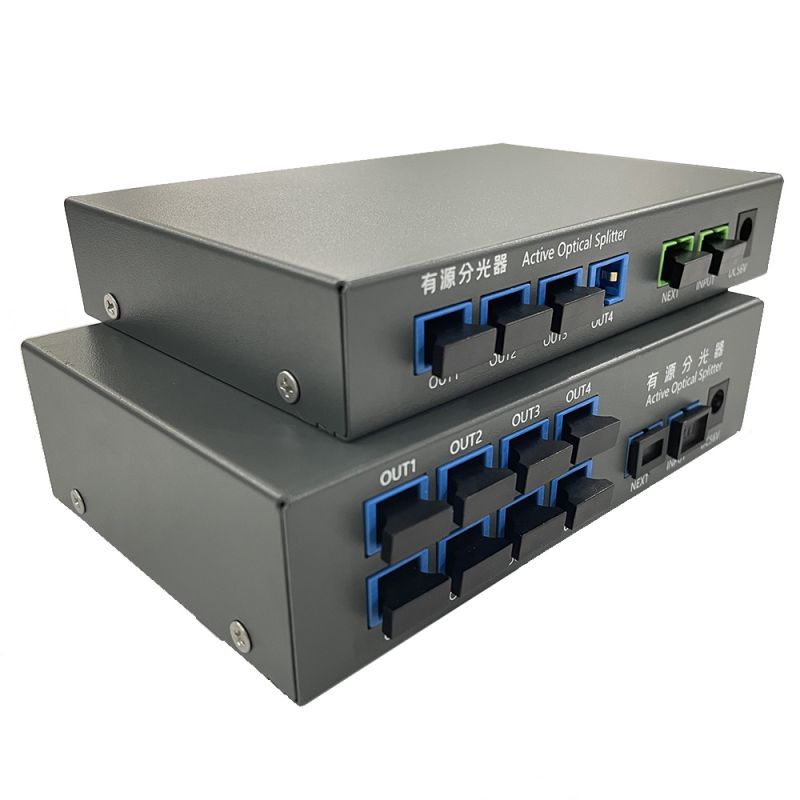

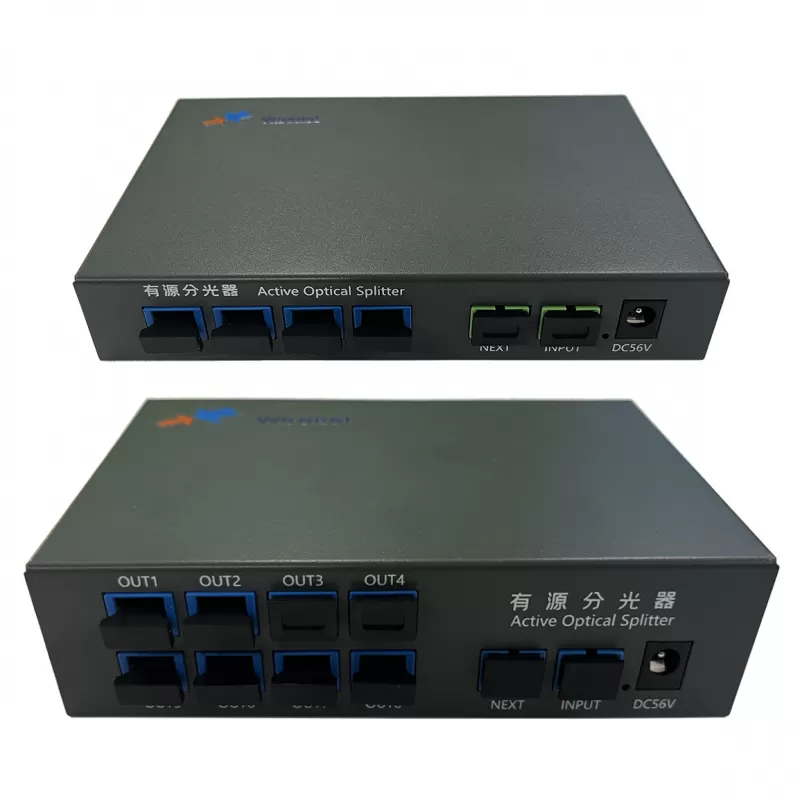

POF System 4 8 Port Active Optical Splitter FTTR Optical and Electronic Integrated Remote Supply Equipment for CATV WIFI

Active optical splitter, commonly known as optical socket, is a network device that integrates optical signal distribution and POF power distribution.

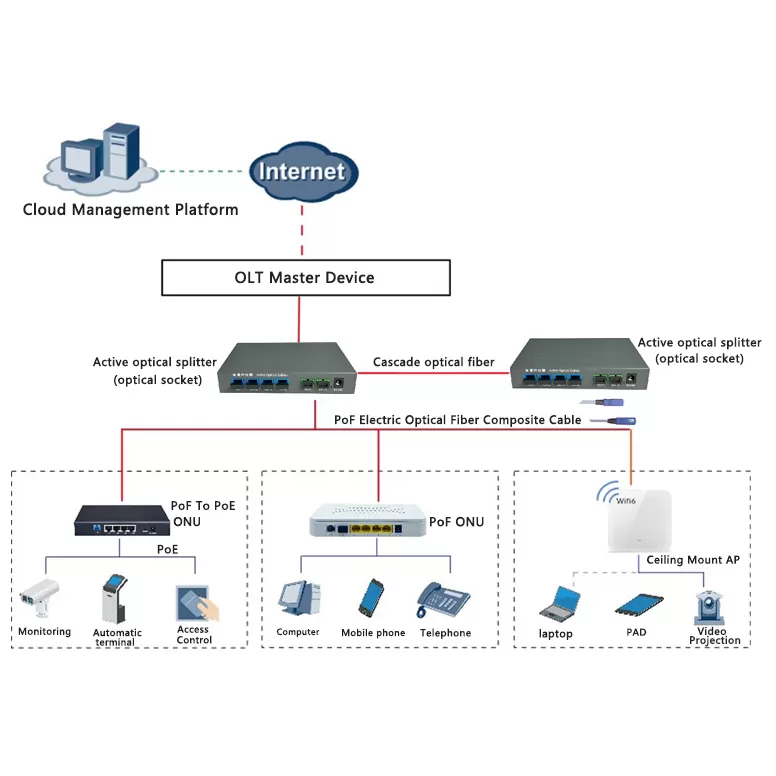

It is used to connect optical fiber master equipment and optical fiber slave equipment in an all-optical network. It is configured with a standard POE protocol and can protect and manage terminal powered equipment.

Features

* Standard SC optical-electric hybrid interface;

* 1:5 or 1:9 unequal ratio splitting, multi-stage cascading;

* Provide line short circuit detection and protection;

* Port overload circuit breaker protection (single port maximum 30W);

* 4KV lightning protection;

* Positive and negative pole reverse connection protection;

* Automatically detect and configure the output power of each port;

* External 48~57V power supply, power supply power can be selected;

PoF System
