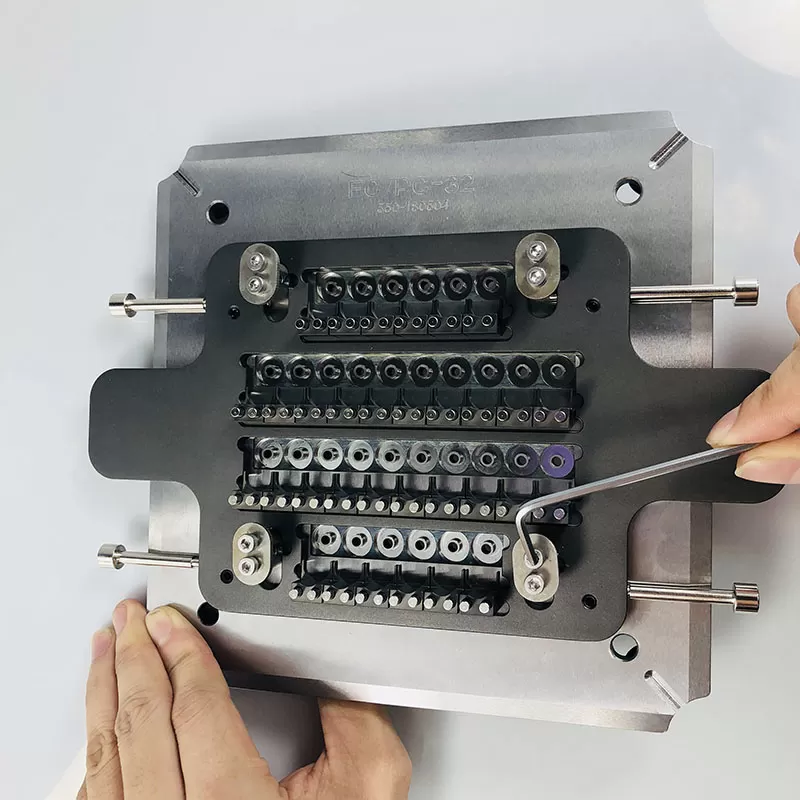

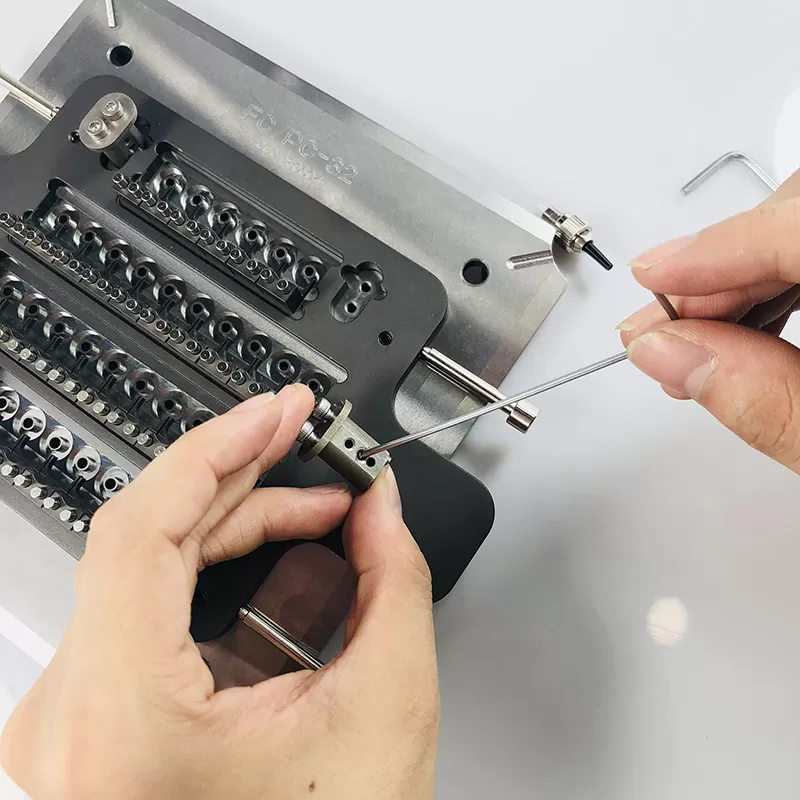

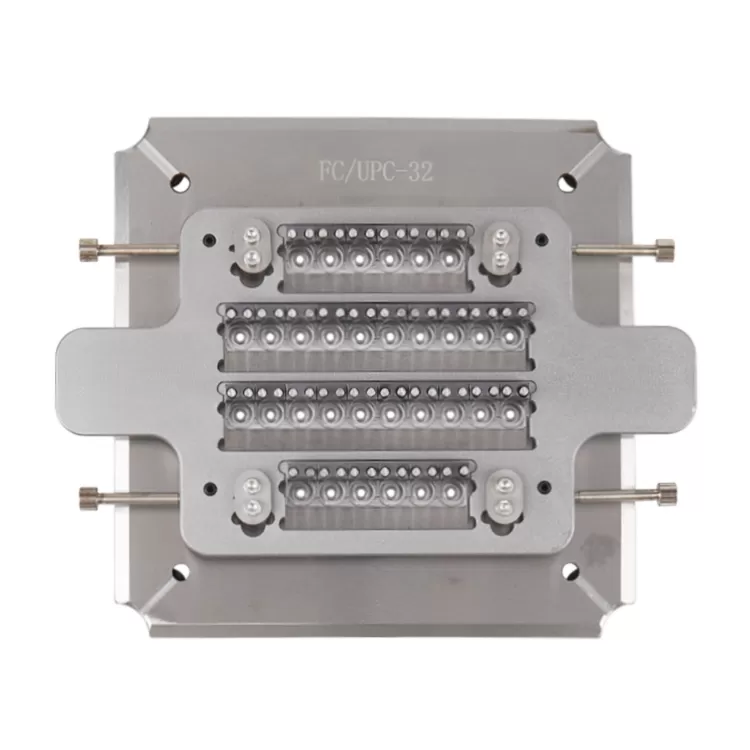

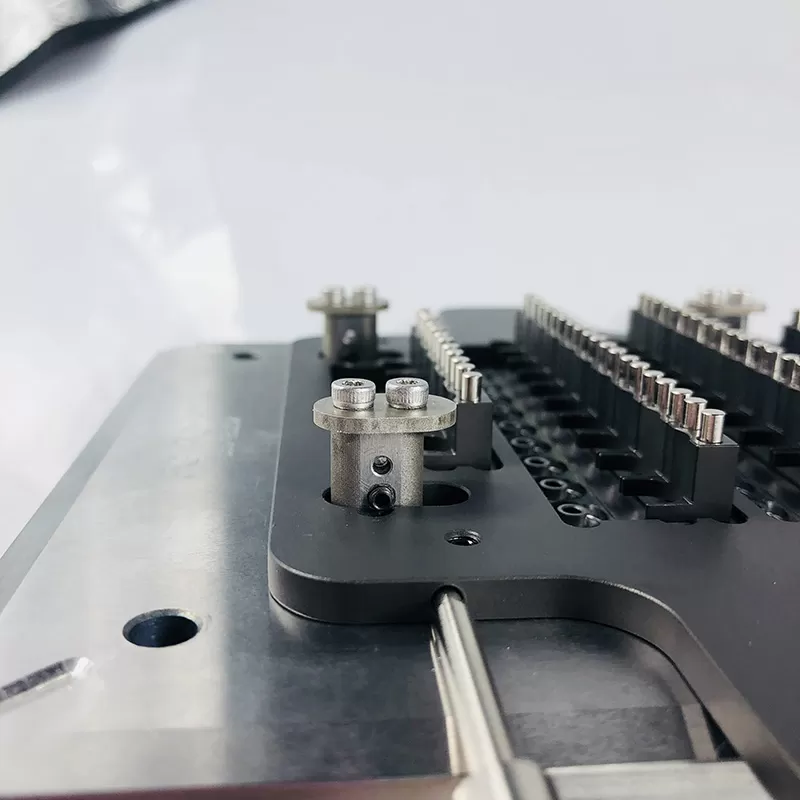

Model Number: FC UPC fast polishing jig
Connector type: FC UPC
Connector positions: 32
Type: Four conrner/square pressure
Dimensions: 174mm*174mm*26mm
Weight: 1.5kg
Material: Hardened stainless steel S136
Description:
1. Stainless steel 304 material.
2. Used for square pressure polishing machine.
3. Suitable for FC/UPC connector polishing style.
4. 32 positions for connector head.
5. Polishing 32 connector a time.
Main feature:
1. Special designed for FC/UPC connector polishing.
2. Designed for high volume applications
3. Good quality and high production efficiency
4. Can be customized according by customer requirement
5. Quick change tooling, super centering accuracy
6. Excellent end face geometry, Utilizes I.P.C. Holder technology
7. Eliminate ferrules show the different length effects on polishing
8. Plug of polishing jig can be interchanged to extend polishing fixture’s
