9/125 OS2 Singlemode Duplex LC Uniboot Fiber Optic Patch Cord

9/125 OS2 Singlemode Duplex LC Uniboot Fiber Optic Patch Cord

Model Number:lc uniboot patch cord

Product type:lc om3 patch cord

Nominal Outer Diameter:2.0mm/3.0mm

Jacket type:PVC, LSZH

Number of Conductors:1F/2F/4F/6F/other


share:

Description Contact Us

Applications:

---CATV; Active device termination;
---Telecommunication networks;
---Metro;
---Local Area Networks;
---Data processing networks;
---Test equipment;
---Premise installation;
---Wide Area Networks.



Features:

---Low insertion and back reflection loss;
---Good exchangeability;
---Good durability;
---High temperature stability;
---Standard: TelcordiaGR-326-CORE.

9/125 OS2 Singlemode Duplex LC Uniboot Fiber Optic Patch Cord

Title goes here.

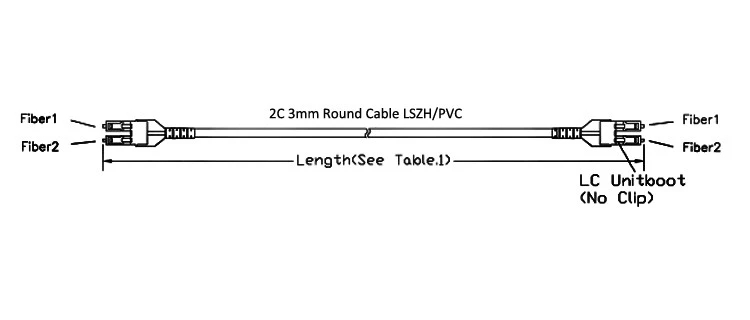

1.Connector A :LC SM/MM uniboot connector , housing,boot, shrinkable tube, with clip
2.Connector B : LC SM/MM uniboot connector , housing, boot, shrinkable tube,with clip
3.Cable: 2C 3mm round cable ,LSZH /PVC
**Length= Can be customized


Items
Single mode
Multimode
PC
UPC
APC
62.5/125
50/125
50/125 10G
Insertion Loss
<0.2dB
<0.3dB
Return Loss
≥45dB
≥50dB
≥60dB
 ≥35dB
Durability
<0.1dB typical change,
500 matings
Operating Temperature
-40 to +75
-40 to +75
Ferrule Hole Sizes
125.0+1/-0um, Conentricity:≤1um
125um,Conectricity:1≤3um
125.3+1/-0um, Conentricity:≤1um
127um,Conectricity:1≤3um
125.5+1/-0um, Conentricity:≤1um
128um,Conectricity:1≤3um
126.0+1/-0um, Conentricity:≤1um
