Nominal Outer Diameter: 2.0mm/3.0mm
Connector: LC Uniboot
Jacket type: PVC, LSZH
Number of Conductors: 1F/2F/4F/6F/other
share:
Application:
1,CATV; Active device termination;
2,Telecommunication networks;
3,Metro;
4,Local Area Networks;
5,Data processing networks;
6,Test equipment;
7,Premise installation;
8,Wide Area Networks.
Characteristics:
1,Low insertion and back reflection loss;
2,Good exchangeability;
3,Good durability;
4,High temperature stability;
5,Standard: TelcordiaGR-326-CORE.

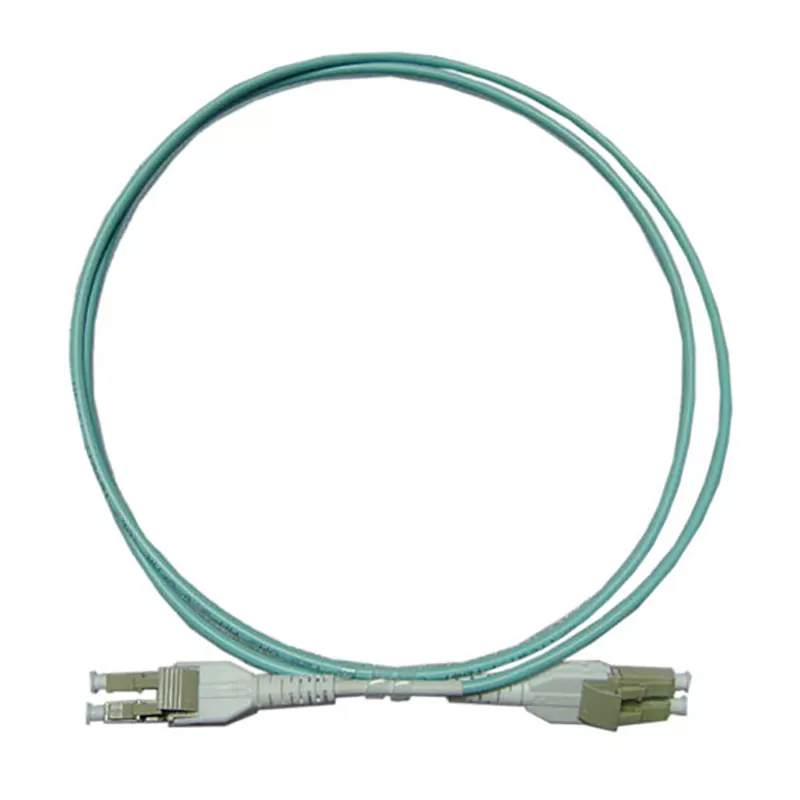

Specification for Multimode fiber optic patchcord

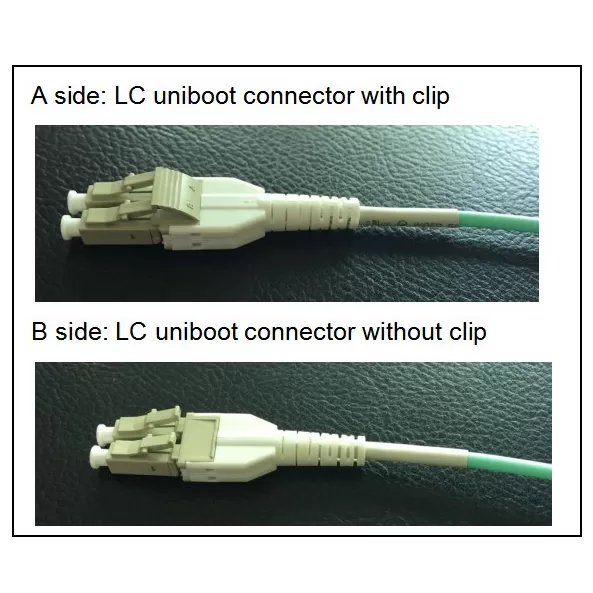

① Connector A :LC/MM uniboot connector ,beige housing,white boot,white shrinkable tube, with beige clip
② Connector B : LC/MM uniboot connector ,beige housing,white boot,white shrinkable tube, no clip
③ Cable: 2C 3mm round cable ,LSZH aqua OM3-300 fiber
**Length= Can be customized
Durability: <0.1dB typical change,1000 repeatability

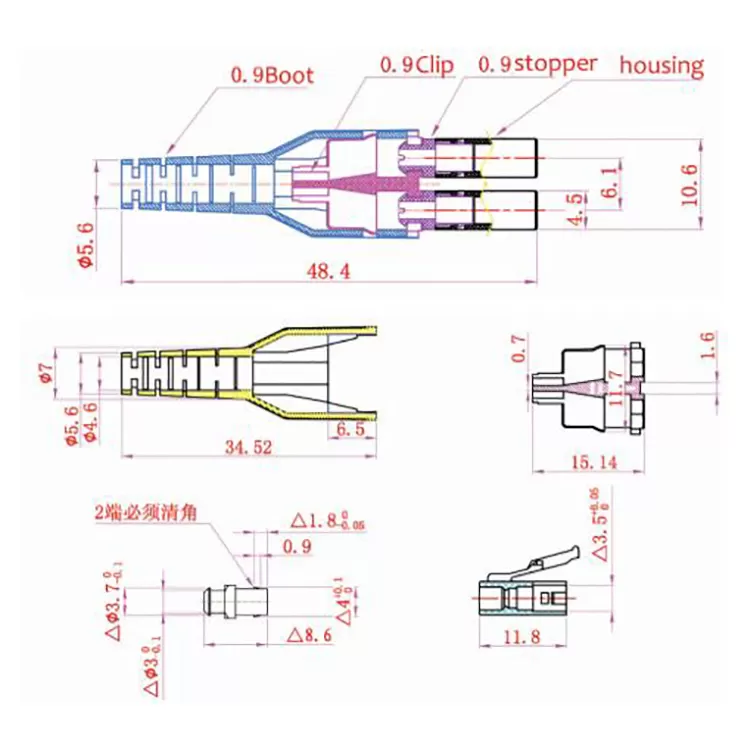

Connector specification
Cable specification:
LC Unitboot Patchcord Parameter
Muliti mode fibers (OM3-300 50/125)
Test wavelength: 850/1300nm
Insertion Loss (Max): -0.3dB
Return Loss (RL): >35dB
LC Unitboot Patchcord Application
Adopted to indoor distribution..
As pigtail of communication equipment.
Suitable for communication equipment served.
Can be installed conveniently and perated simply.
LC Unitboot Patchcord Characteristics
Soft and easy to strip
Hight strength kevlar yarn member.
Steel armored flexble tube.increase the cable's twist resistance.
LC Unitboot Patchcord Technical Parameters
