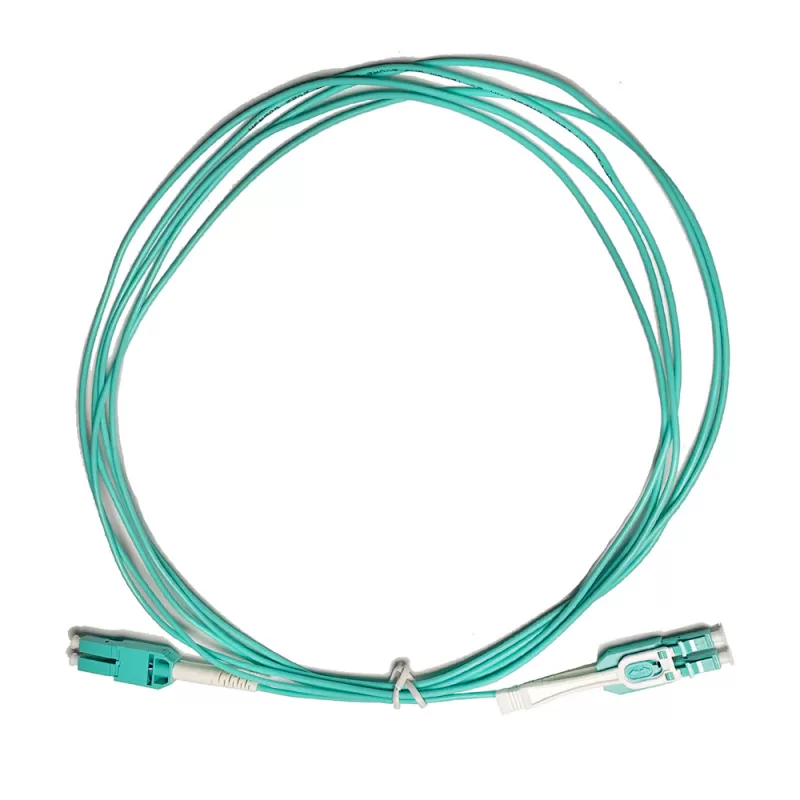

OM4 LC UPC Uniboot Fiber Optic Patch Cord With push pull tabs

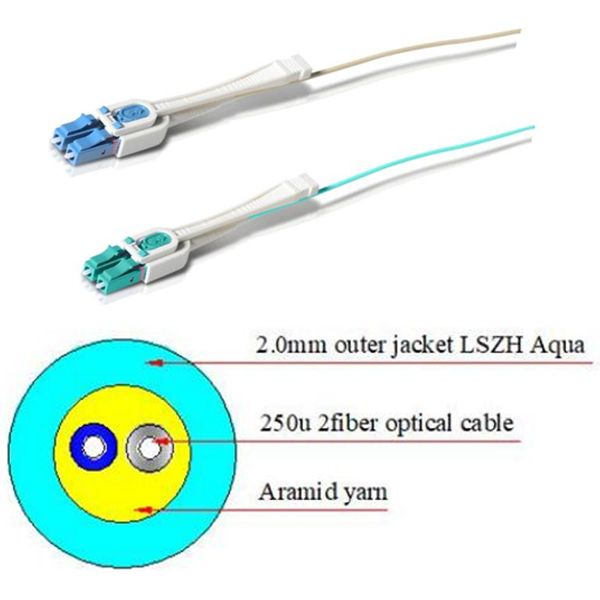

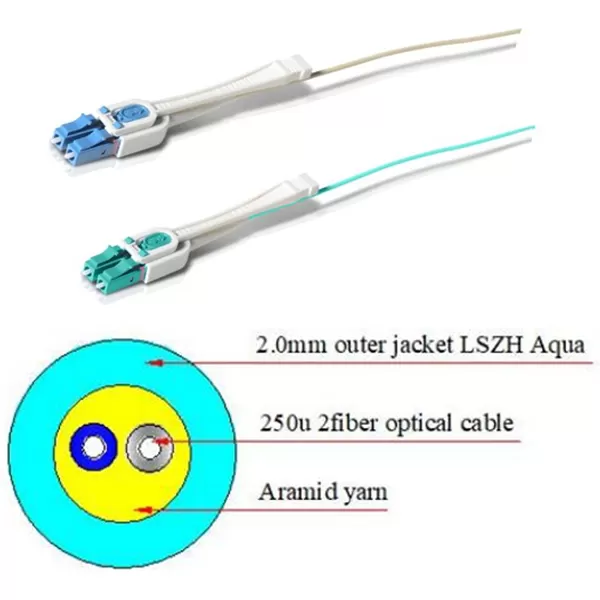

Cable Structure

Features

* Uniboot with a Single Housing

* Unique Push-Pull Design and Function

* Interchangeable polarity

* Low insertion loss and added loss.

* Height of attenuation.

* High back loss, small volume, light weight.

* End-face geometry and quality superior than IEC and Telcordia standards.

* LSZH, OFNP, OFNR cable jacket.

* Mechanical performance: IEC 61754-20 standard.

* RoHS and REACH materials compliant.

Applications

 * Data Centers

 * Local Area Networks

 * High-Density Applications

 * Interconnects

 * Cross-connects

Product schematic diagram

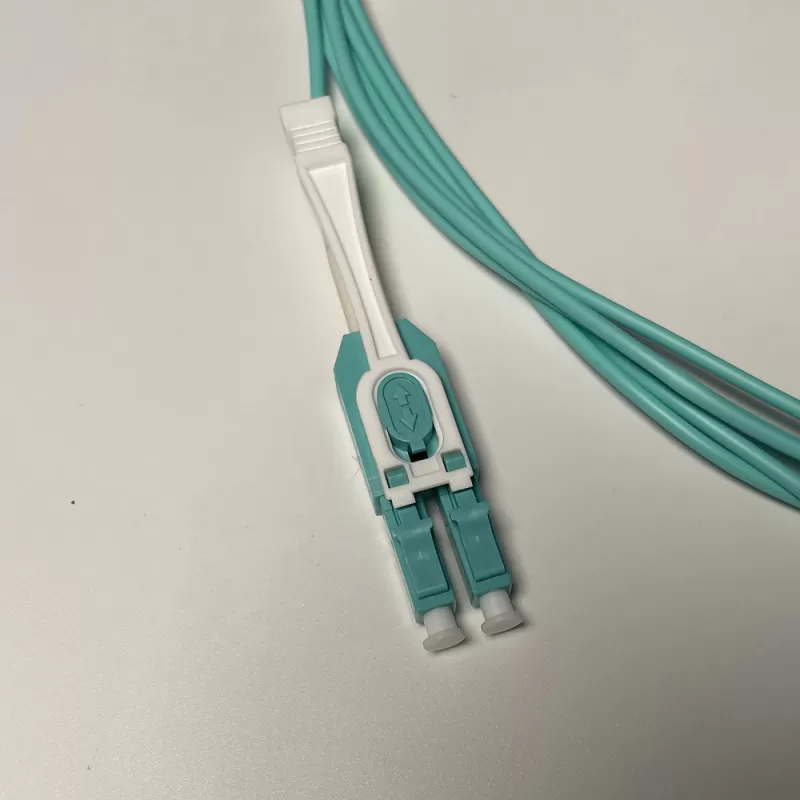

LC Uniboot Push-Pull (Switch Polarity) 2.0mm patchcord

Connector Types

Patch cord versions

Polarity Overview

        Two types of duplex fiber patch cords are defined in the TIA standard: A-to-A type shown in Figure 1 and A-to-B type shown in Figure 2.
        Note: A-to-A patch cords are not commonly deployed and should be used only when necessary as part of a polarity method (See ANSI/TIA-568-C.0)

Mechanical Characteristics
