1mw 10mw 20mw 30mw 50mw Visual Fault Locator VFL with 2.5mm adapter

1mw 10mw 20mw 30mw 50mw Visual Fault Locator VFL with 2.5mm adapter

Model Number: WT-PS-VFL

Connector Type: 1.25mmm/2.5mm

Wavelength: 650nm

Laser safety class: 2

Operation mode: Pulsed and CW

Batteries: 2 AA

share:

Description Contact Us

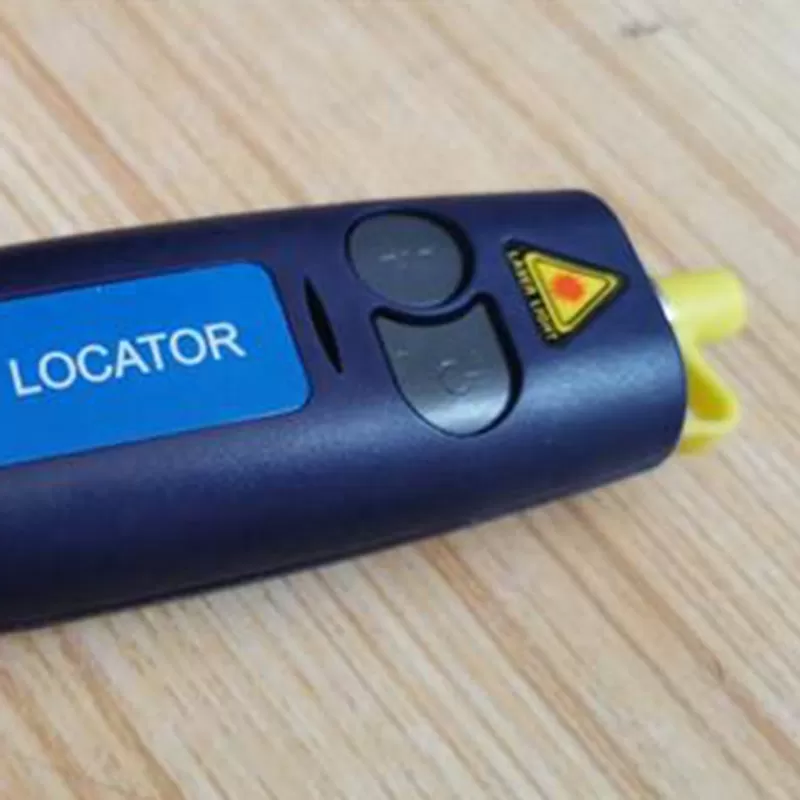

      Pocket-Size Visual Fault Locator Kit - Includes: PS-VFL, 2 AA Batteries, LC-ADA LC 1.25mm Adapter (sold seperately). This pocket style VFL is specially designed for field personnel who need a portable light source tool for fiber tracing, fiber routing, continuity testing, to locatebreakpoints (bending or cracking in fiber optic cables),and poor connections.
      WT-PS-VFL works on FC, SC, ST connectors and will work on LC connectors when used with the included LC-ADA LC adapter. The VFL works in an OTDR dead zone and is used for end-to-end visual fiber identification. Operates in either CW (continuous wave)or pulsed mode. Not recommended For use on dark colored or armored cables.

1mw 10mw 20mw 30mw 50mw Visual Fault Locator VFL with 2.5mm adapter

Features

• Quickly and easily locate damages in optical fiber, Operates either in CW or Pulsed, 650nm 1mW.

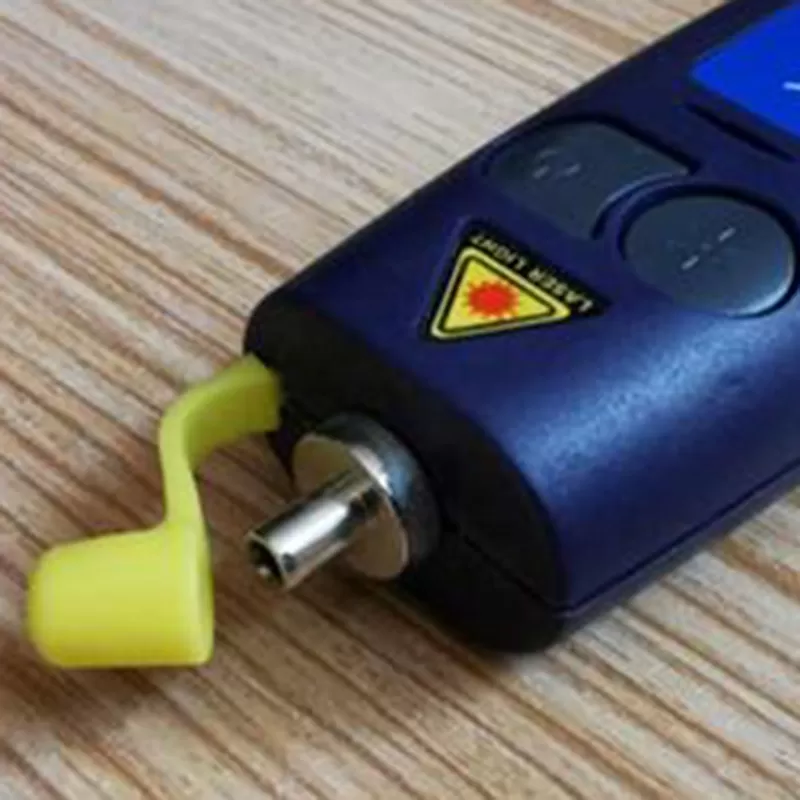

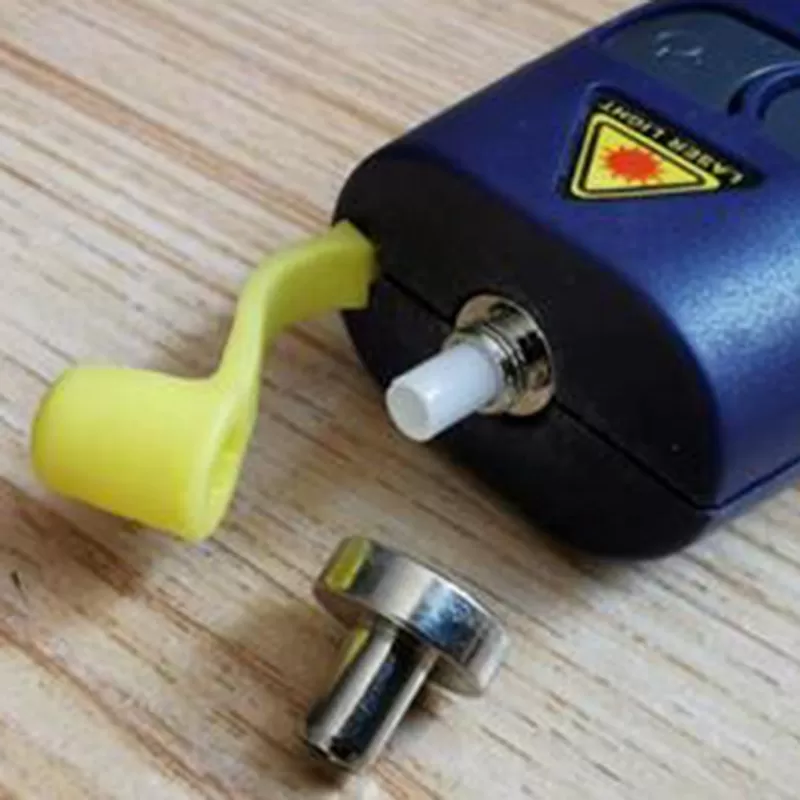

• 2.5mm Universal connector (1.25mm adapter available)
• High powered laser (1mW) for single-mode (>7km) and multi-mode(>5km) connectors
• Soft-sided carrying case with belt loop
• Compact, ergonomic design for ultimate portability , Protective rubber end cap
• Output Power 5mW / 10mW / 20mW /30mW available

Fiber Connector
FC, LC, SC, ST (1.25mm adapter for LC sold separately)
Light Source
Class IIIA Laser Diode
Wavelength
650nm
Storage Temperature
40 Fahrenheit (-40 Celsius) to 185 Fahrenheit (85 Celsius)
Working Temperature
-40 Fahrenheit (-20 Celsius) to 140 Fahrenheit (60 Celsius)
Batteries
2 AA
Weight
0.335 kg
